300 Shopfront Suite

300 SHOPFRONT SUITE 76x35
Lengths of 6.5 & 1m

Product	Description	Item Code

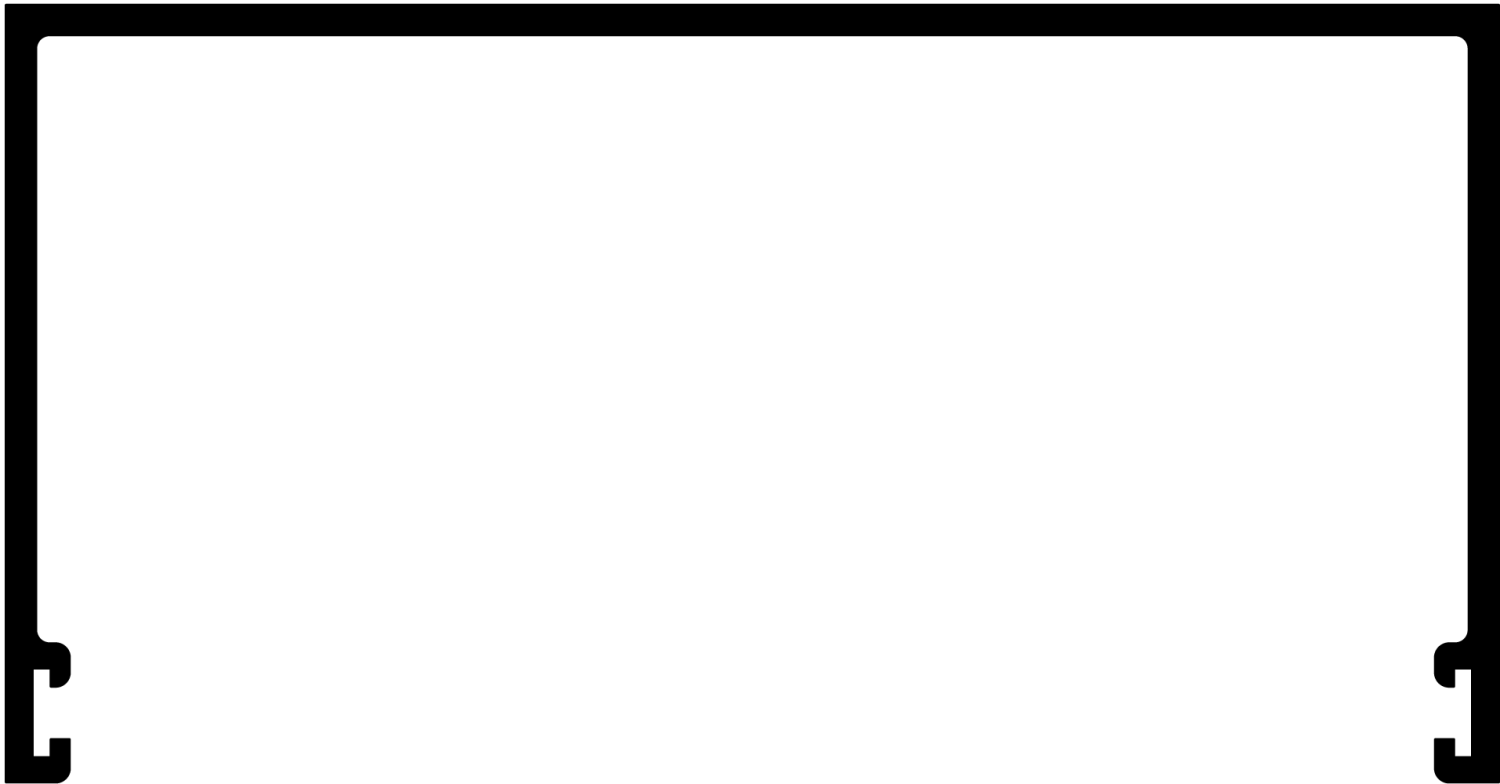

300 86.5mm x 45mm	Subhead Accepts 301	300

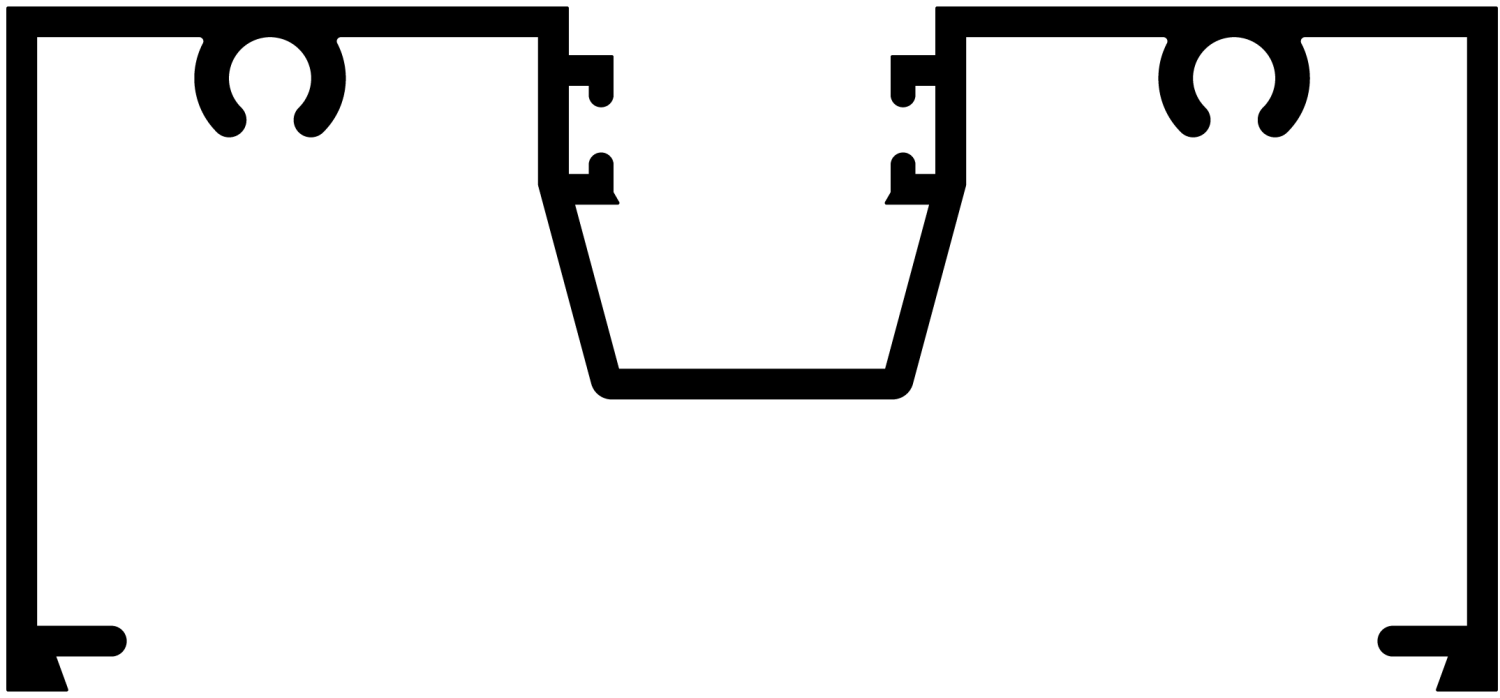

301 76.4mm x 35mm	Mainframe Accepts 300, 302, 307, 309, 311, 313, 315 6.38 glass P40 both sides, 10.38 glass P41 both sides, 12.38 P41 one side only	301

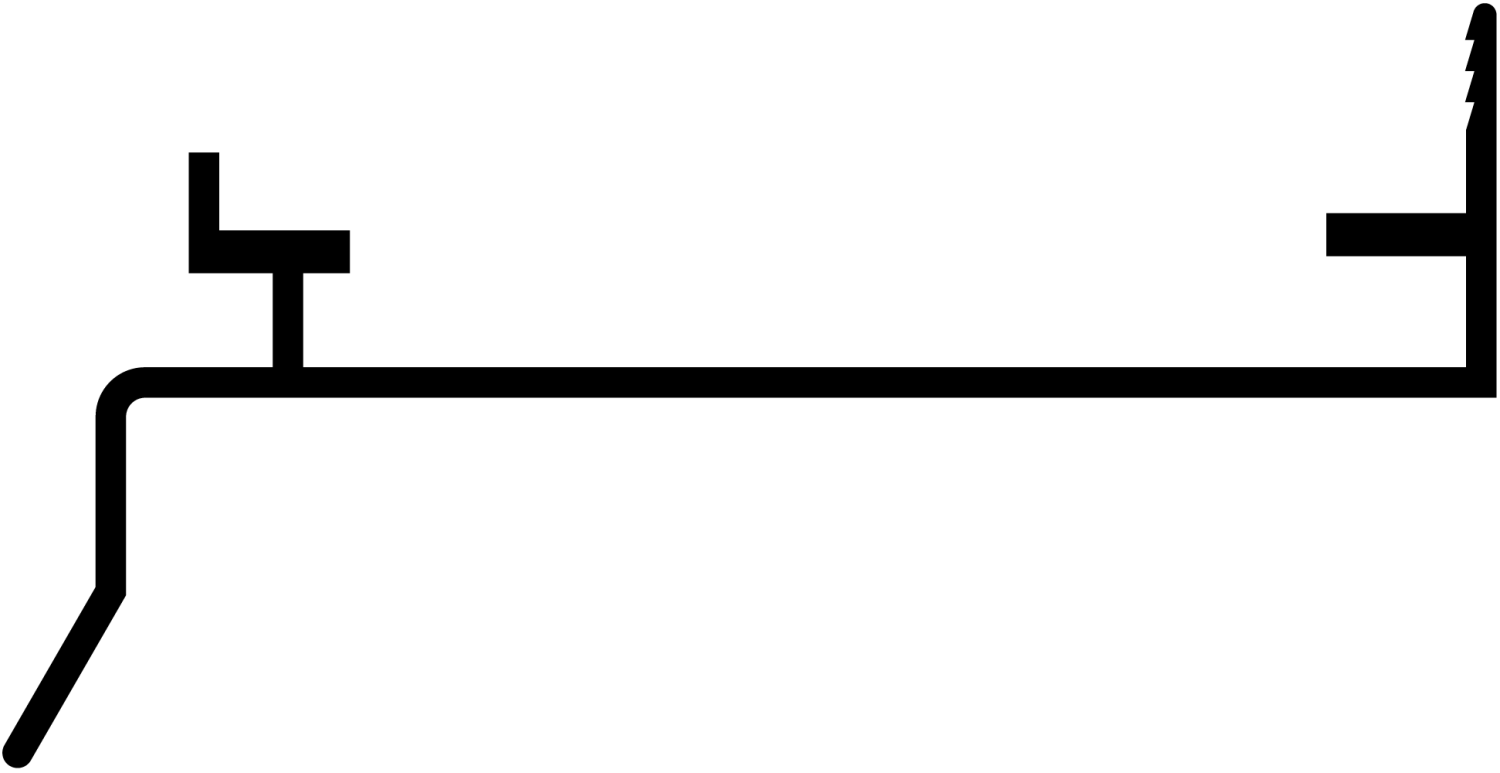

302 95.8mm x 50mm	Sub sill Accepts 301, 303, 312, 316	302

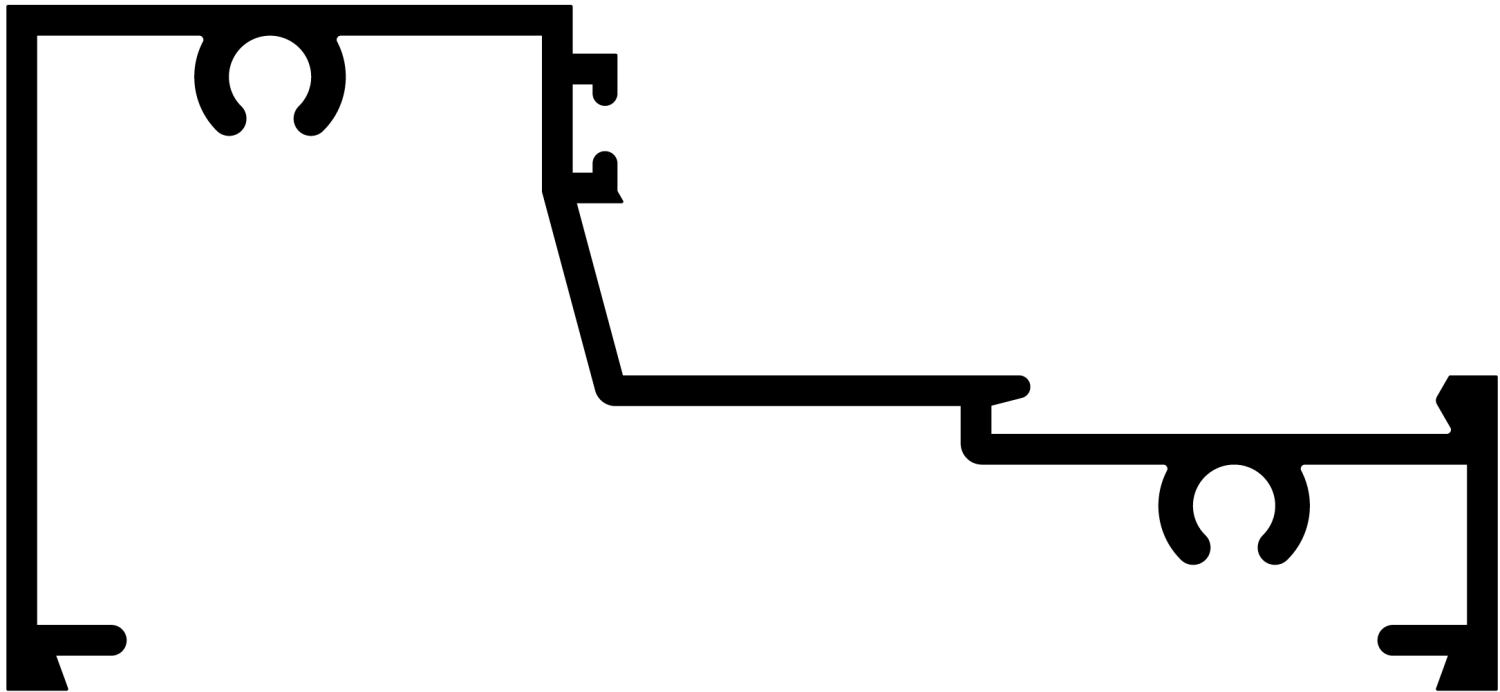

303 76.4mm x 35mm	Sill Accepts 305, 302, 309, 311 6.38 glass P40 both sides, 10.38 glass P41 both sides, 12.38 glass P41 one side only	303

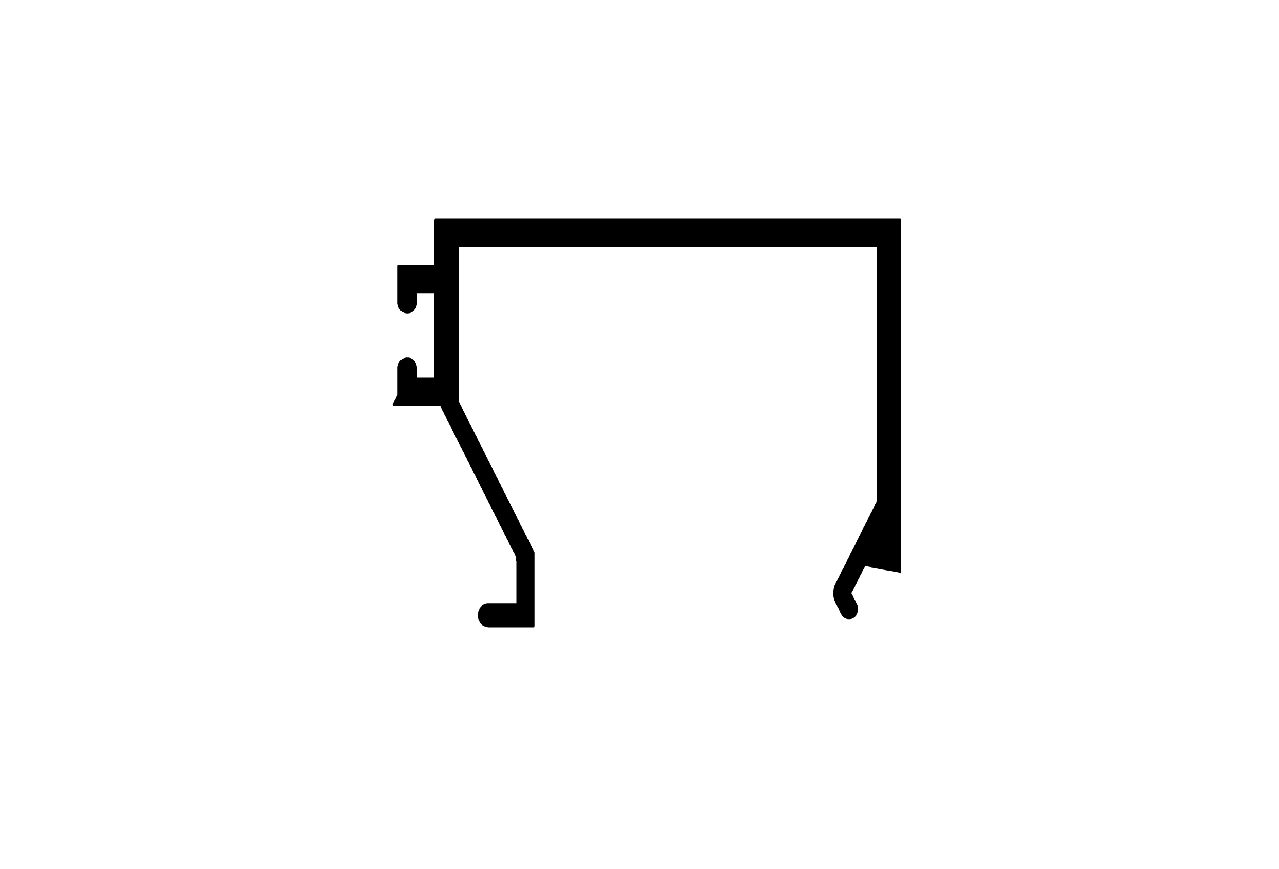

305 30mm x 19mm	Bead Accepts 303	305

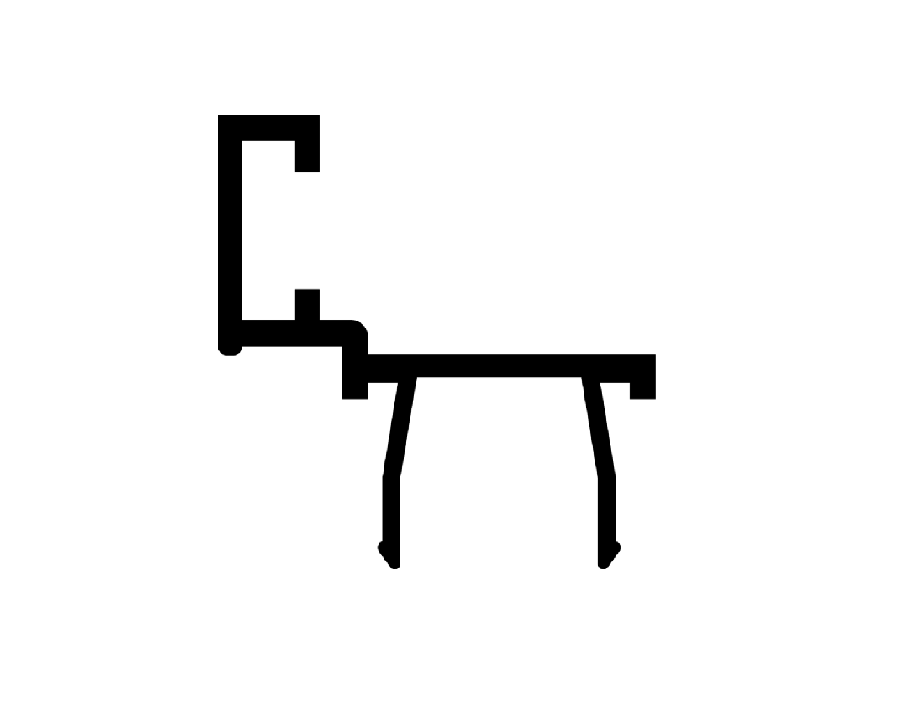

307	Door Stop Accepts 45mm thick door 301, 309, 316	307

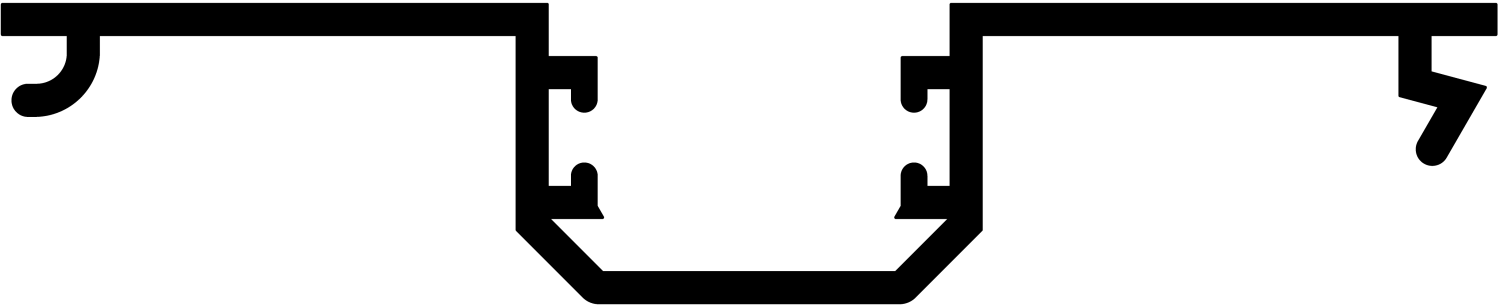

309 70.2mm x 14mm	Glazing Adaptor Accepts 301, 303, 307, 313, 315, 316	309

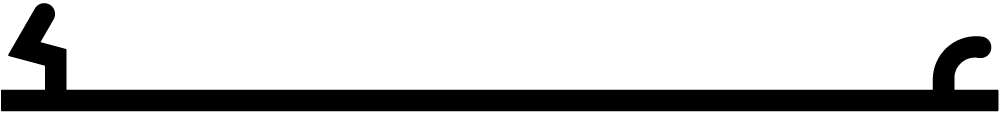

311 70.2mm	Flush Plate Accepts 301, 303, 316	311

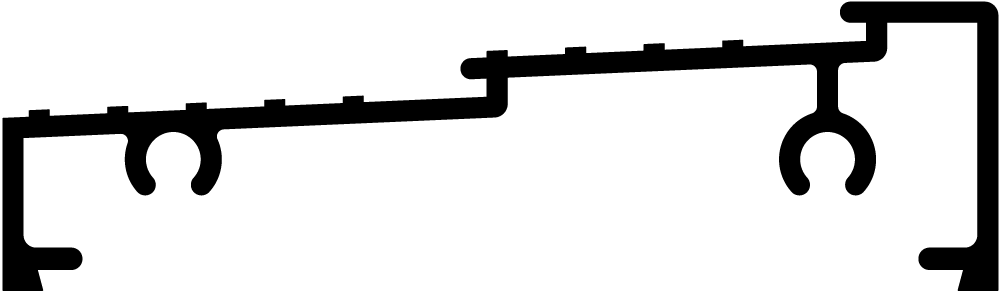

312 76mm x 22mm	Threshold	312

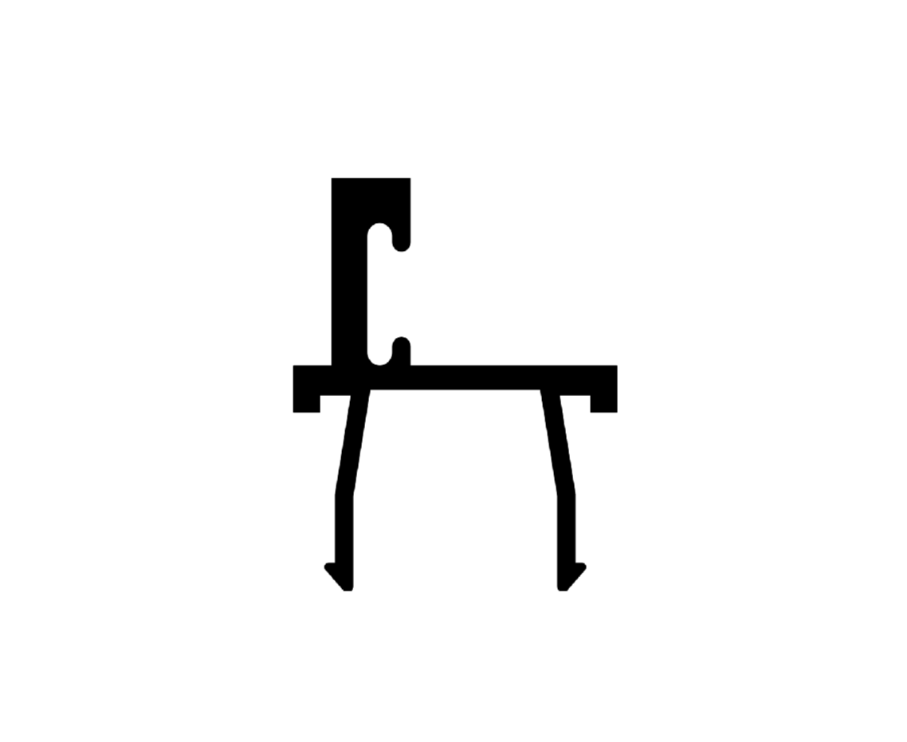

313	Door Stop Accepts 35mm thick door 301, 309, 316	313

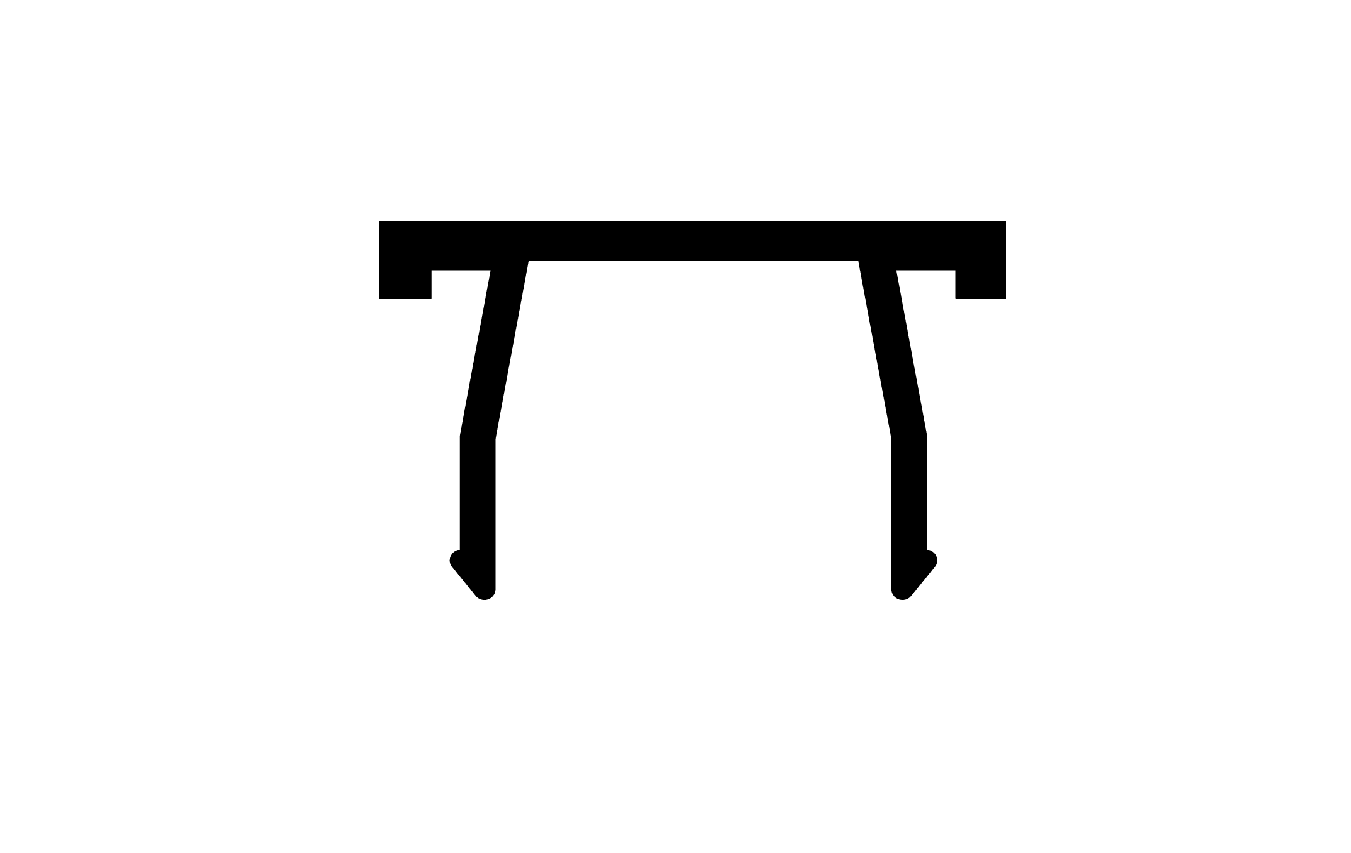

315	Pocket Filler Accepts 301, 309, 316	315

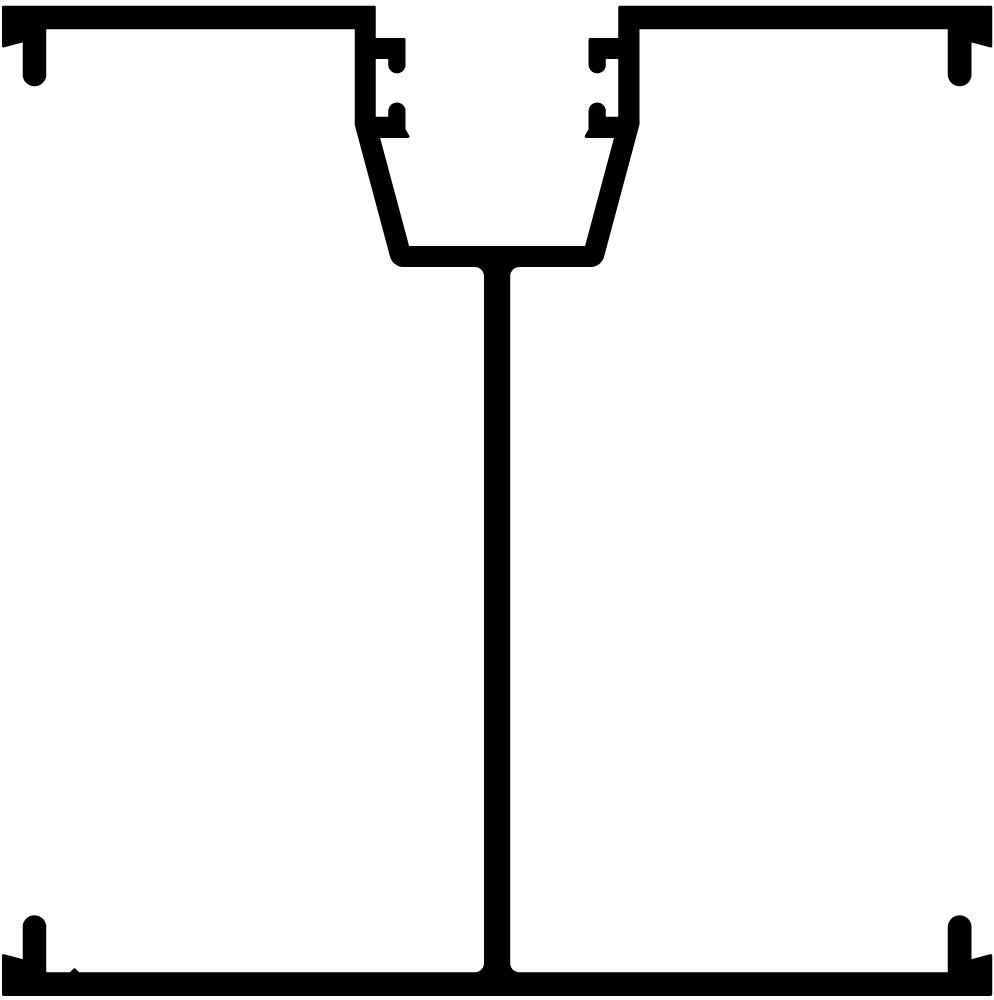

316 76.4mm x 76.4mm	Corner Post Accepts 300, 302, 307, 309, 311, 313, 315 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 P41 one side only	316
