35mm ALUMINIUM DOOR SUITE
Lengths .85, 2.16, 3.25, 6.50

Product	Description	Item Code

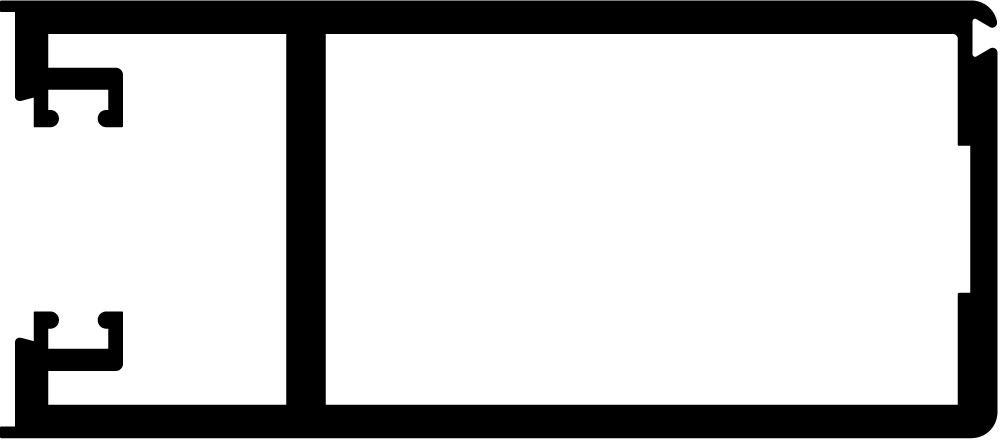

35L 35mm x 80mm	Lock Stile Accepts 35R, 35M, 35S 6.38 glass P40 both sides 10.38 glass P41 both sides	35L21 35L32 35L65

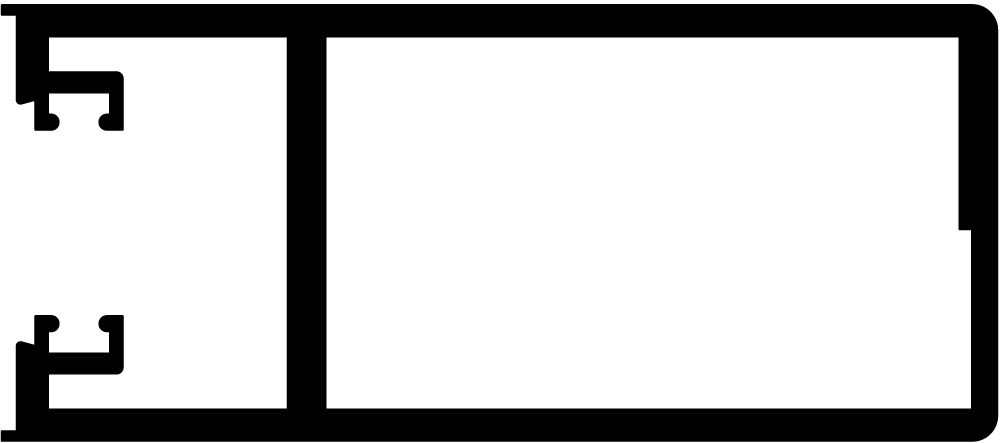

35H 35mm x 80mm	Hinge Stile Accepts 35R, 35M, 35S 6.38 glass P40 both sides 10.38 glass P41 both sides	35H21 35H32 35H65
35SL 35mm x 80mm	Sliding Stile Accepts 35R, 35M, 35S 6.38 glass P40 both sides 10.38 glass P41 both sides	35SL21 35SL32 35SL65

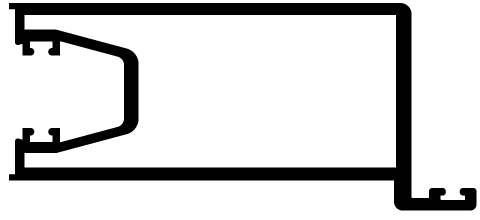

35MS 35mm x 80mm	Meeting Stile Accepts 35R, 35M, 35S 6.38 glass P40 both sides 10.38 glass P41 both sides	35MS21 35MS32 35MS65

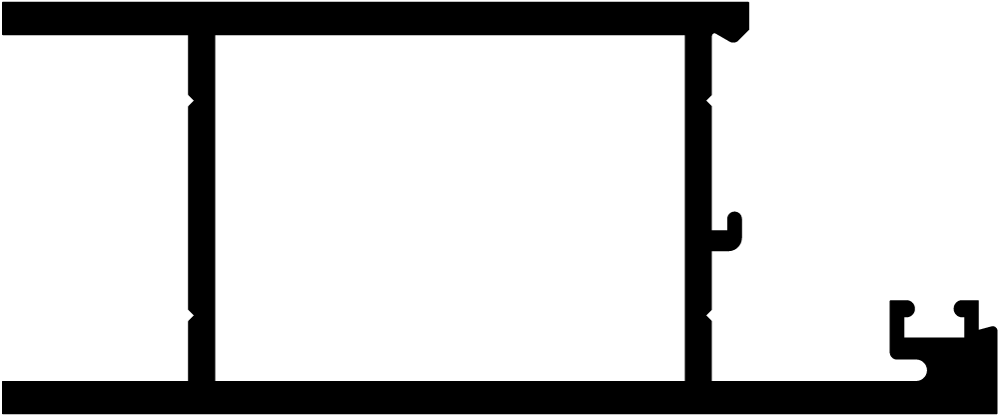

35R 32mm x 80mm	Top and Bottom Rail Accepts 35L, 35H, 35S, 35B 6.38 glass P40 both sides 10.38 glass P41 both sides	35R85 35R32 35R65

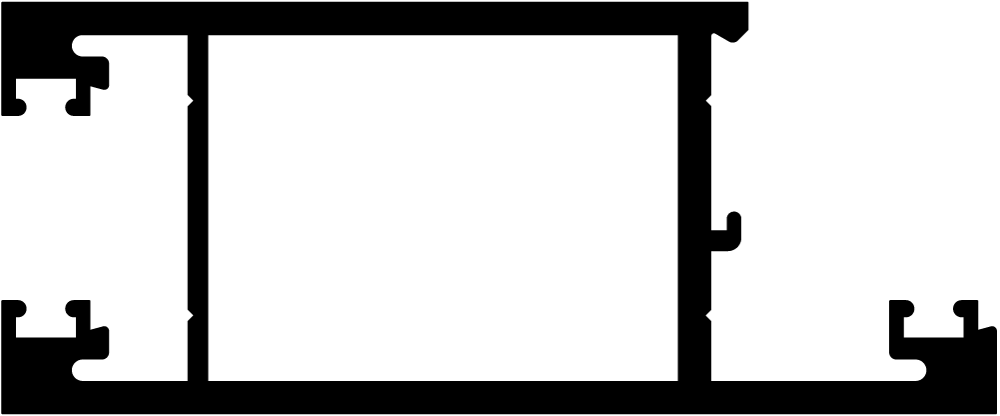

35M 32mm x 80mm	Mid Rail Accepts 35L, 35H, 35S, 35B 6.38 glass P40 both sides 10.38 glass P41 both side	35M85 35M32 35M65

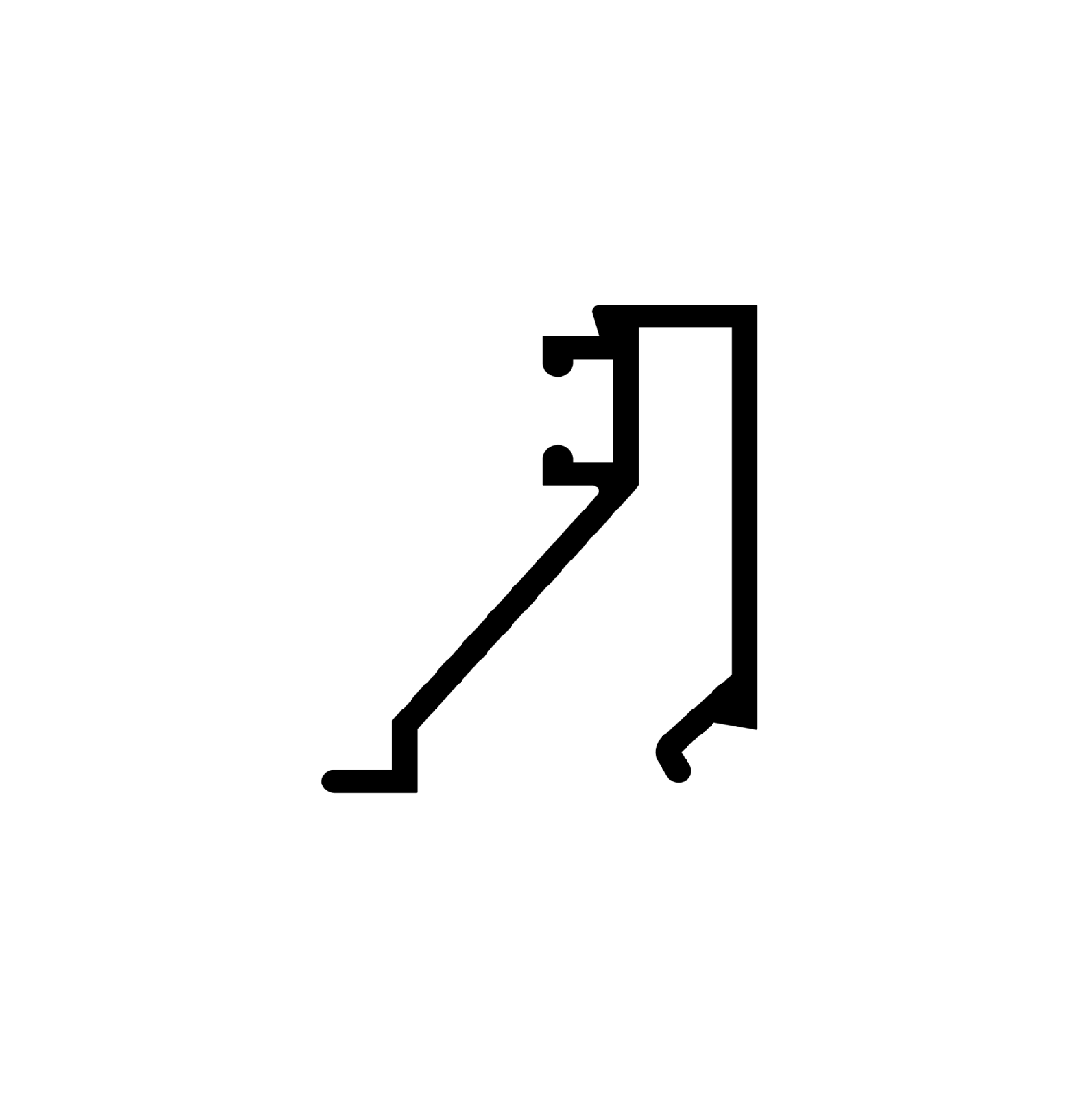

35B	Glazing Bead Accepts 35R, 35M	35B85 35B32 35B65

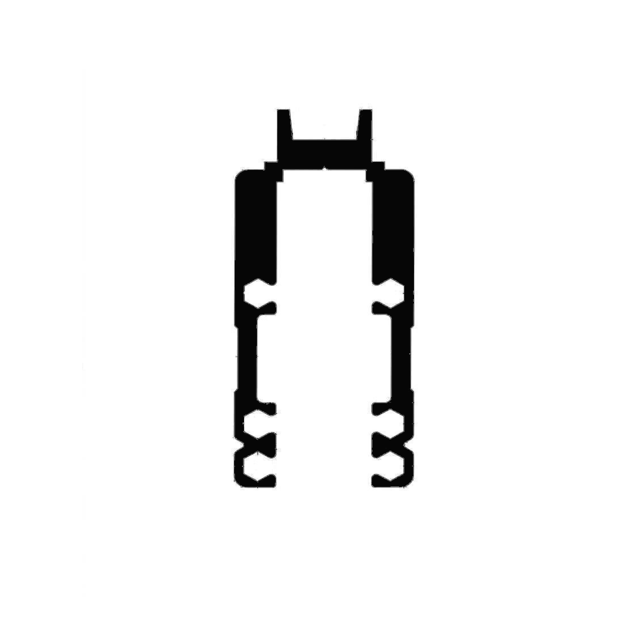

35S	Spiggot Set (4) Accepts 35R, 35M	35S

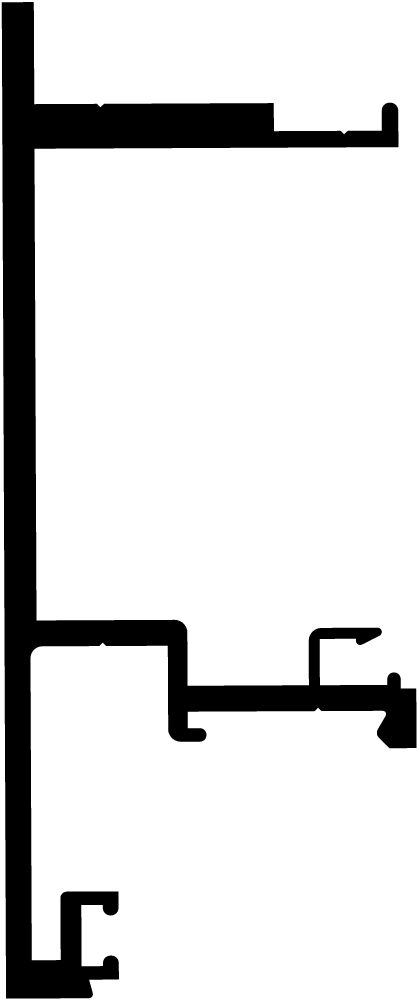

35SDR 33mm x 80mm	Sliding Door Rail Accepts 35SRC, 063, 35S, 35B 6.38 glass P40 both sides, 10.38 glass P41 both side	35SDR85 35SDR65

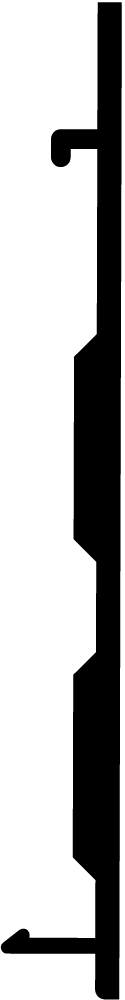

35SRC 55mm	Sliding Rail Cover Accepts 35SDR	35SRC85 35SRC65

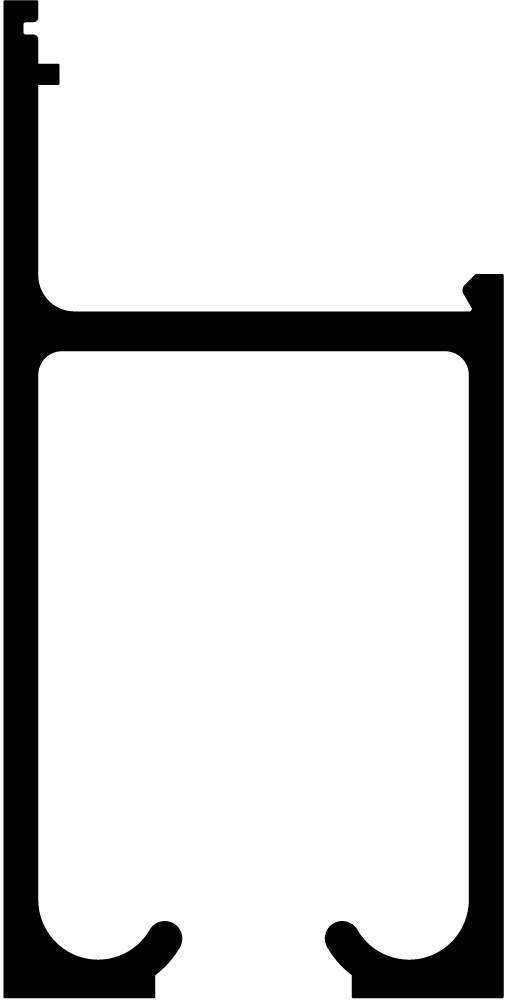

35SPT 40mm x 80mm	Sliding Pelmet Track Accepts 35SPTC, 063, 35D	35SPT65

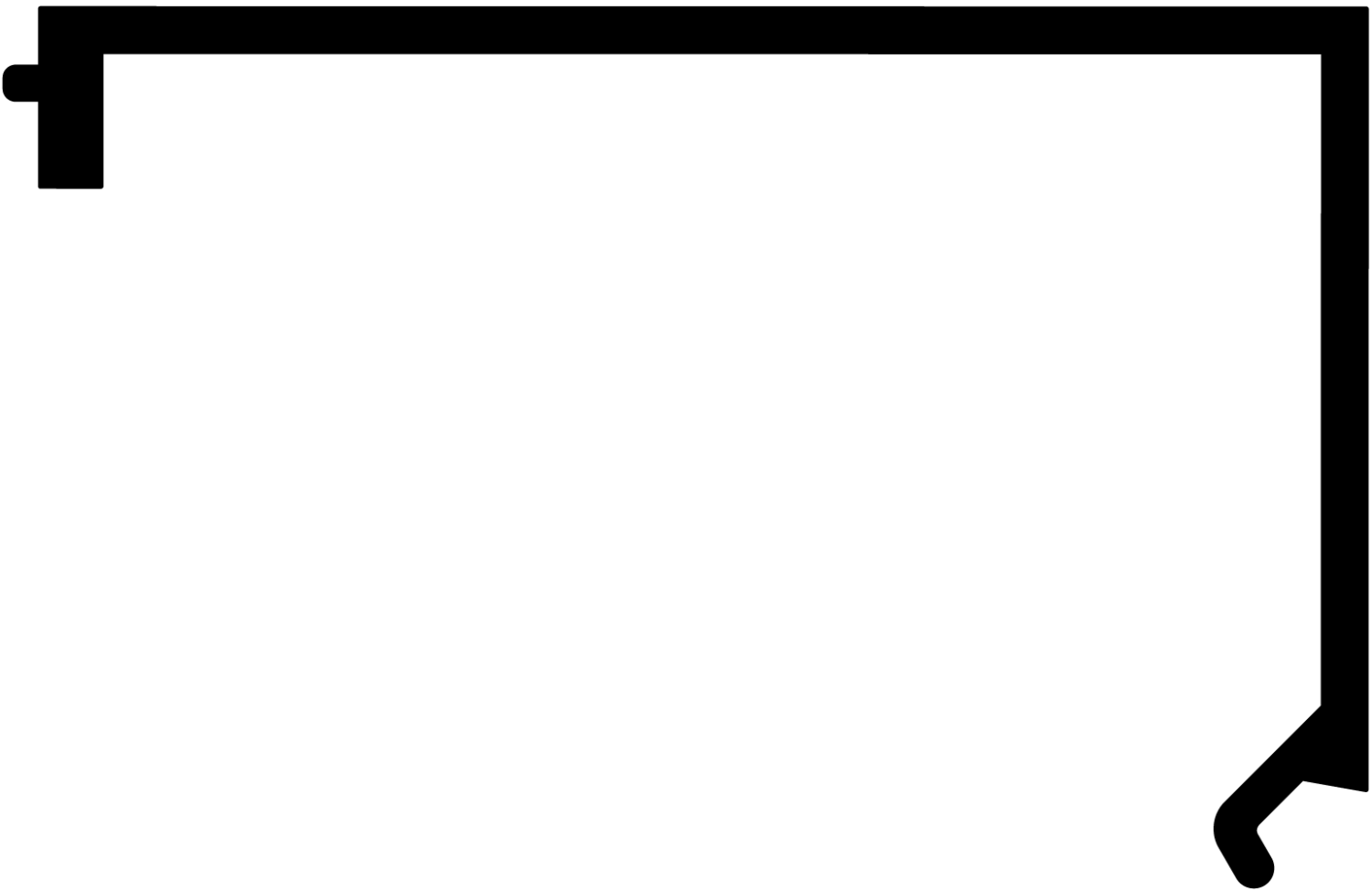

35SPTC 38mm x 22mm	Sliding Pelmet Track Cover Accepts 35SPT	35SPTC65

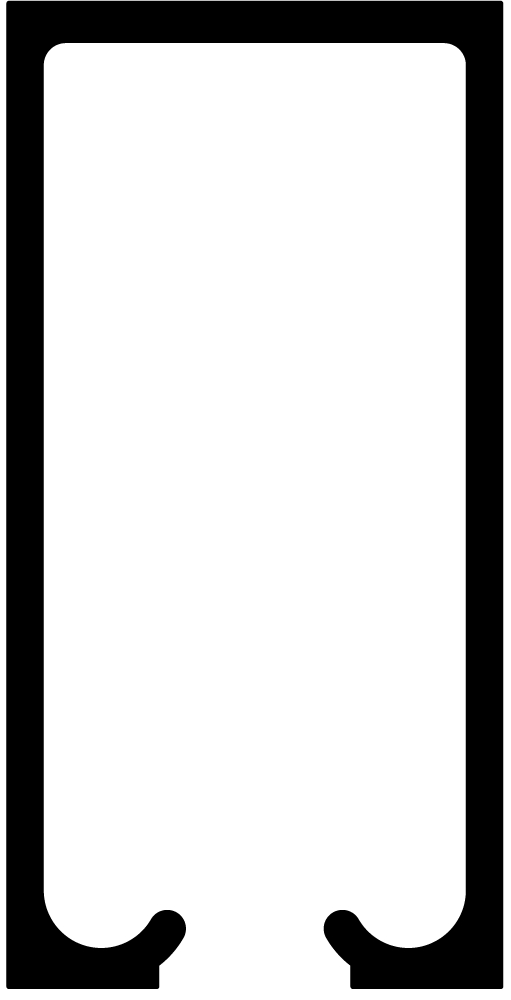

35ST 40mm x 80mm	Sliding Track Accepts 063, 35D	35ST65
063	Stacking Door Roller Accepts 059, 063, 35SPT, 35ST	063

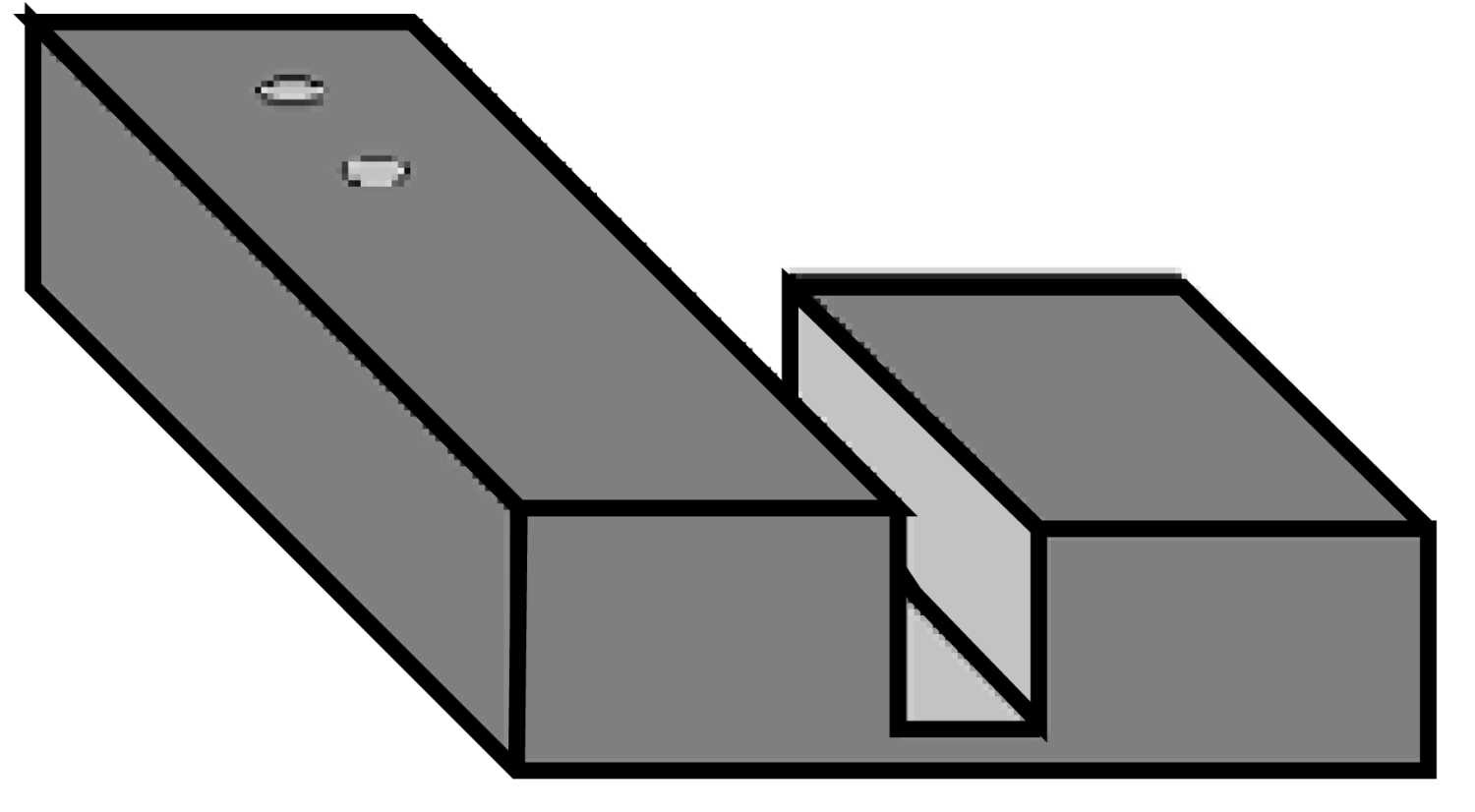

35GBD	Guide Block for Double Stacking Doors	35GBD

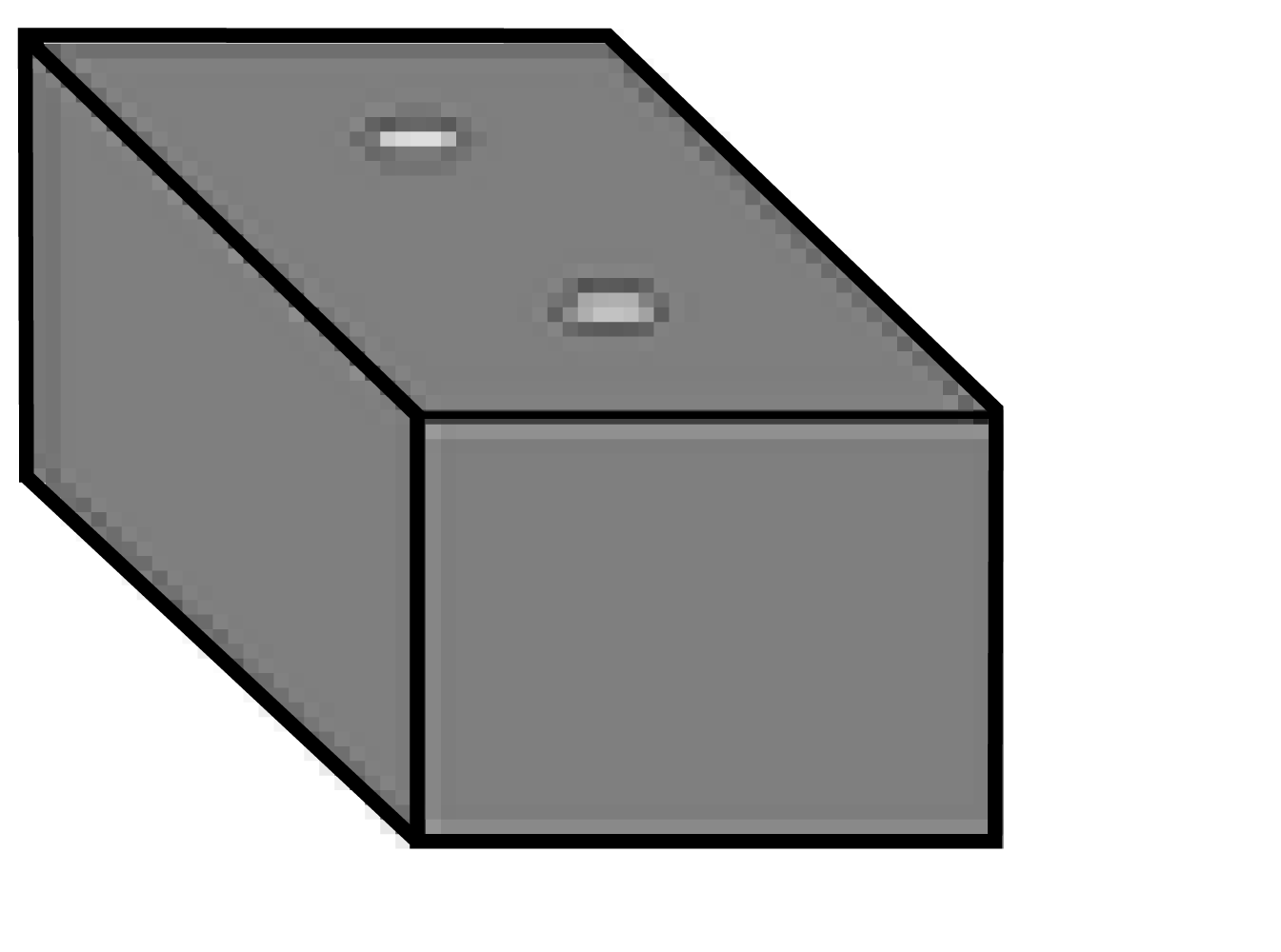

35GBS	Guide Block for Single Sliding Doors	35GBS
