Extrusions

45mm ALUMINIUM DOOR SUITE
Lengths .85, 2.16, 3.25, 6.50

Product Description Item Code
021
45mm x 66mm

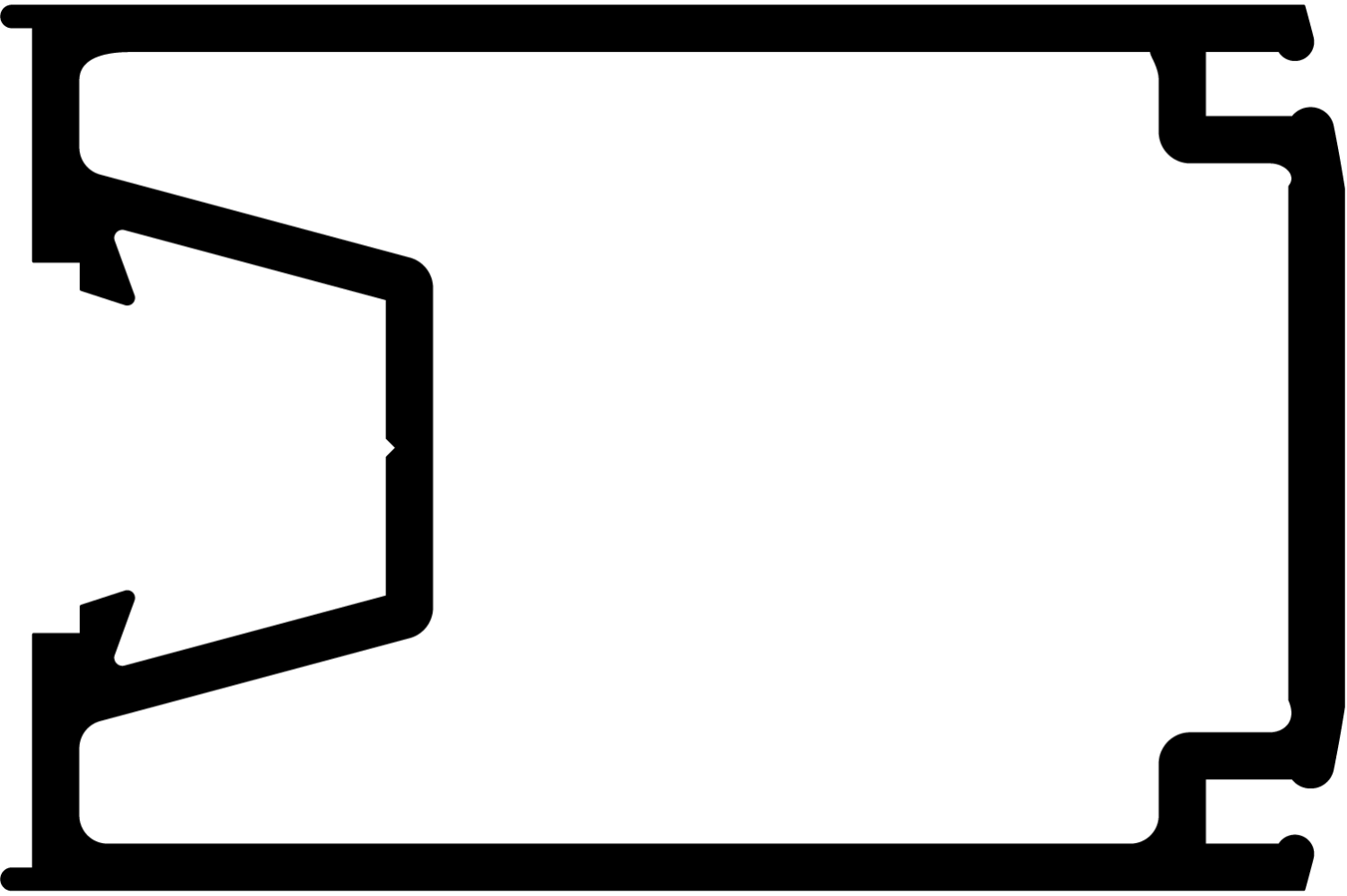

Image Diagram for 021-45mm x 66mm

Pivot Stile
Accepts
 025, 026, 027,
032, 035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both sides

02121
02132
02165
022
45mm x 61mm

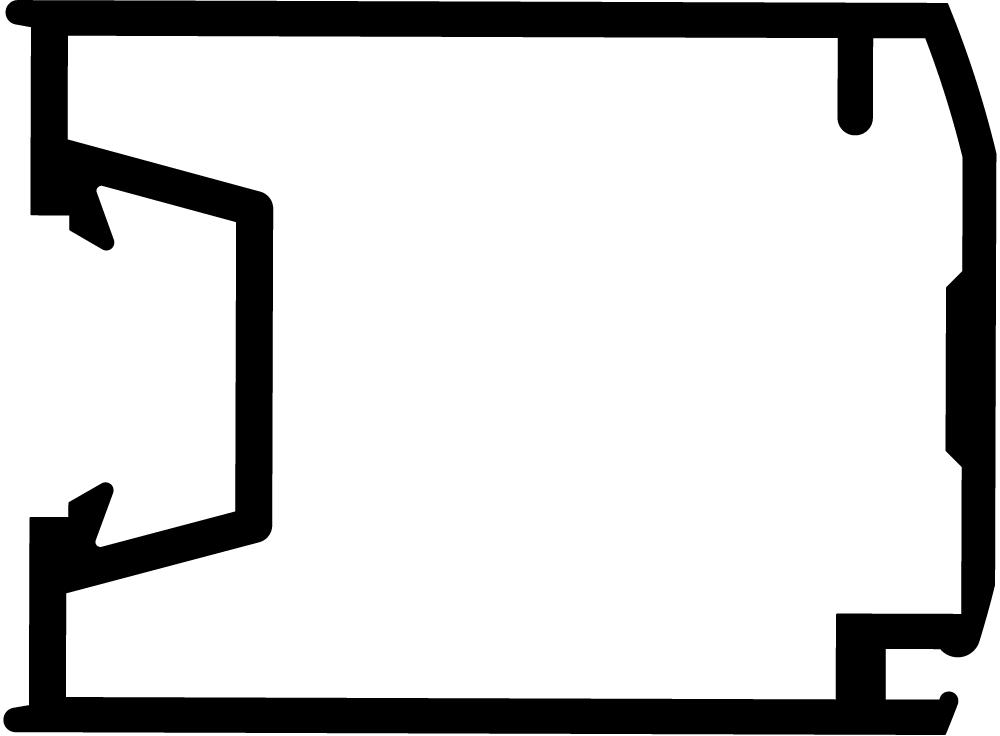

Image Diagram for 022-45mm x 61mm

Lock Stile
Accepts
 025, 026, 027,
032, 035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both sides

02221
02232
02265
023
45mm x 61mm

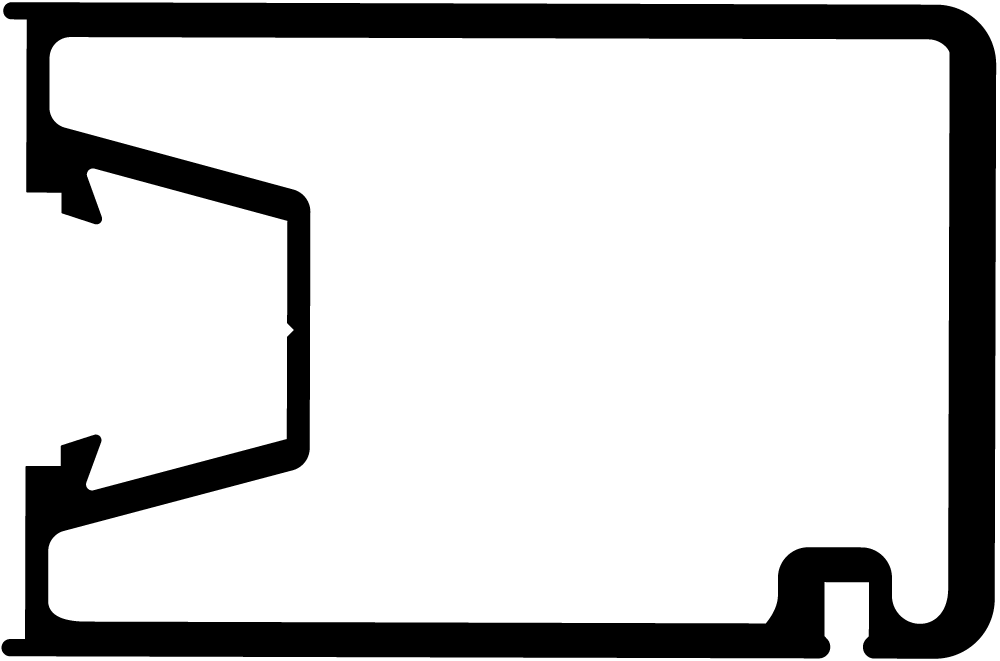

Image Diagram for 023-45mm x 61mm

Sliding Stile
Accepts
 025, 026, 027,
035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both sides

02321
02332
02365
024
45mm x 62mm

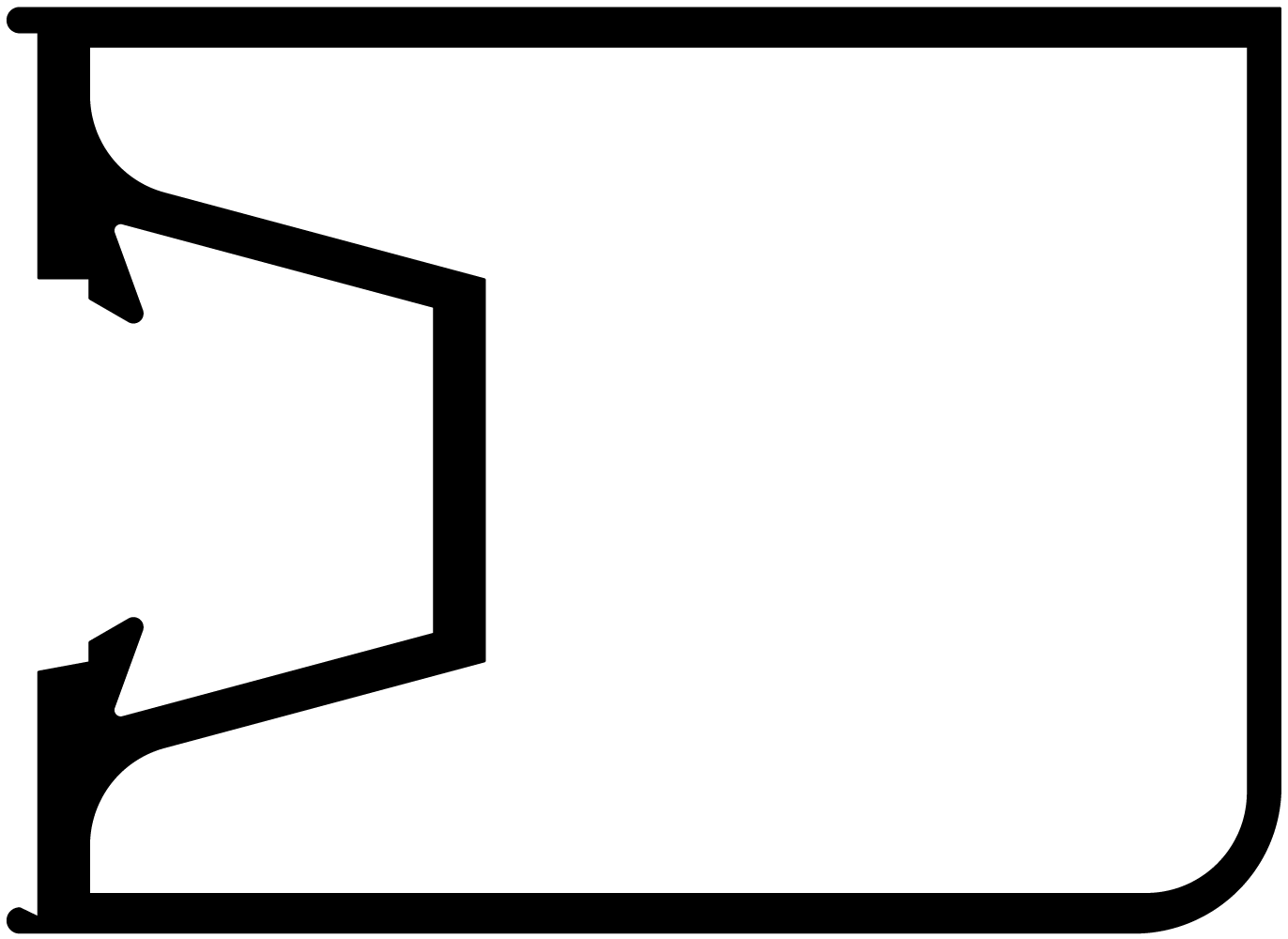

Image Diagram for 024-45mm x 62mm

Hinge Stile
Accepts
 025, 026, 027
035, SPIG
6.38 glass P40 both sides
10.38 glass P41 both sides

02421
02432
02465
025
42mm x 83mm

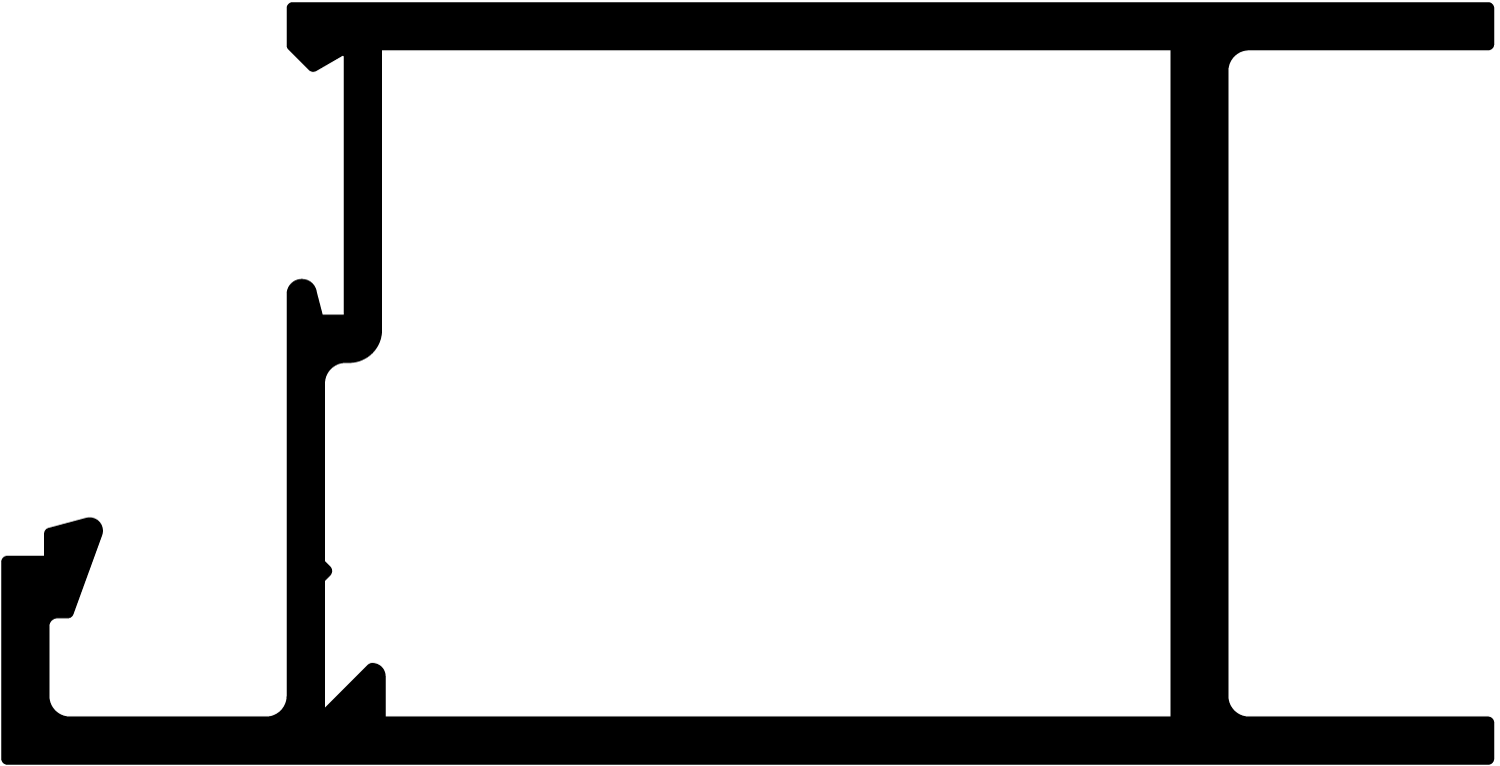

Image Diagram for 025-42mm x 83mm

Top Rail
Accepts
 028, SPIG
6.38 glass P40 both sides
10.38 glass P41 both sides

02585
02565
026
42mm x 110mm

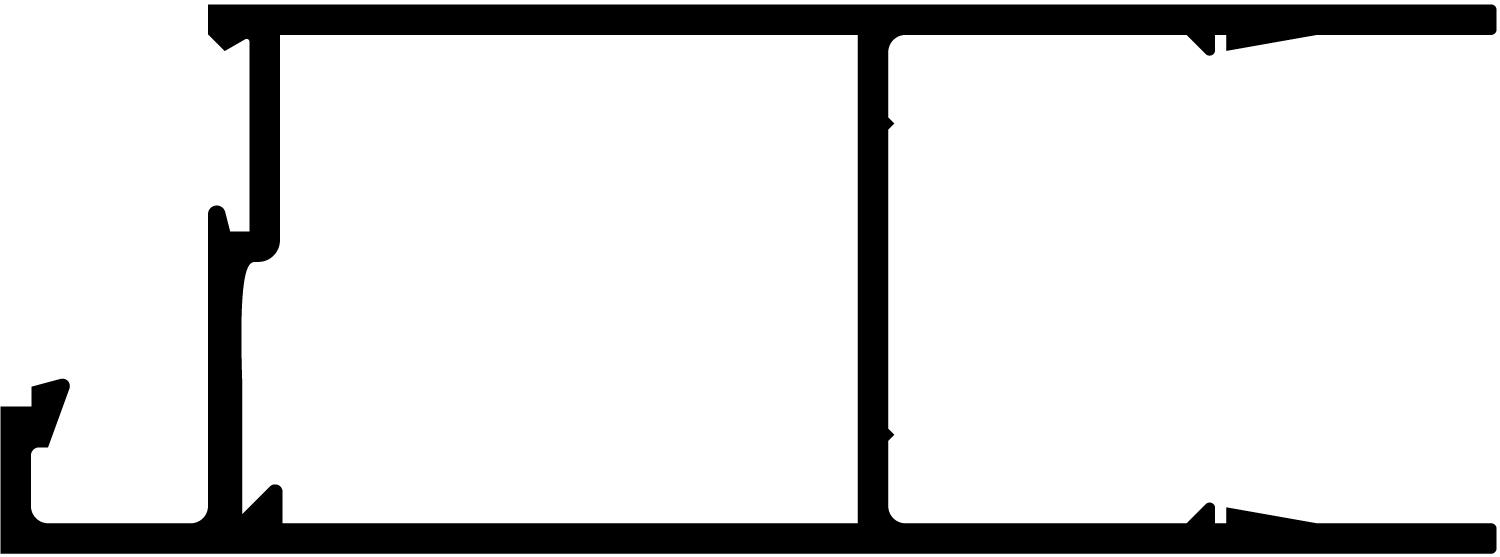

Image Diagram for 026-42mm x 110mm

Bottom Rail
Accepts
 028, SPIG
6.38 glass P40 both sides
10.38 glass P41 both sides

02685
02665
027
42mm x 124mm

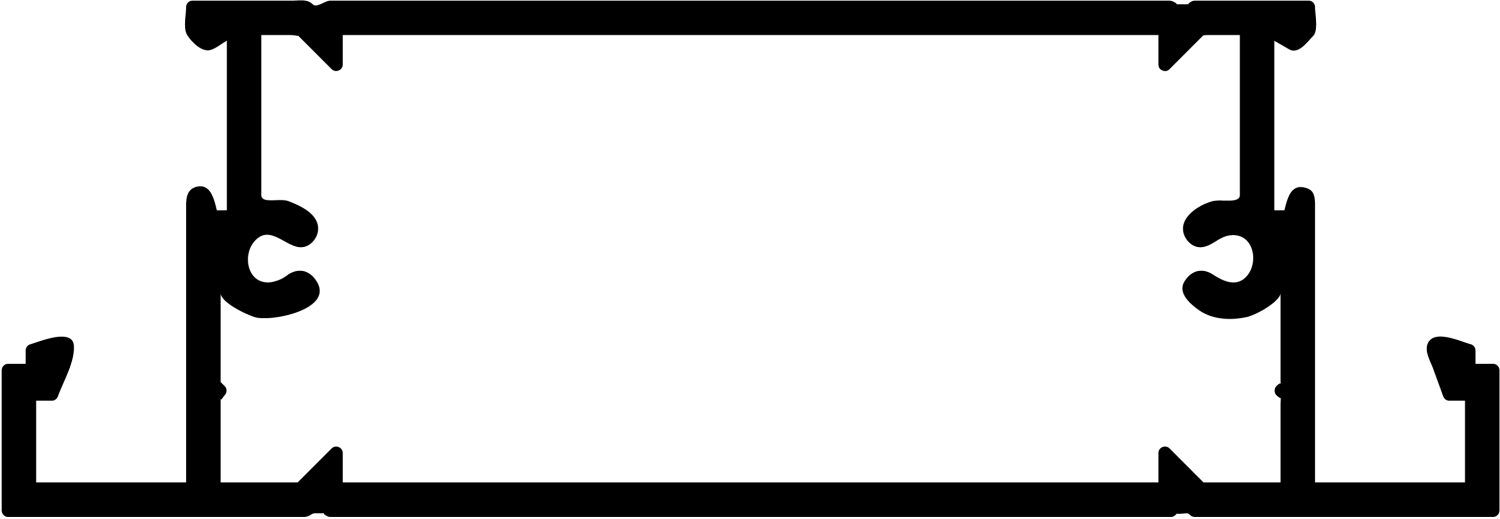

Image Diagram for 027-42mm x 124mm

Mid Rail
Accepts
028
6.38 glass P40 both sides
10.38 glass P41 both sides

02785
02765
028

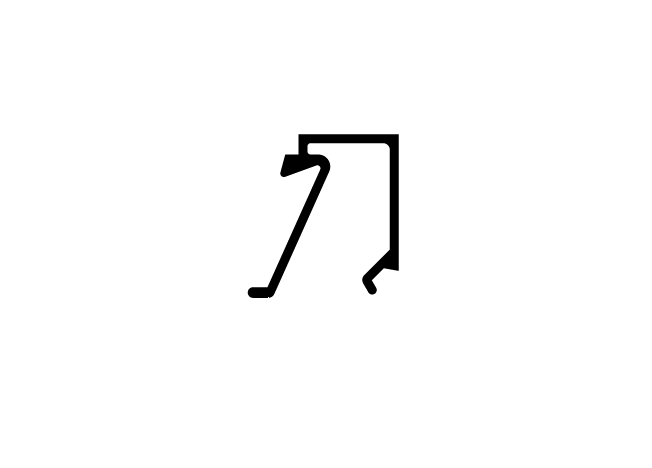

Image Diagram for   028-

Glazing Bead
Accepts
 025, 026, 027
035, 724, 003, 004

02885
02827
02837
02865
029
45mm x 114.3mm

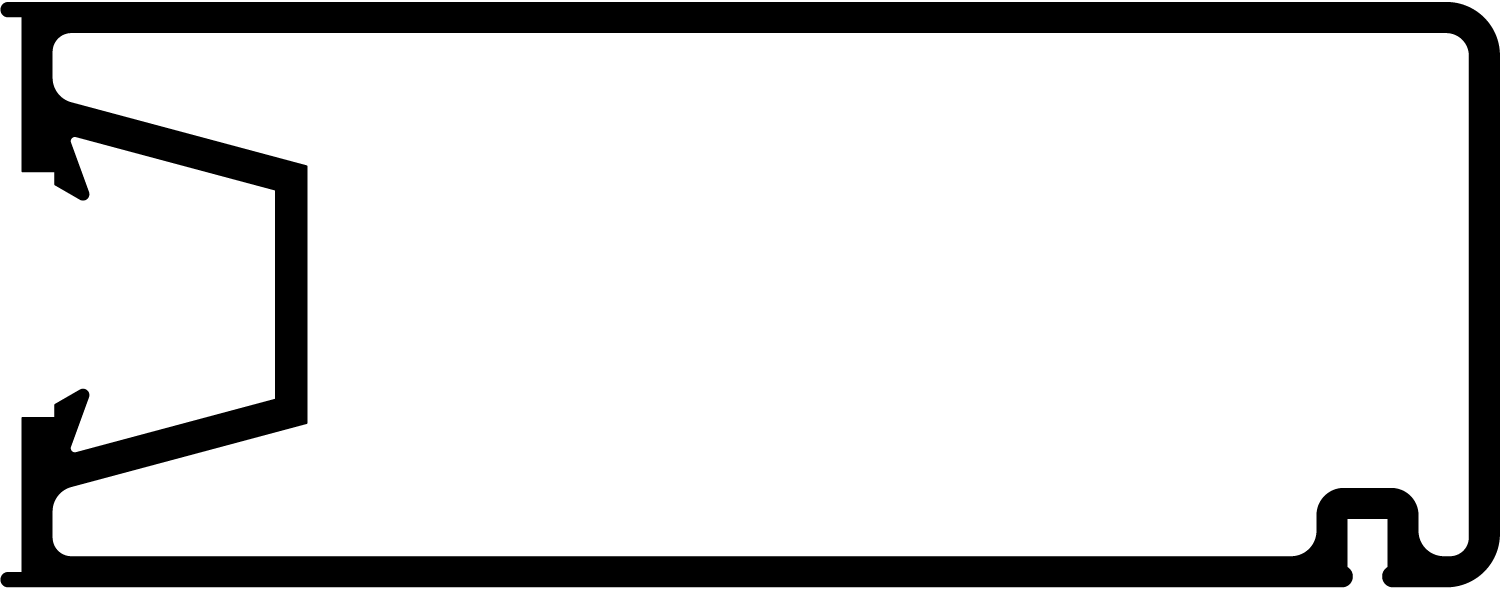

Image Diagram for 029-45mm x 114.3mm

Wide Sliding Stile
Accepts
 025, 026, 027
035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both side

02921
02932
02965
030
45mm x 114.3mm

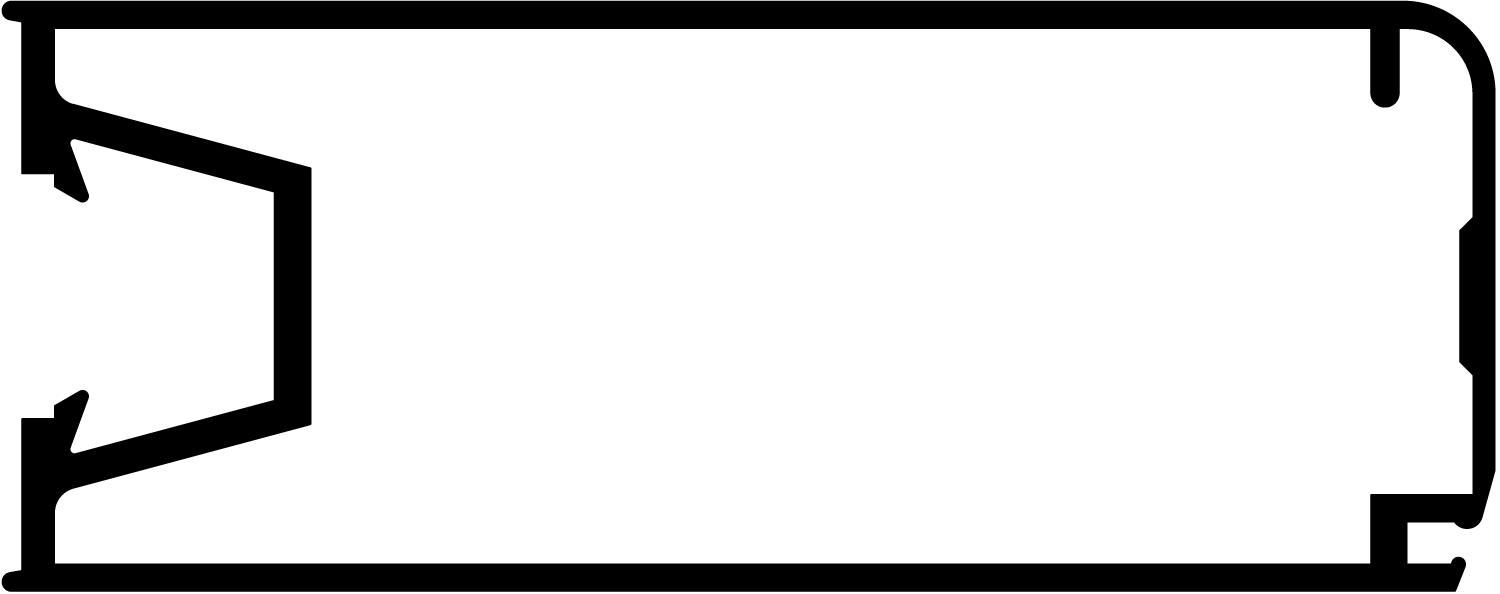

Image Diagram for 030-45mm x 114.3mm

Wide Lock Stile
Accepts
025, 026, 027
035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both side

03021
03032
03065
031
45mm x 114.3mm

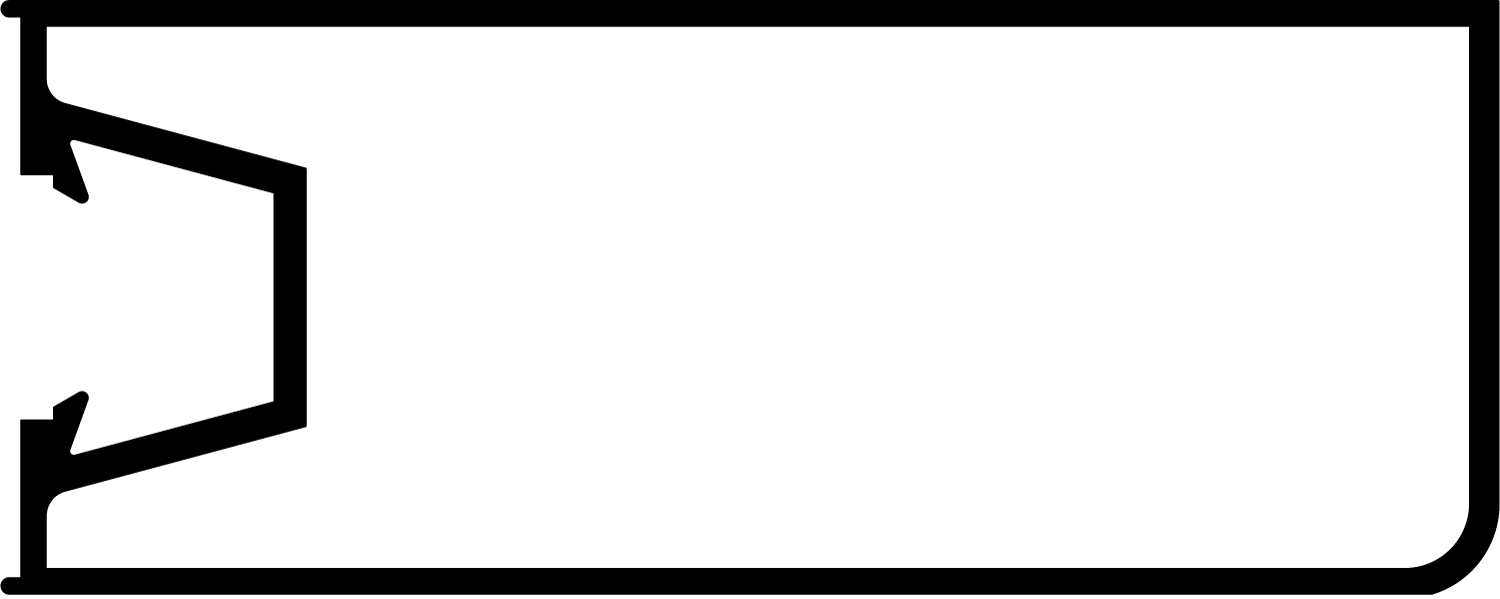

Image Diagram for 031-45mm x 114.3mm

Wide Hinge Stile
Accepts
 025, 026, 027
035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both side

03121
03132
03165
032

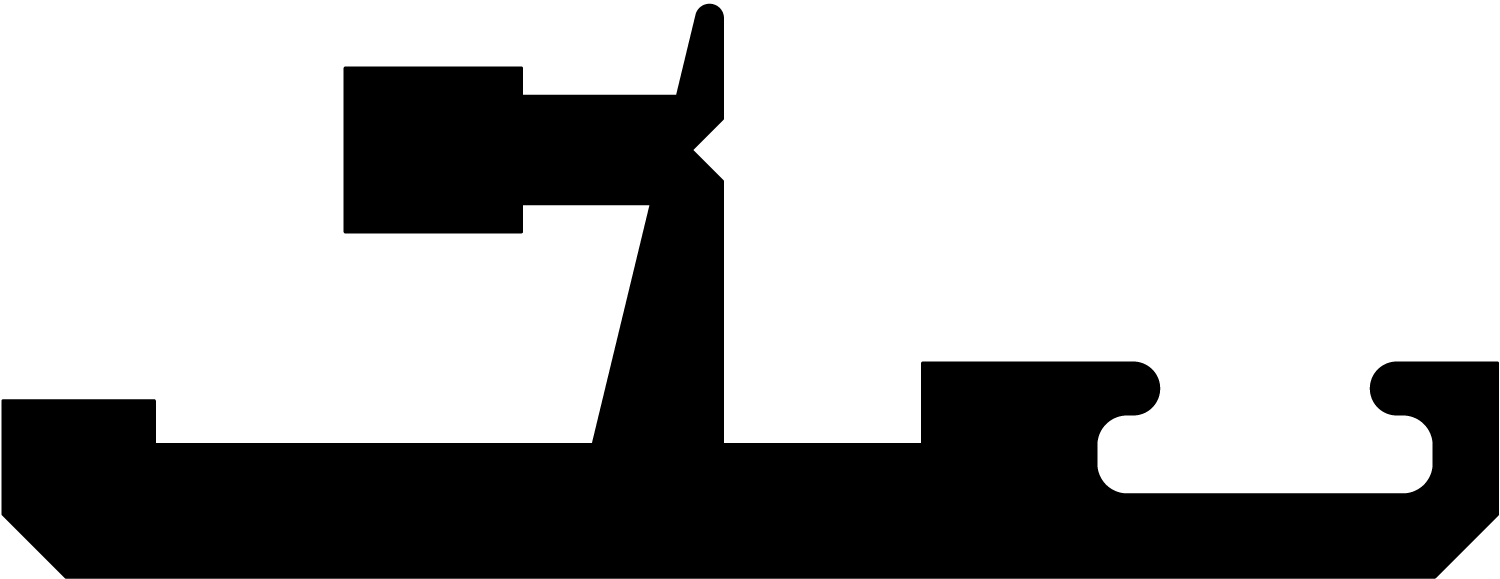

Image Diagram for 032-

Snap in Interlock
Accepts
 007B, 007M, 021
022, 030, 034

03265
033

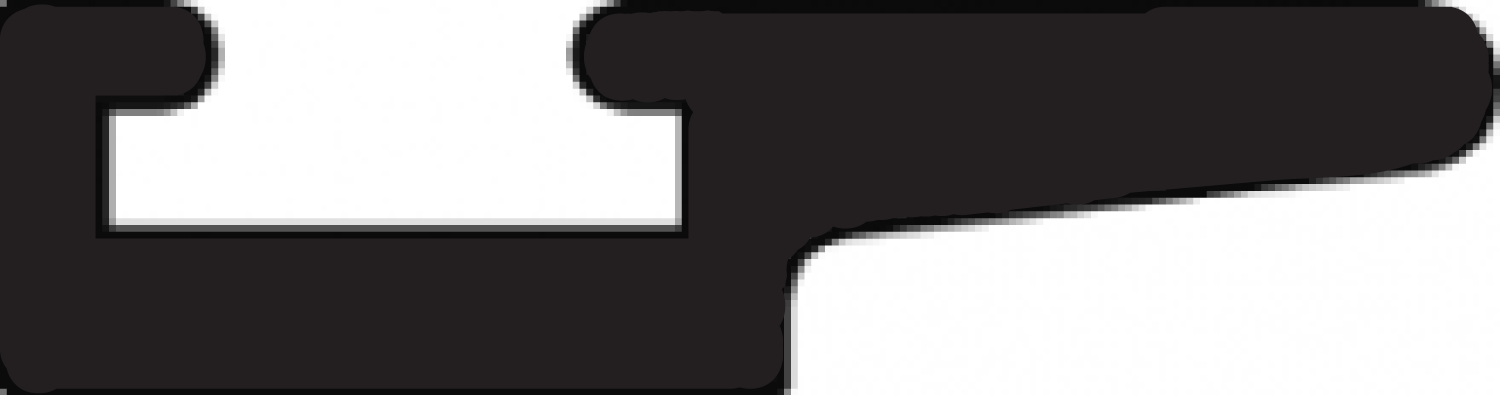

Image Diagram for 033-

Plant on Interlock
Accepts
 007M, 007B

03365
034
45mm x 114.3mm

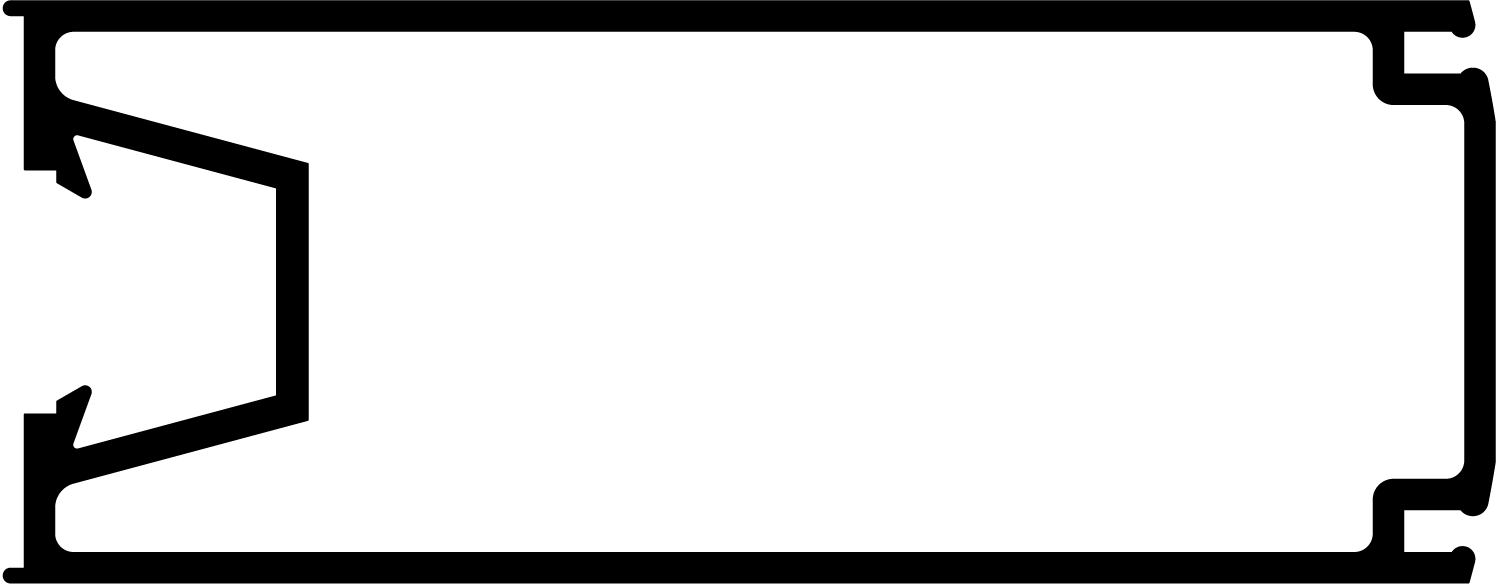

Image Diagram for 034-45mm x 114.3mm

Wide Pivot Stile
Accepts
 025, 026, 027
035, FP8, SPIG
6.38 glass P40 both sides
10.38 glass P41 both side

03421
03432
03465
035
42mm x 50mm

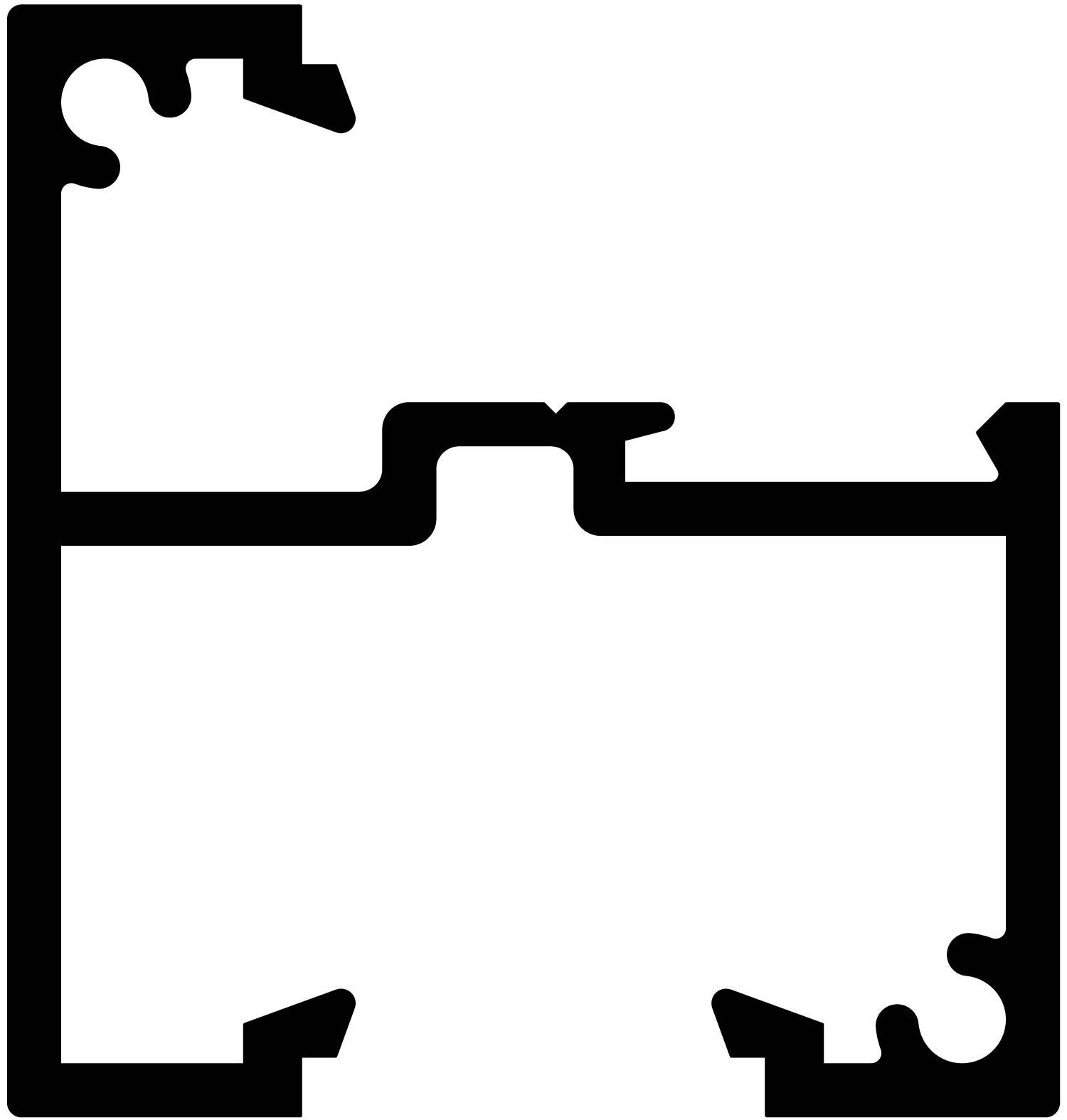

Image Diagram for 035-42mm x 50mm

Mid Rail
Accepts
 028
6.38 glass P40 both sides
10.38 glass P41 both sides

03585
03565
Spiggots

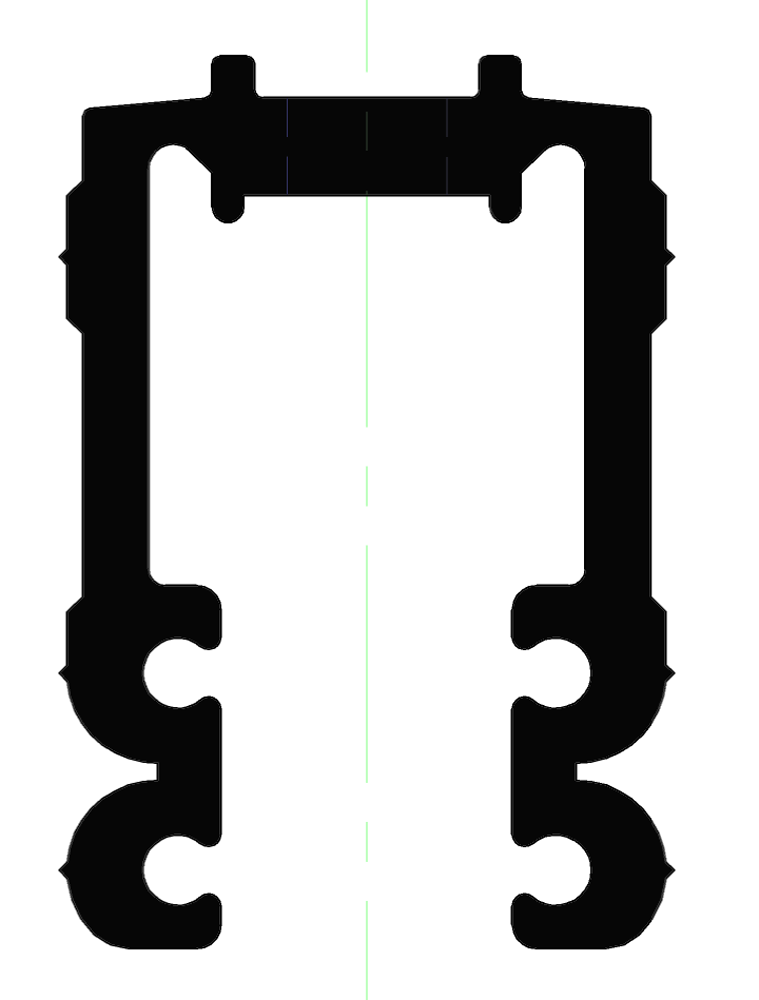

Image Diagram for Spiggots-

Spiggot Set (4)
Accepts
 021, 022, 023, 024
025, 026, 027, 029
030, 031, 034, 035

SPIG
036

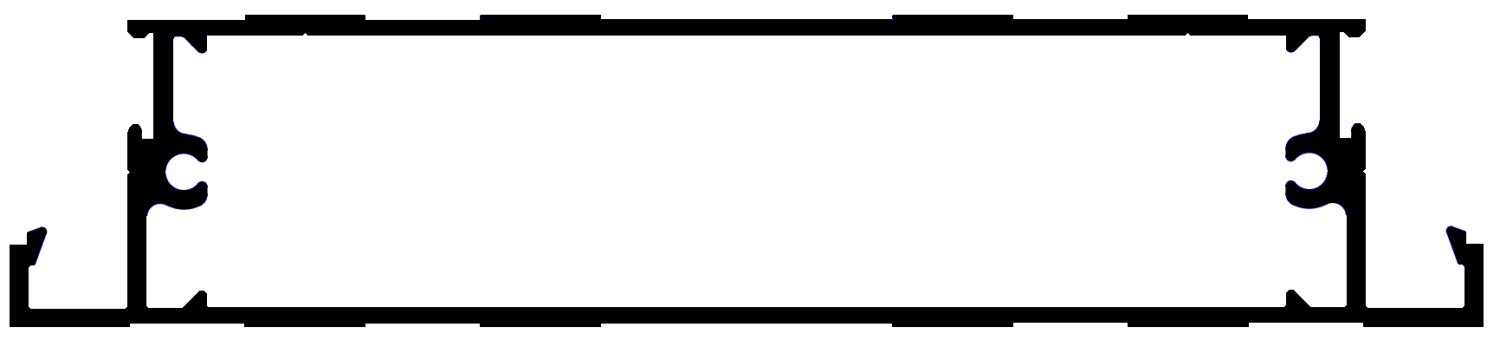

Image Diagram for 036-

Midrail
Accepts
028
42 x 200mm

036
037

Image Diagram for 037-

Mid Rail Adaptor
Accepts
026

037
037LM
