Extrusions

SHOPFRONT SUITE 800 SERIES FLUSH GLAZED 100x50
Lengths 6.50

Product	Description	Item Code

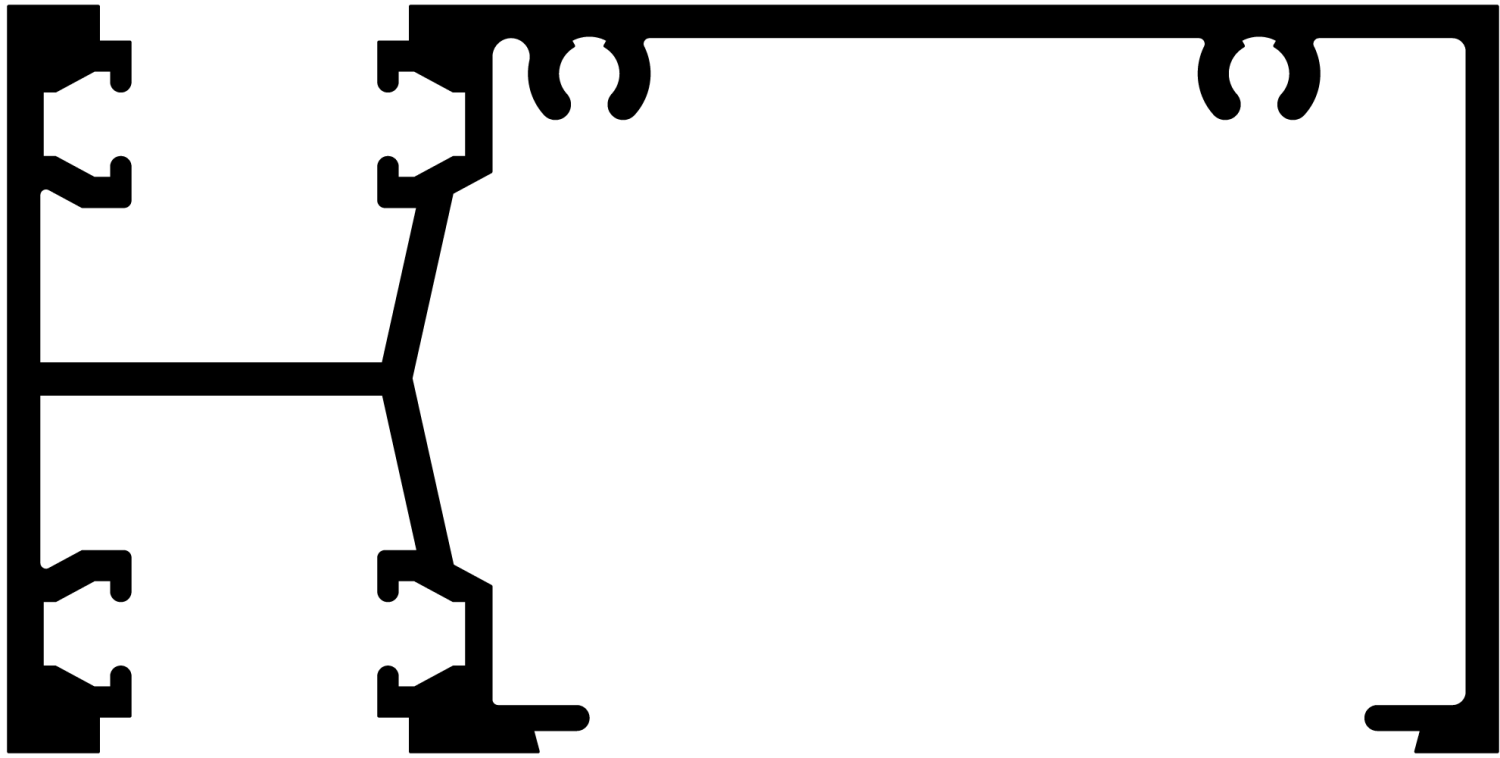

800 100mm x 50mm	Main/Mullion Accepts 804, 807, 808 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	800

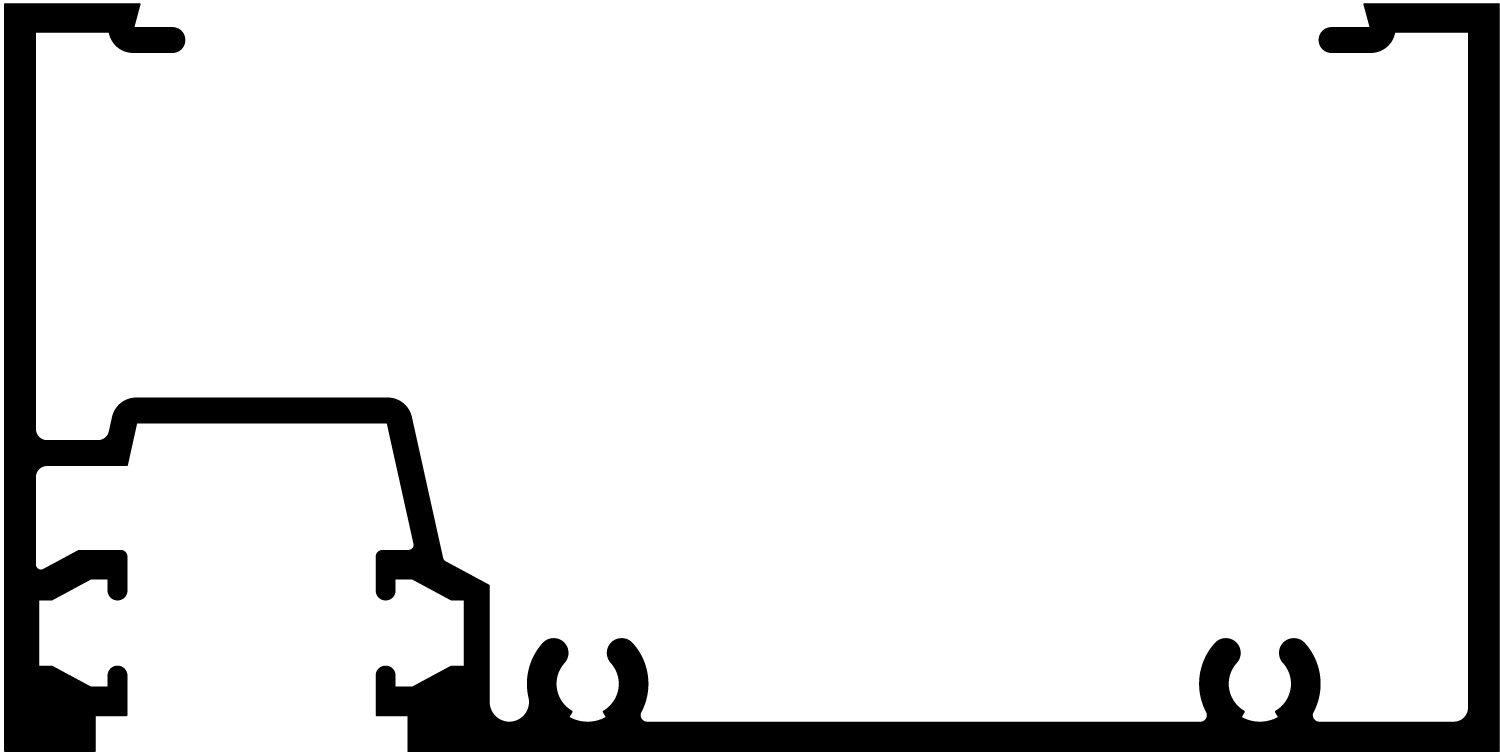

801 100mm x 50mm	Main/Mullion Accepts 711, 807, 808 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	801

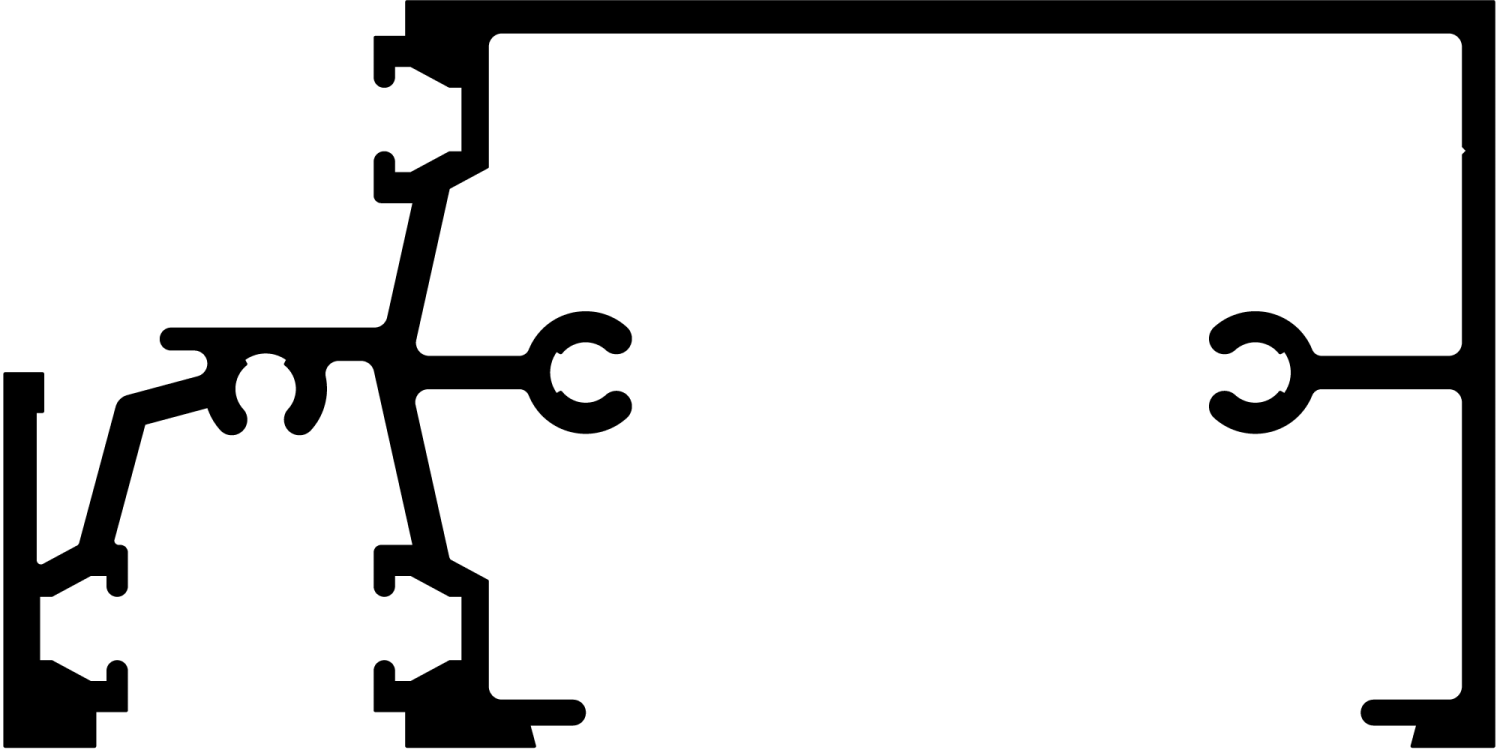

802 100mm x 50mm	Sill/Transom External Bead Accepts 803, 804, 807 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	802

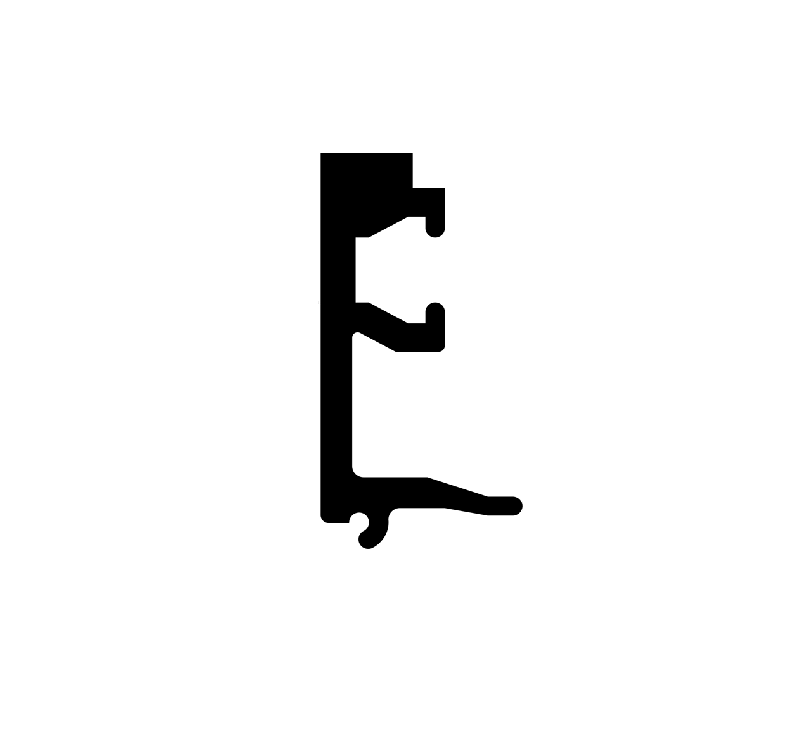

803	Sill Bead Accepts 802	803

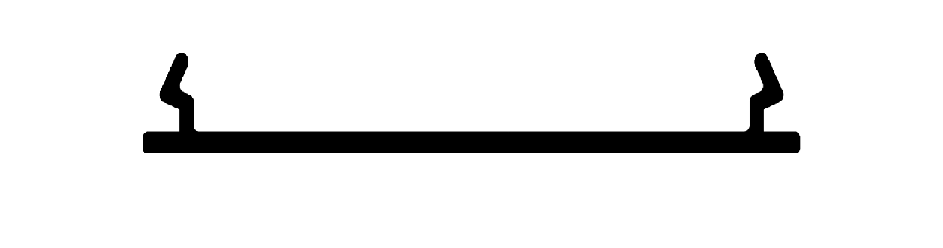

804 59mm	Flat Filler Accepts 800, 802	804

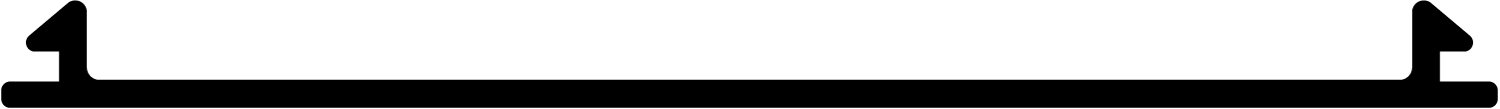

711 90.6mm	Flush Filler Accepts 080	711

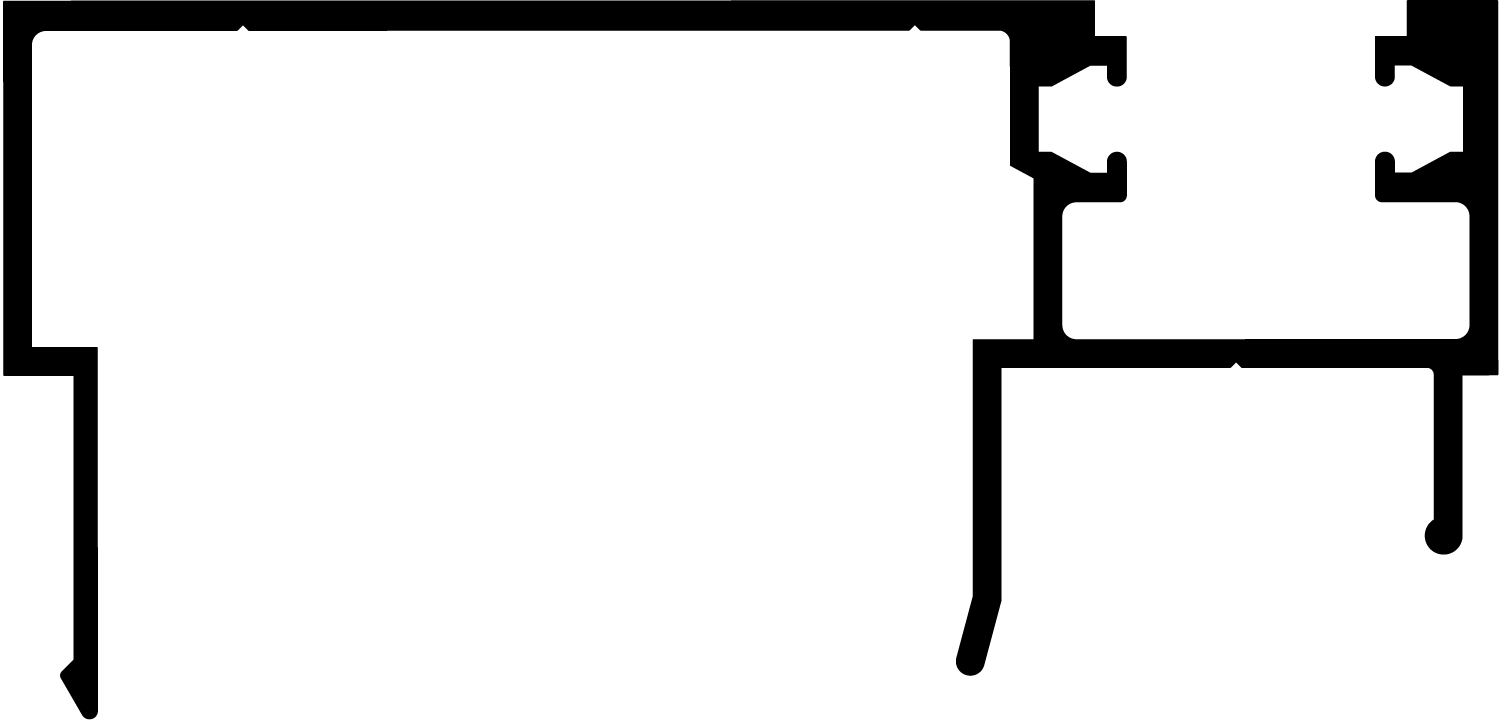

805 100mm x 50mm	Split Mullion Male Accepts 806, 807, 808 6.38 glass P40 both sides 10.38 glass P41 both sides	805

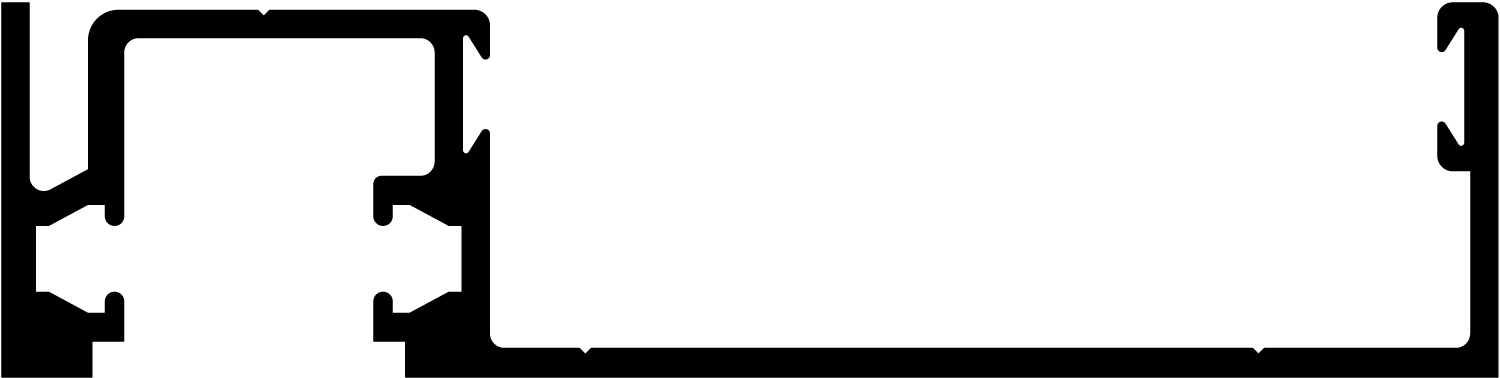

806 100mm x 25mm	Split Mullion Female Accepts 805, 807, 808 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	806

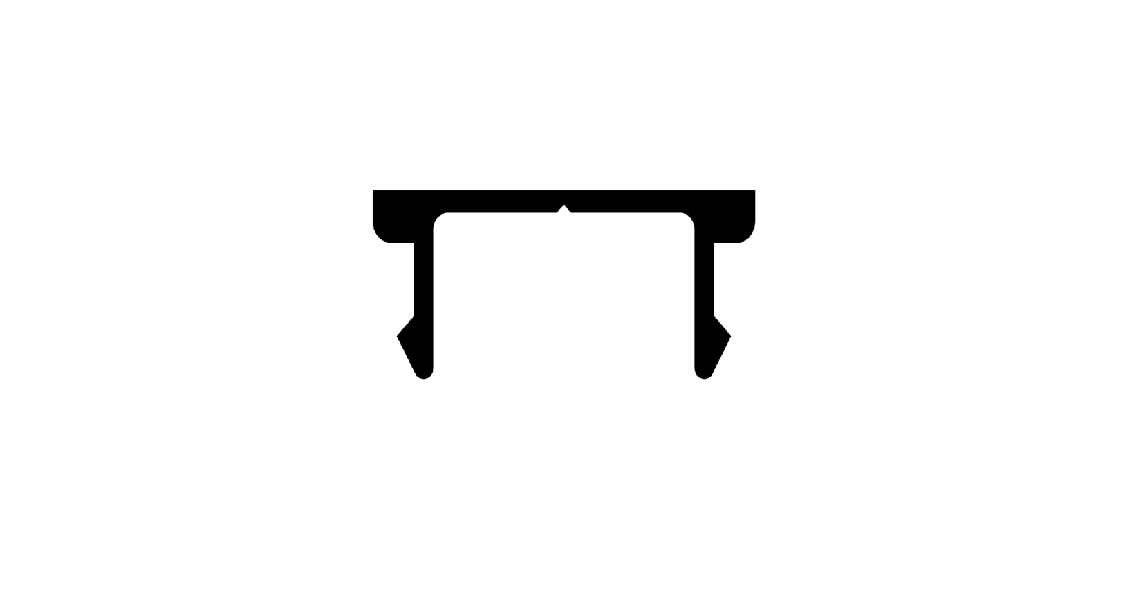

807	Pocket Filler Accepts 800, 801, 802, 805, 806, 809	807

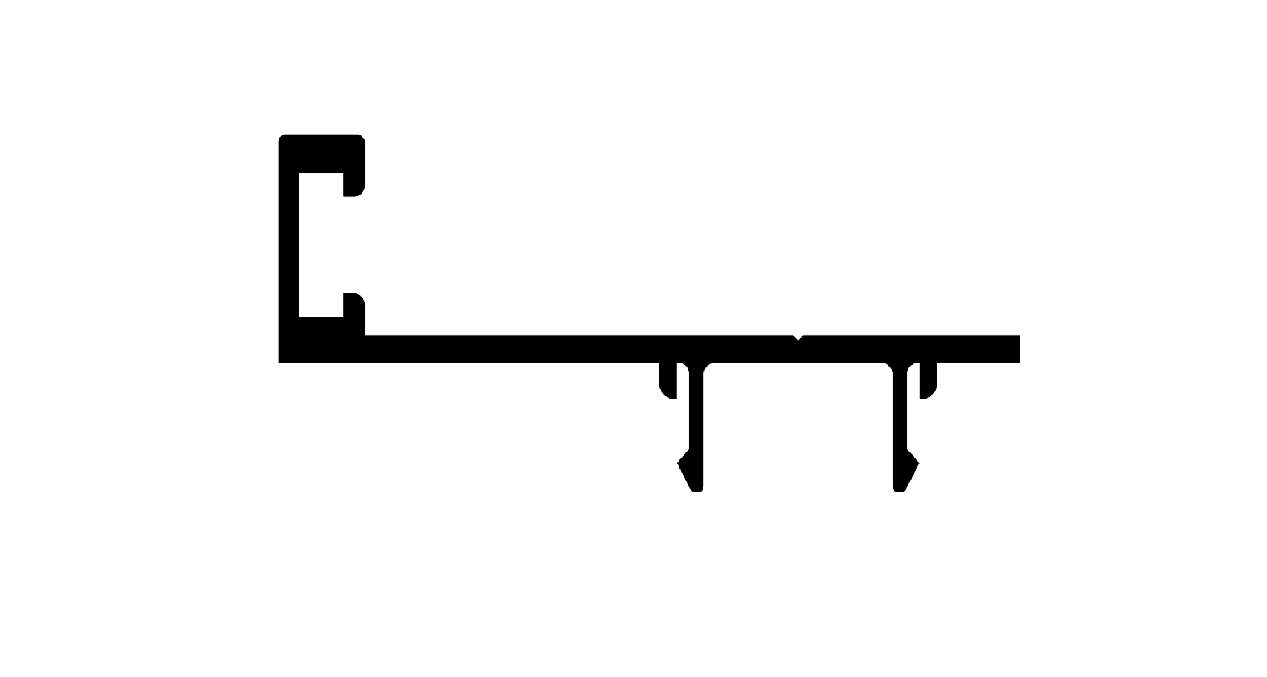

808	Door Stop 45mm Accepts 800, 801, 805, 806, 809 P80 bubble seal	808

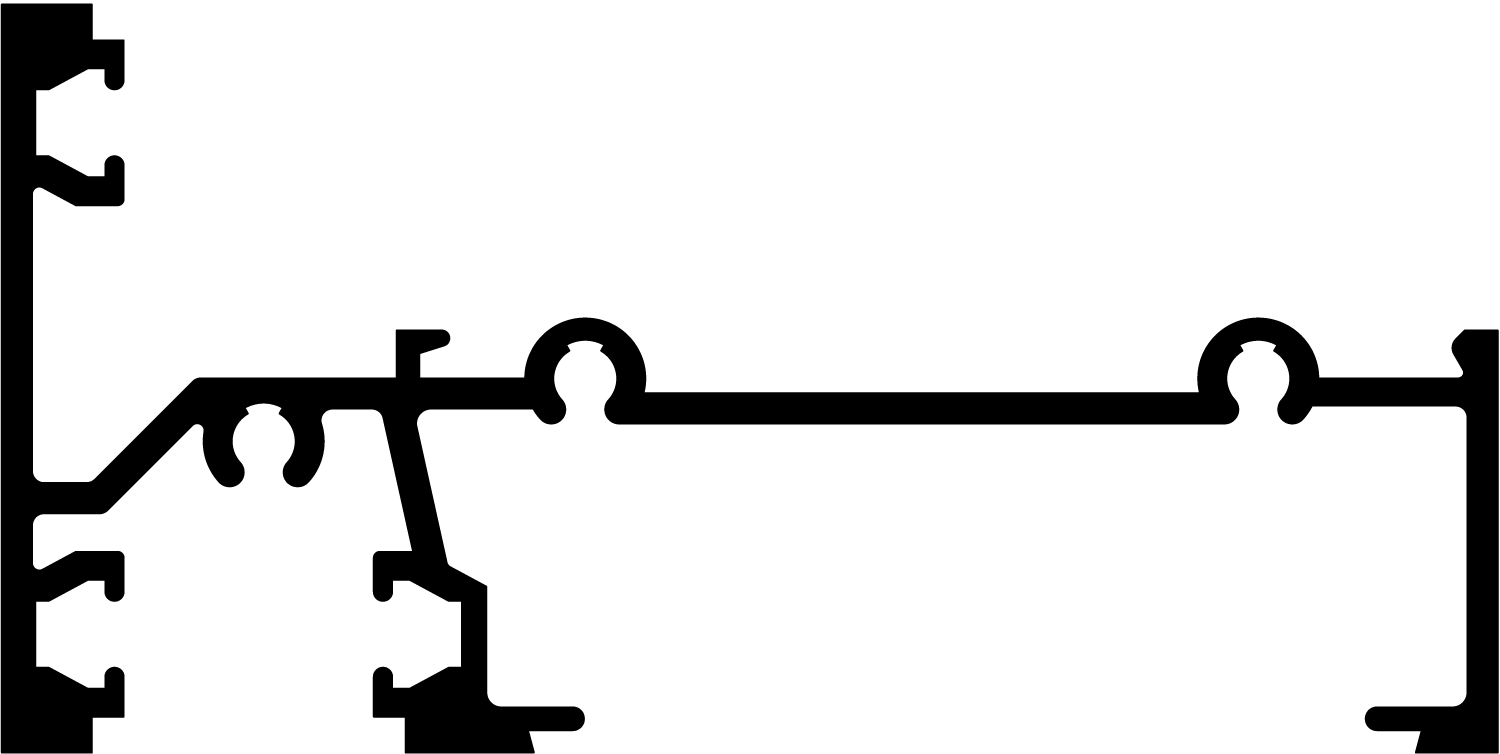

809 100mm x 50mm	Sill/Transom Internal Bead Accepts 807, 810 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	809

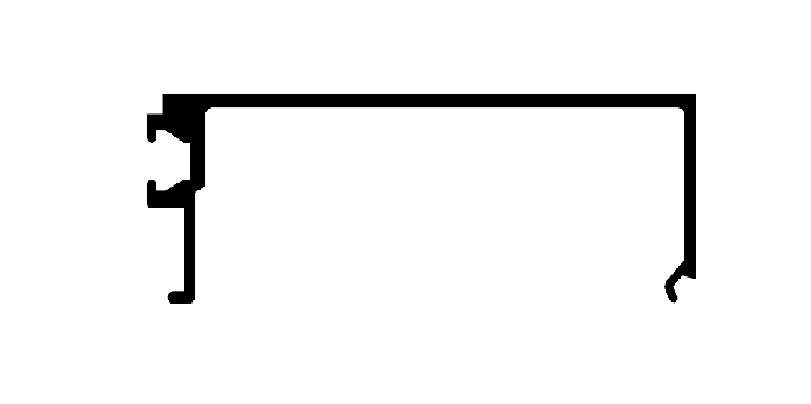

810 73mm x 21mm	Sill Bead Accepts 809	810

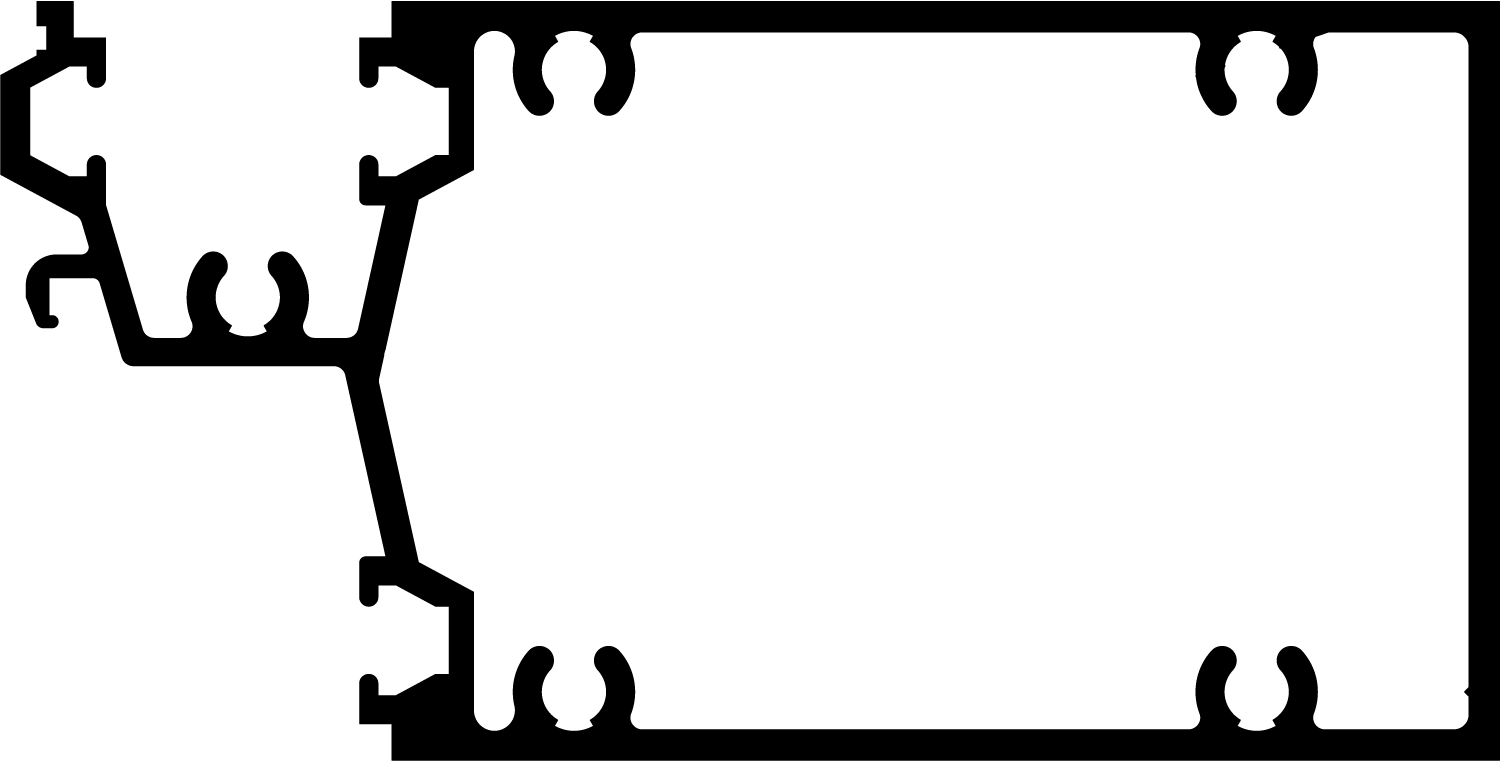

811 100mm x 50mm	Sill/Transom External Bead Accepts 807, 812 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	811

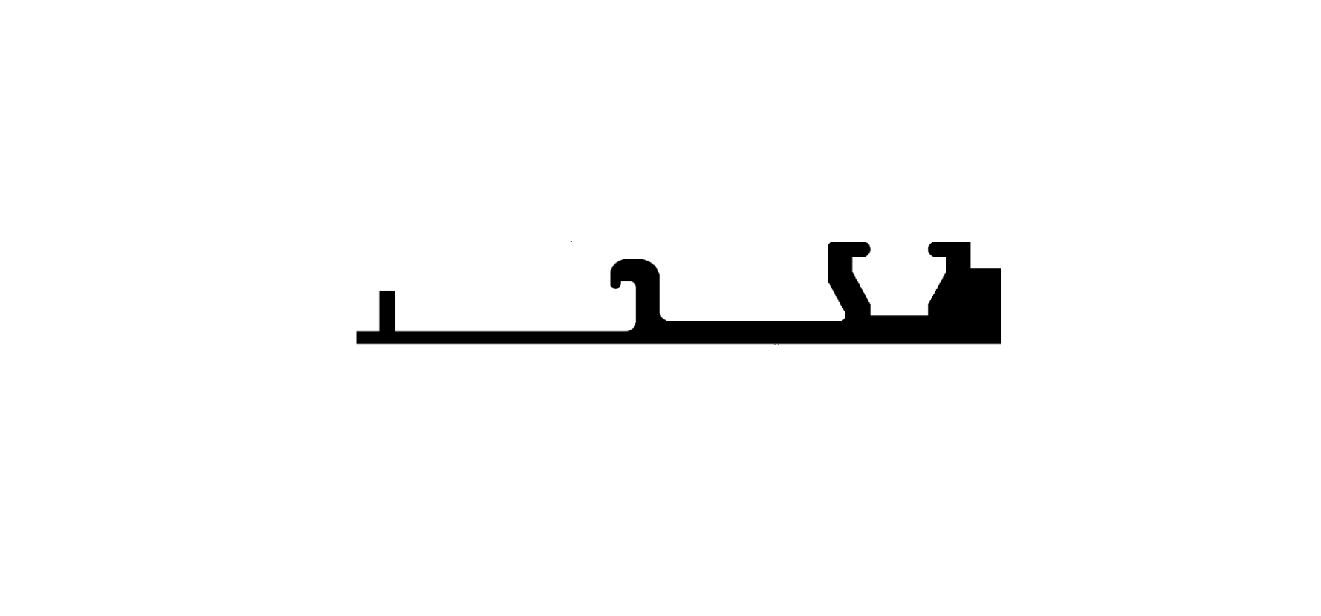

812 50mm x 8mm	Sill Bead Accepts 811	812

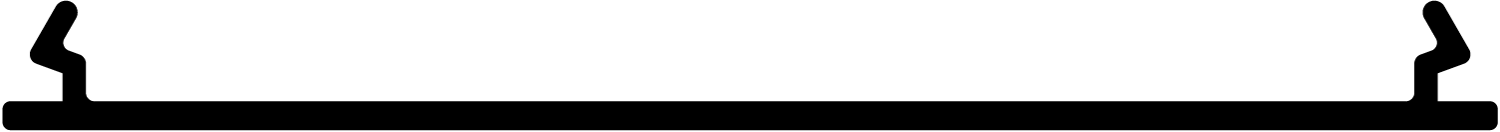

813 82mm	Flat Filler Accepts 801	813

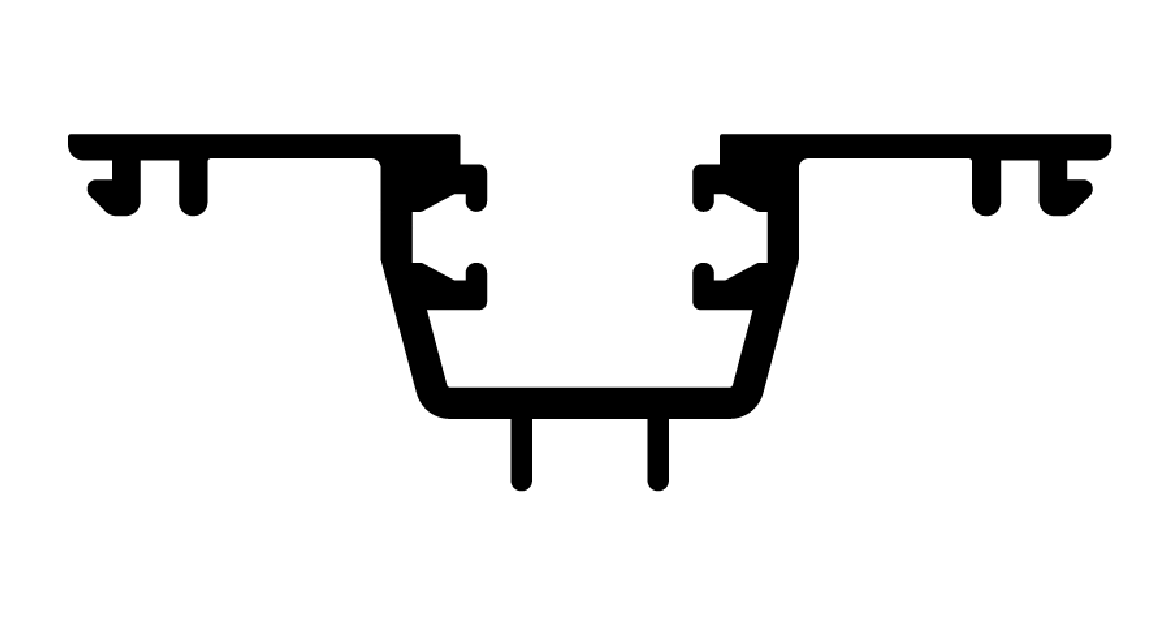

814	Adaptor Accepts 801, 807	814
