Extrusions

45 PARTITION SUITE
Lengths of 2.75, 3.75, 6.5

** 007 & 008 available in 2.1m

Product	Description	Item Code

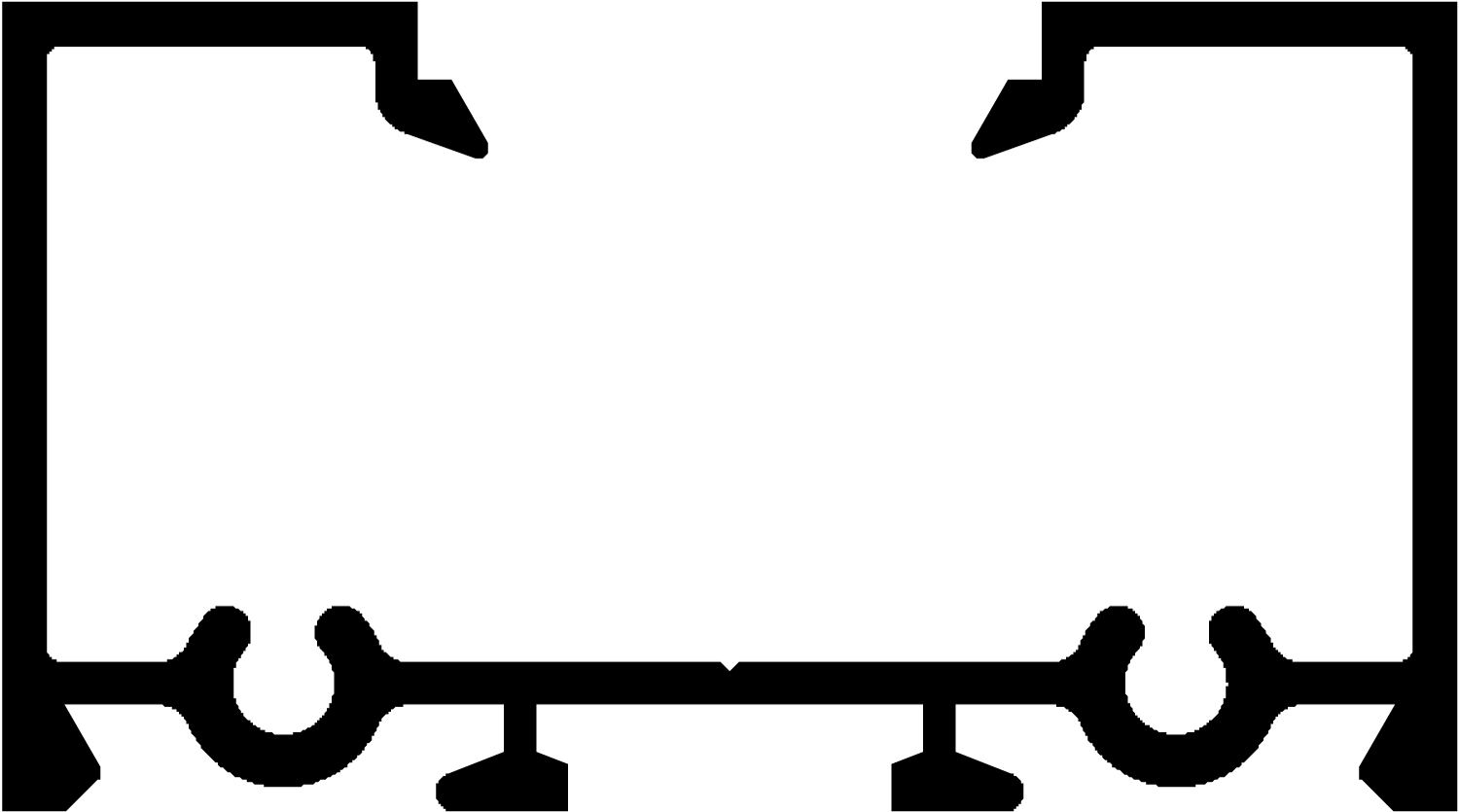

003 45mm x 25mm	Glazing Frame Accepts 005, 006, 007, 008 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	00327 00337 00365

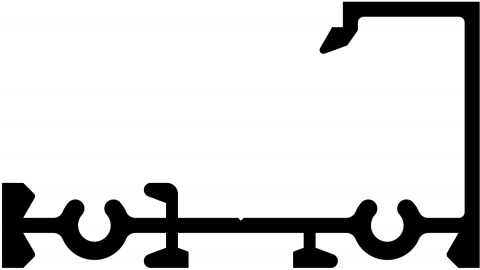

004 45mm x 25mm	Glazing Base Accepts 005, 006, 007, 008 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	00427 00437 00465

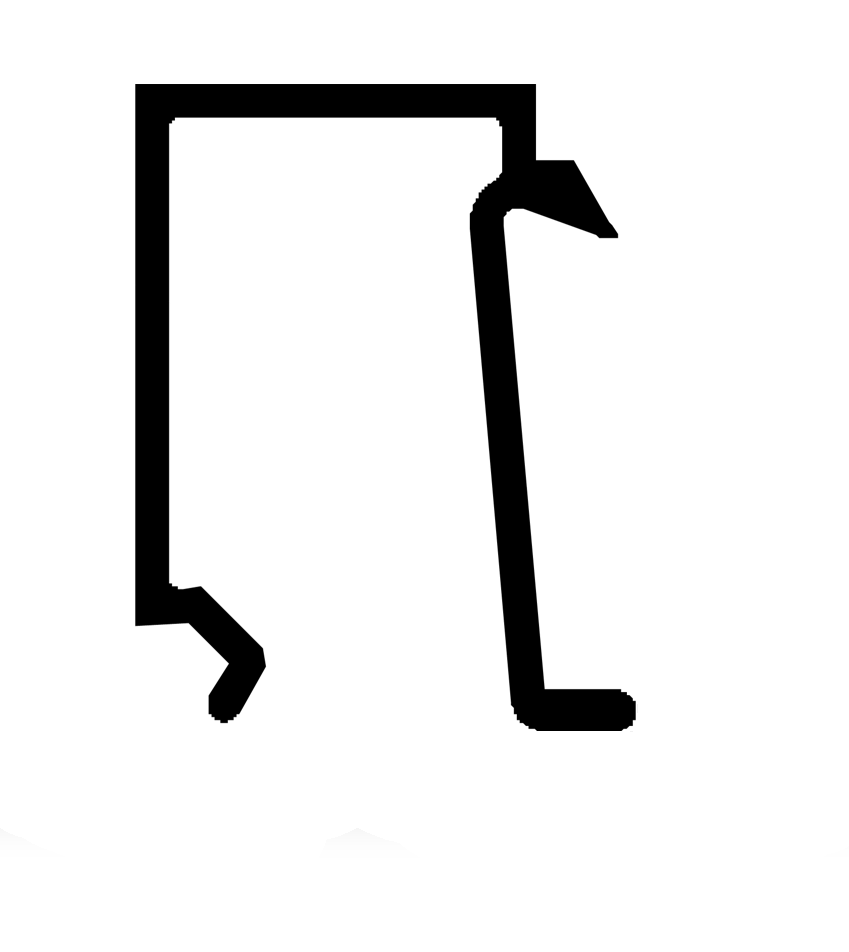

005 15mm x 20.4mm	Glazing Bead Accepts 003, 004, 6413DGB, 9213DGB	00527 00537 00565
006 45mm x 9.87mm	Frame Cover Accepts 003, 004	00627 00637 00665

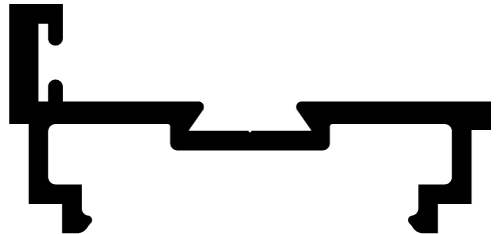

002	40mm Door Frame 13mm deep Accepts 003,004 Mohair 007MB, Bubble seal 007B Corner angle 007EA Cover strip FBLM	00227 00237

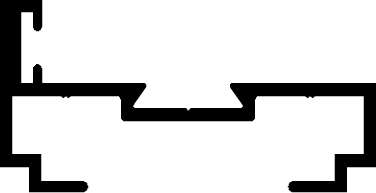

007 45mm x 23mm	35mm Door Frame 13mm deep Accepts 003, 004 Mohair doorstop code 007MB Bubble seal doorstop code 007B Corner staking angle code 007EA Fixing cover strip code FBLM	00721 00727 00737

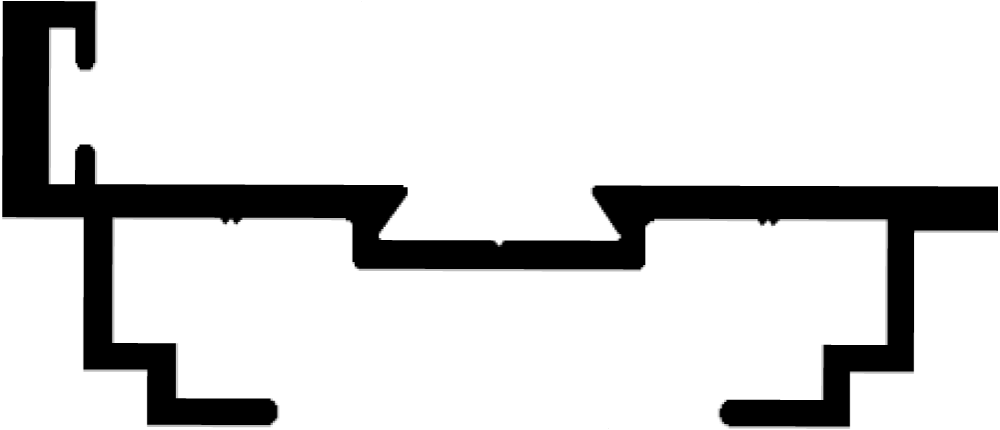

008 54mm x 23mm	45mm Door Frame 13mm deep Accepts 003, 004 Mohair doorstop code 007MB Bubble seal doorstop code 007B Corner staking angle code 007EA Fixing cover strip code FBLM	00821 00827 00837

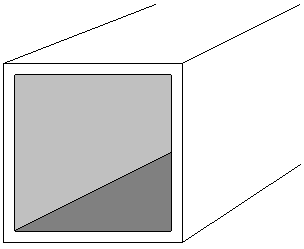

45 x 45 Box	45mm Square Box Section for use as a Stiffener for 007, 008	B45451627 B45451637

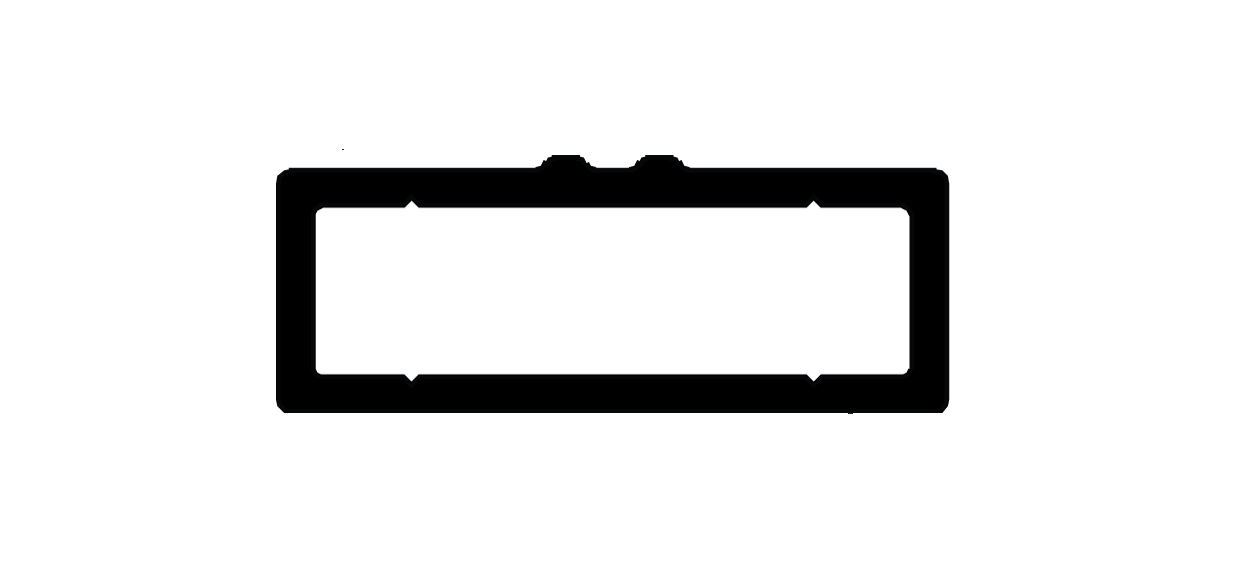

00T 25mm x 9mm	Plant on Transom 25mm x 9mm Used with black foam doubled sided Tape, different thicknesses to suit application Stocked in Black Satin	00T27 00T37 00T27B 00T37B
