Extrusions

Product	Description	Item Code

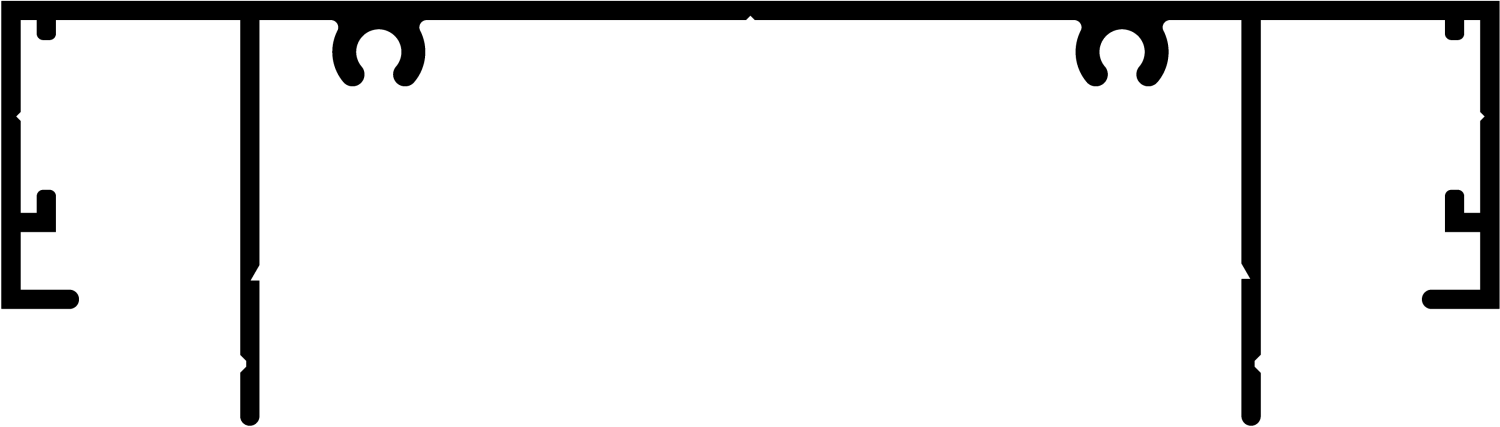

6410H 97.5mm x 20mm	Head/Wall Track Accepts AB, FP, MAP	6410H27 6410H37 6410H65

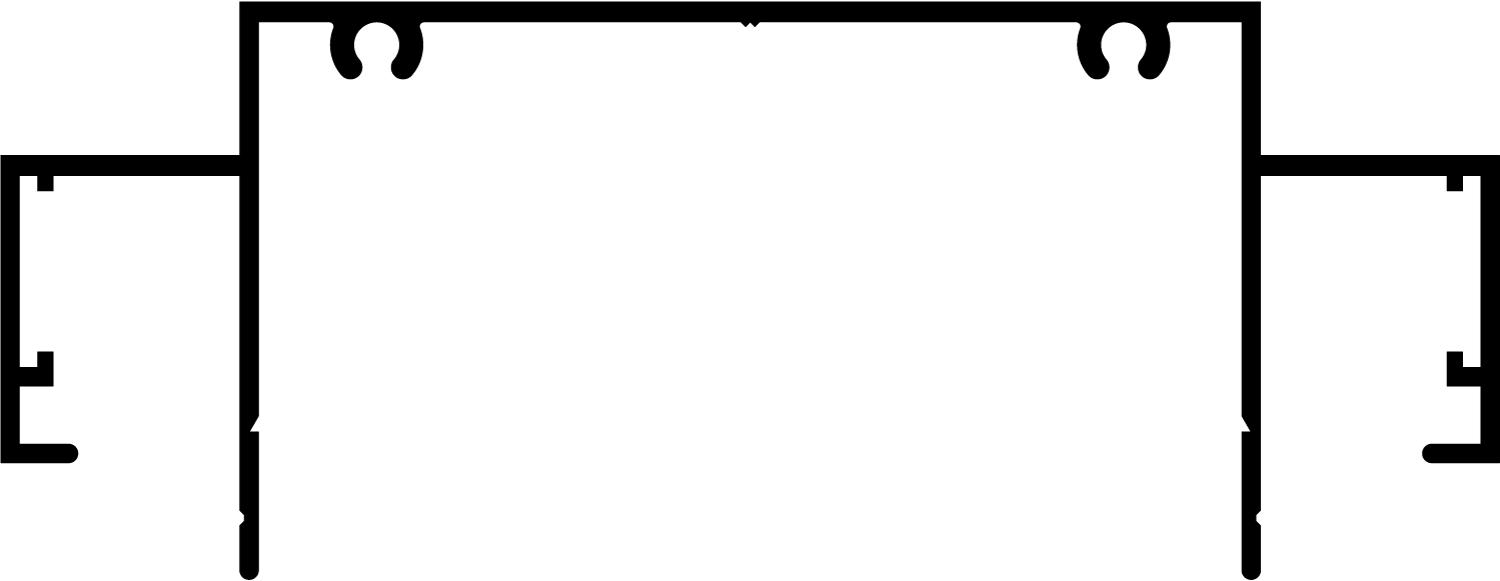

6410SH 97.5mm x 30mm	Shadowline Head/Wall Track Accepts AB, FP, MAP	6410SH27 6410SH37 6410SH65

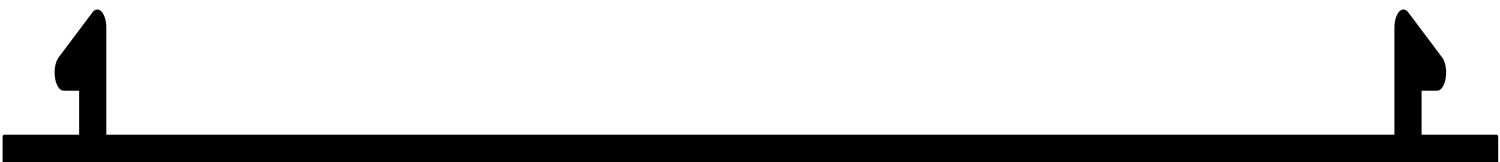

6410FP 97.5mm x 5.35mm	Flush Plate Accepts BA, FM, FLM, SH	6410FP27 6410FP37

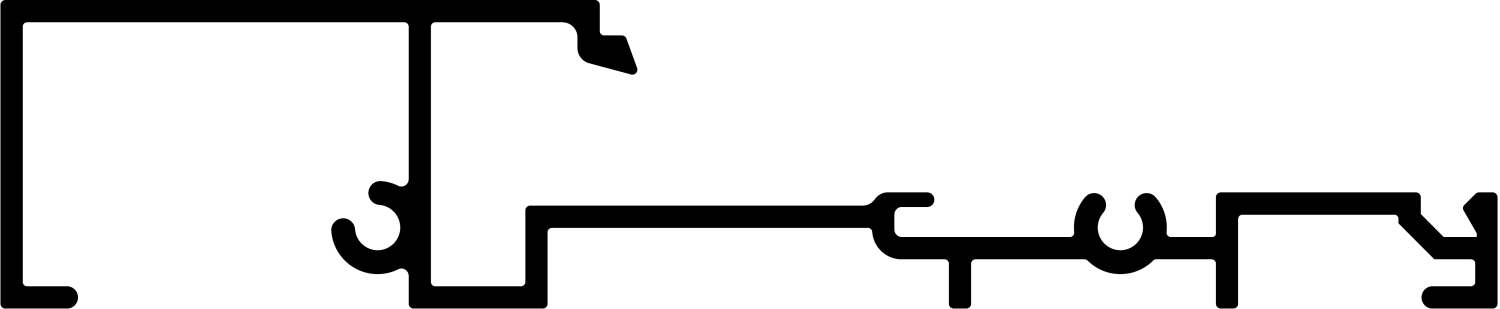

6410BA 97.5mm x 20mm	Glazing Base/Sill Accepts AB, MAP, FP, 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	6410BA27 6410BA37 6410BA65

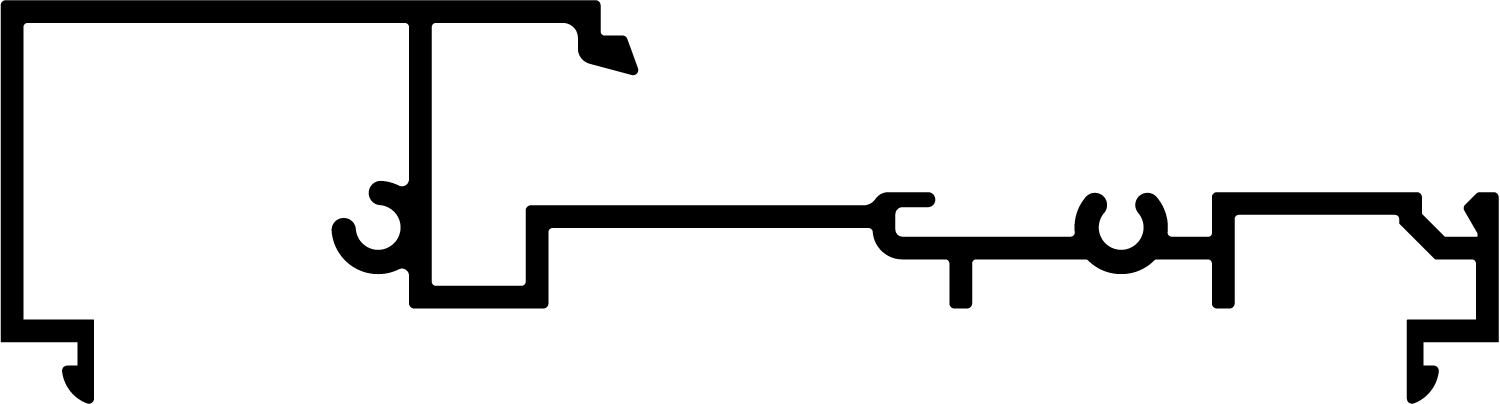

6410AB 97.5mm x 20mm	Adaptor Base/Sill Accepts BE, H, SH, FM, FLM, BA 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	6410AB27 6410AB37 6410AB65

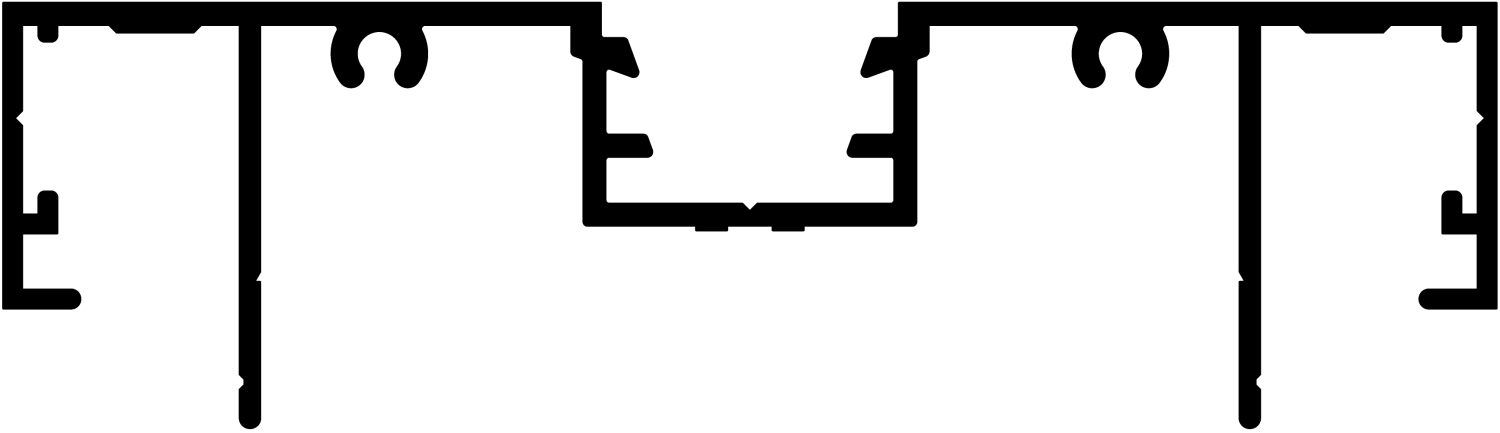

6410FM 97.5mm x 20mm	Finned Mullion/Transom Accepts AB, DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	6410FM27 6410FM37 6410FM65

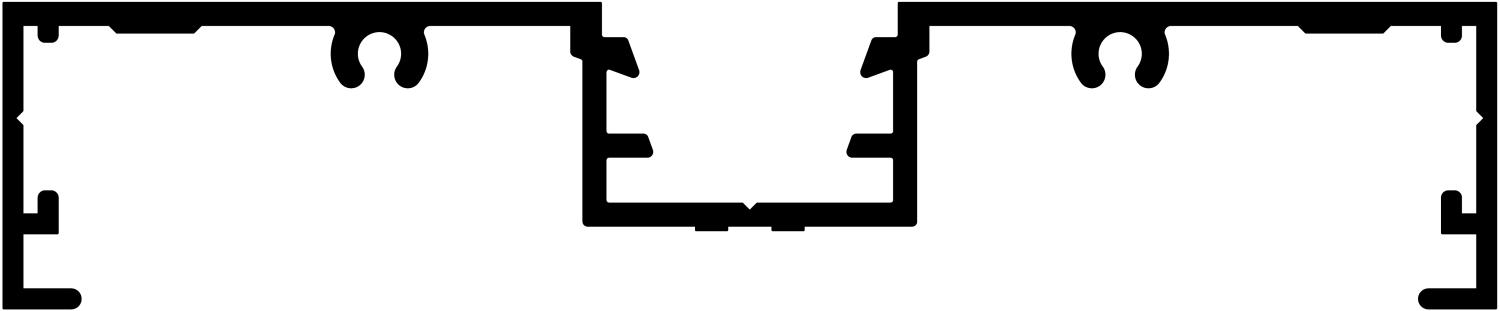

6410FLM 97.5mm x 20mm	Finless Mullion/Transom Accepts AB, DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	6410FLM27 6410FLM37 6410FLM65

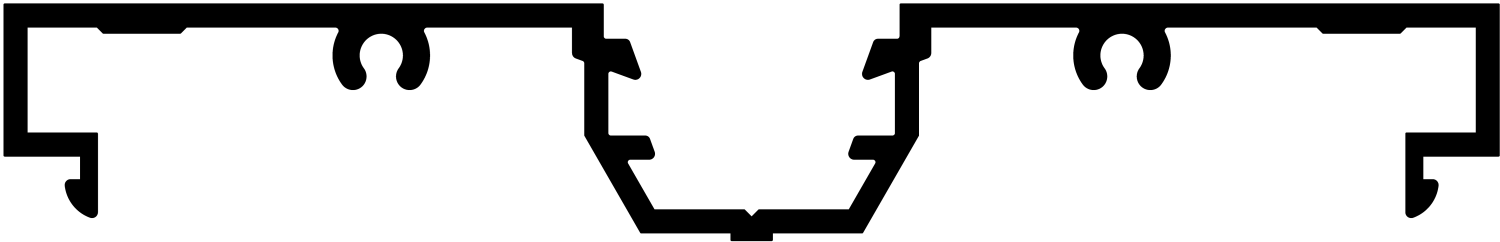

6410MAP 97.5mm x 10mm	Mating Adaptor Plate Accepts BA, DS, FM, FLM, H, PF, SH, 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass INFW2 one side	6410MAP27 6410MAP37 6410MAP65

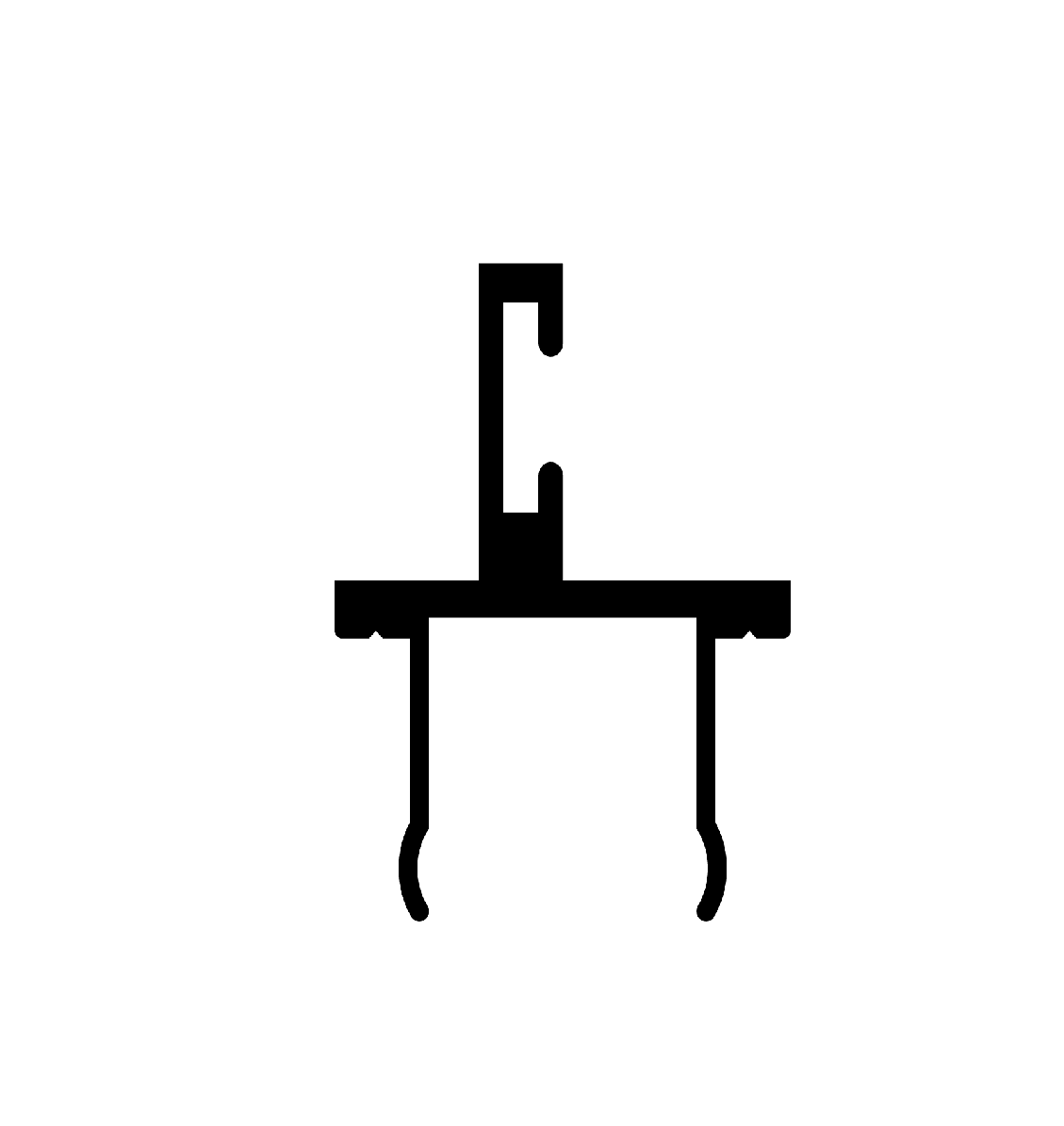

6410DS45	Door Stop Accepts 45mm Thick Door FM, FLM, MAP Mohair 007MB, Bubble seal 007	6410DS4521 6410DS4527 6410DS4537

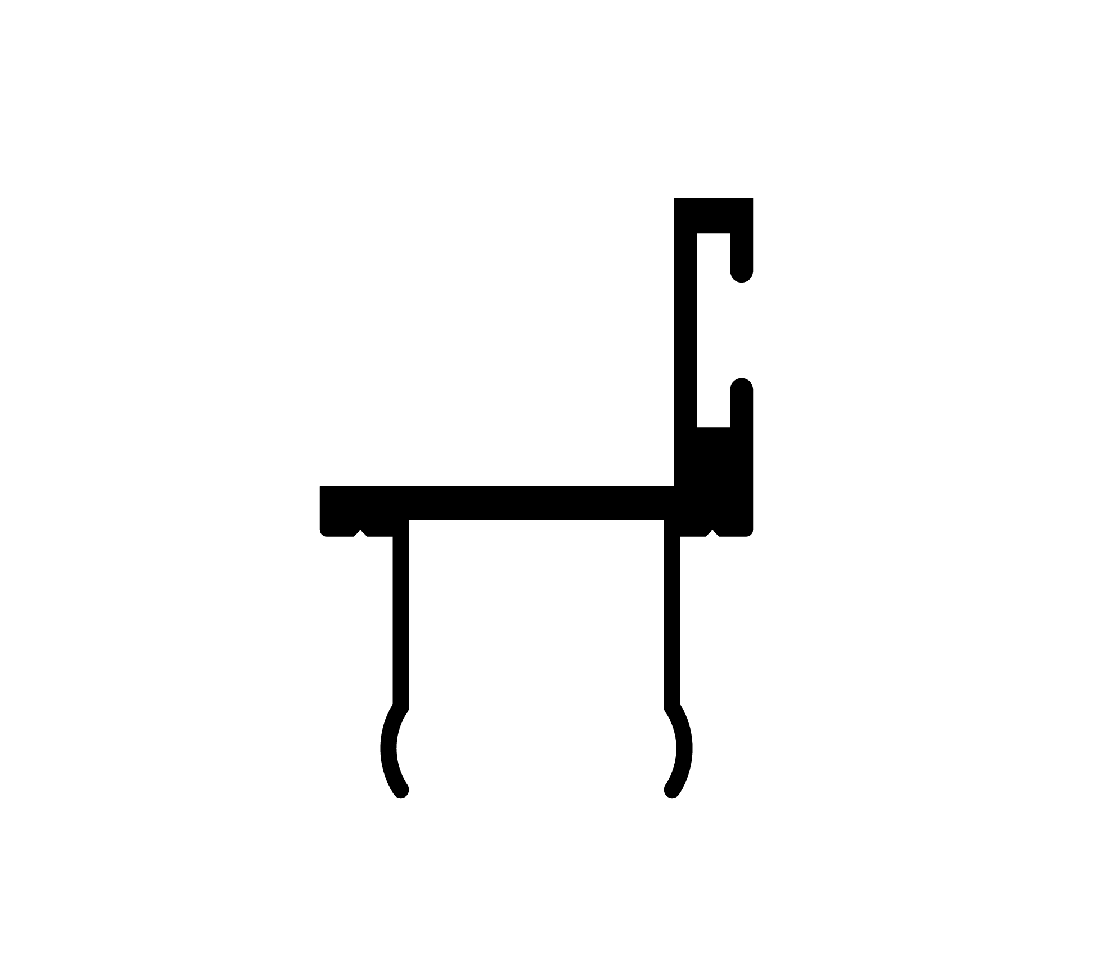

6410DS35	Door Stop Accepts 40mm Thick Door FM, MAP Mohair 007MB, Bubble seal 007B	6410DS3521 6410DS3527 6410DS3537

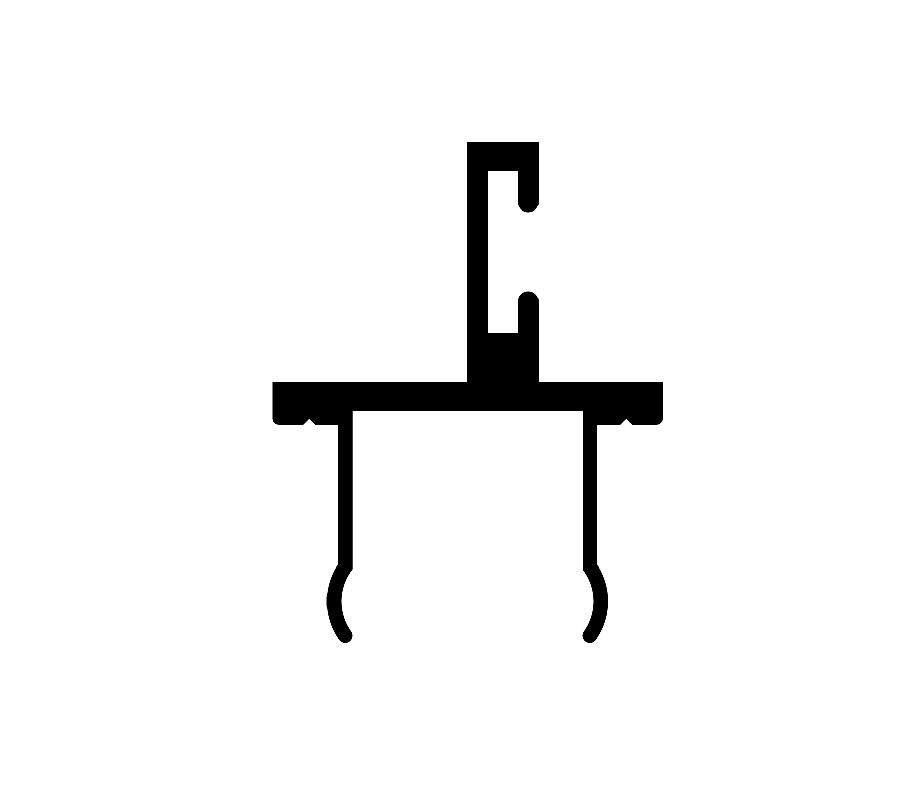

6413DS45	Door Stop Accepts 40mm Thick Door FM, FLM, MAP, Mohair 007MB, Bubble seal 007B	6413DS4521 6413DS4527 6413DS4537

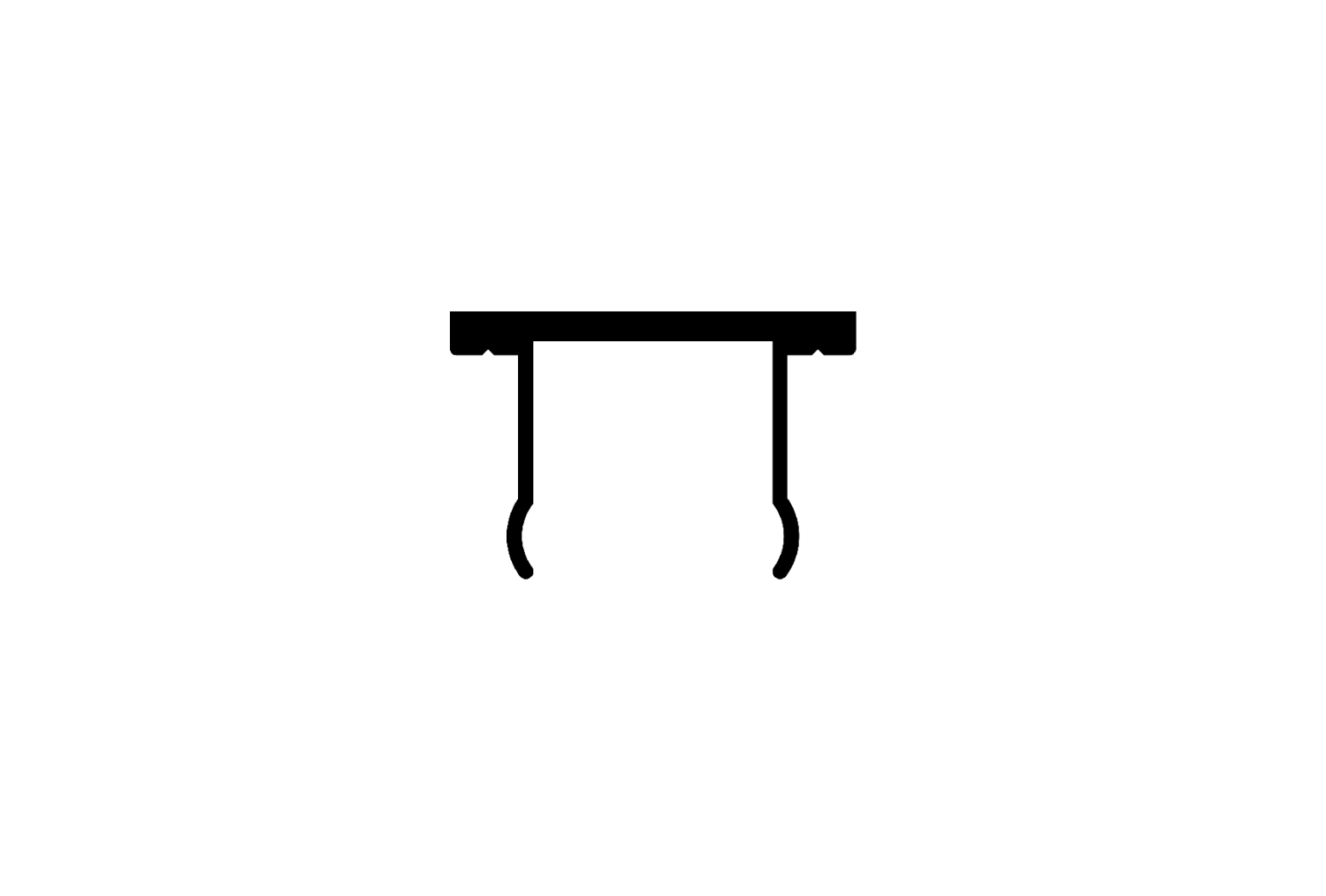

6410PF	Pocket Filler Accepts FM, MAP	64PF27 64PF37

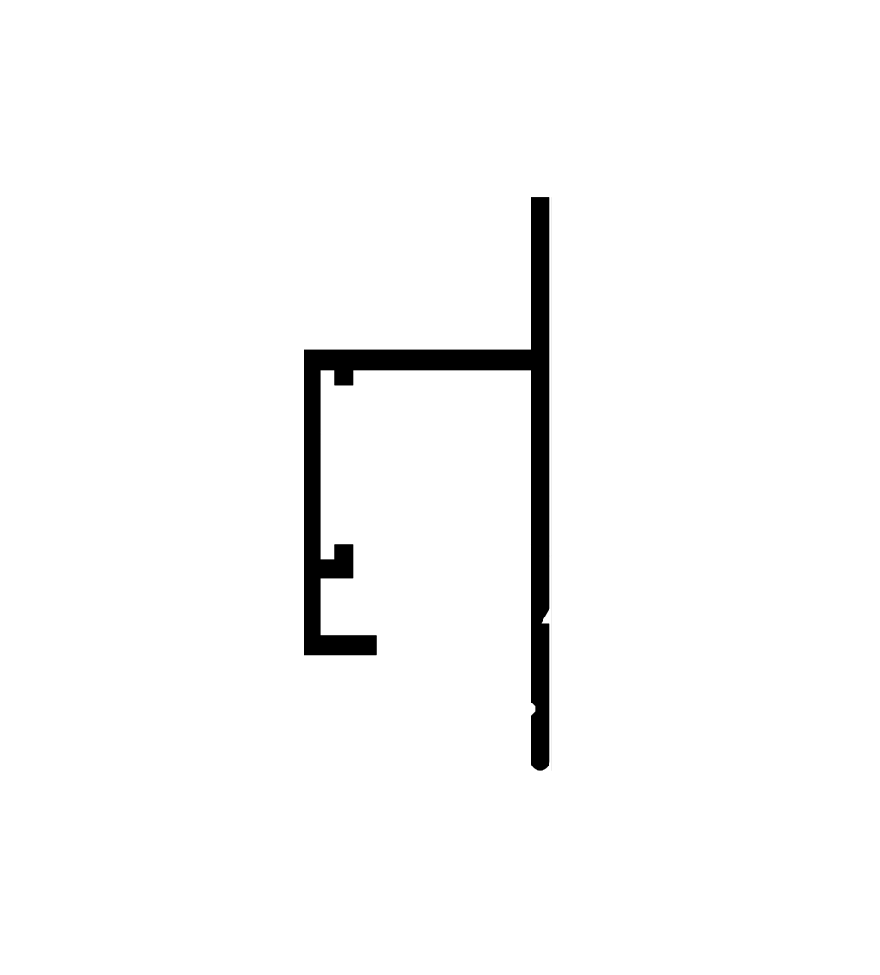

6410SC	Shadowline Casing Bead Accepts 10mm Plasterboard	6410SC27 6410SC37

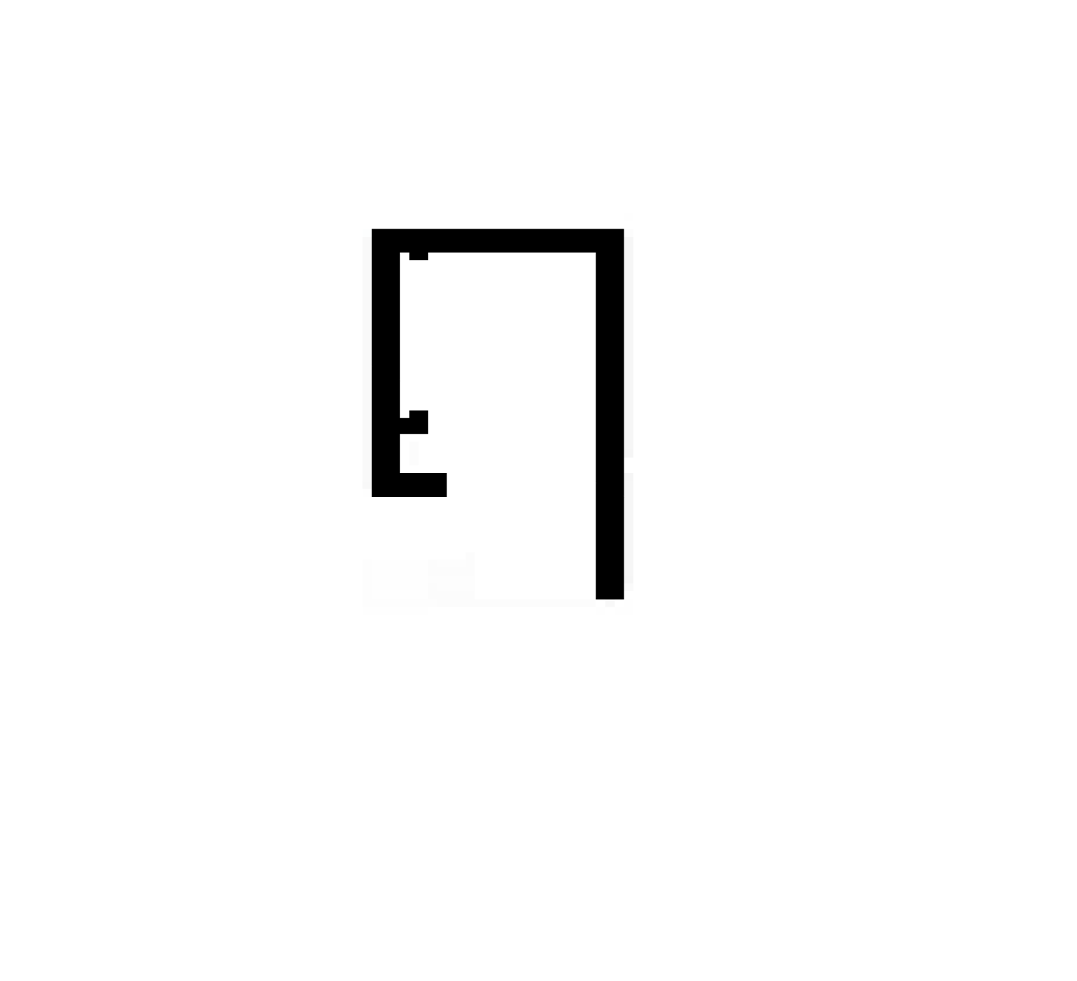

6410CB	Casing Bead Accepts 10mm Plasterboard	6410CB27 6410CB37
