Extrusions

Product	Description	Item Code

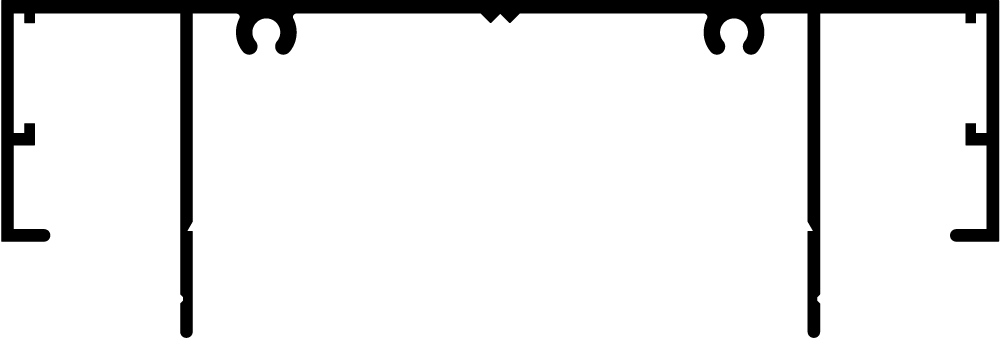

6413H 103.6mm x 25mm	Head/Wall Track Accepts FP, MAP	6413H27 6413H37 6413H65
6413SH 103.6mm x 35mm	Shadowline Head/Wall Track Accepts FP, MAP	6413SH27 6413SH37 6413SH65
6413FP 103.6mm	Flush Plate Accepts BA, DGB, DGM, FM, FLM, H, SH	6413FP27 6413FP37

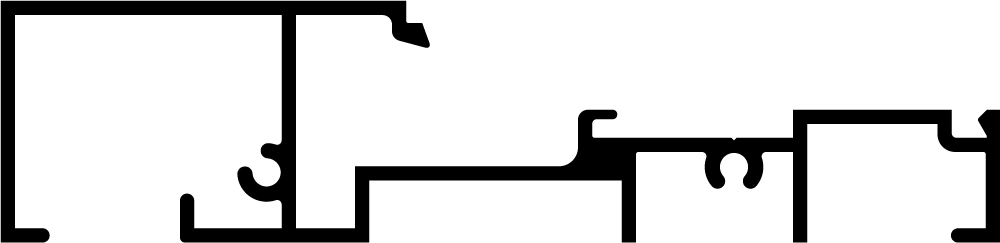

6413BA 103.6mm x 25mm	Glazing Base/Sill Accepts BE, FP, MAP 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	6413BA27 6413BA37 6413BA65

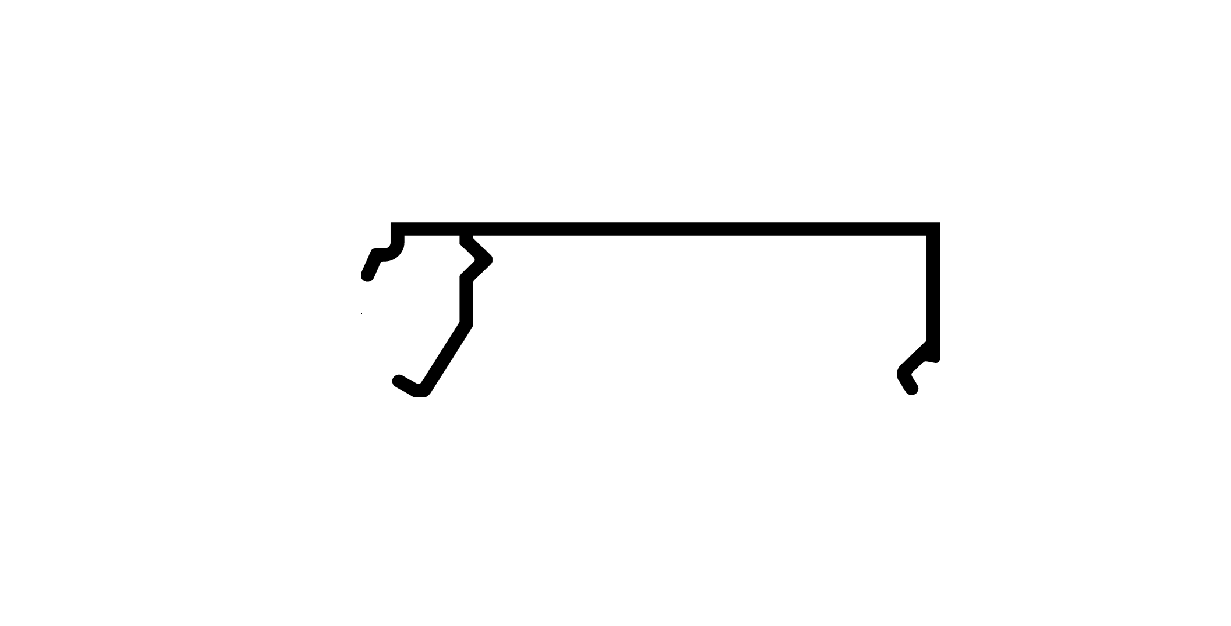

6413BE 44.5mm x 14.2mm	Glazing Bead Accepts BA	6413BE27 6413BE37 6413BE65

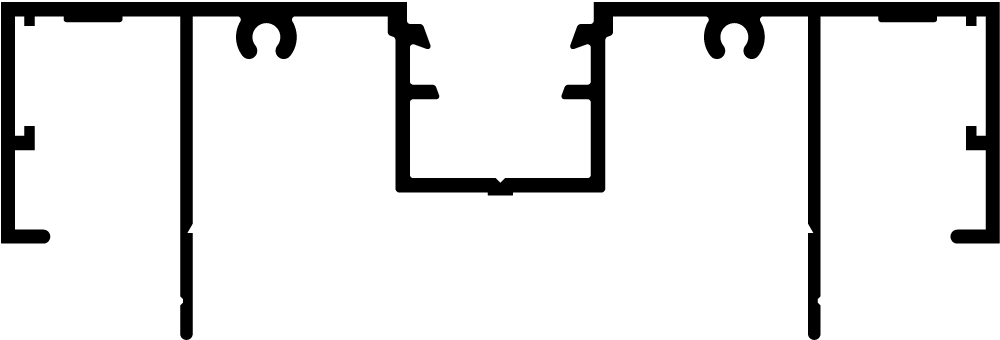

6413FM 103.6mm x 25mm	Finned Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	6413FM27 6413FM37 6413FM65

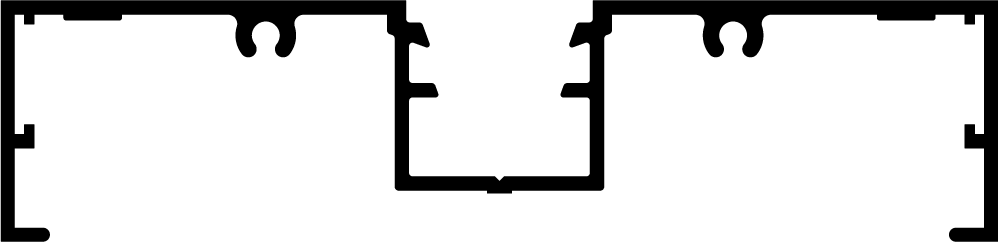

6413FLM 103.6mm x 25mm	Finless Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	6413FLM27 6413FLM37 6413FLM65

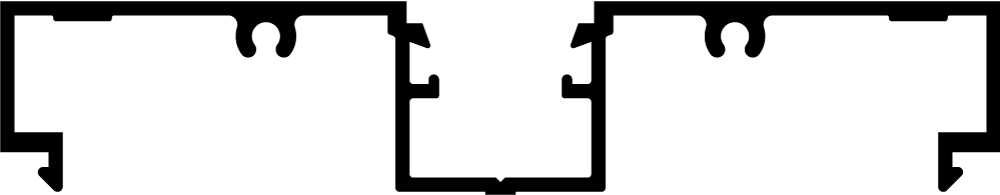

6413MAP 103.6mm x 15mm	Mating Adaptor Plate Accepts BA, DGG, DGM, DS, FM FLM, H, PF, SH 6.38 glass P40 both sides 8.38 glass CW238 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	6413MAP27 6413MAP37 6413MAP65
6413DS45	Door Stop Accepts 45mm Thick Door FM, FLM, MAP, Mohair 007MB, Bubble seal 007B	6413DS4521 6413DS4527 6413DS4537
6413DS35	Door Stop Accepts 35mm Thick Door FM, FLM, MAP Mohair 007MB, Bubble seal 007B	6413DS3521 6413DS3527 6413DS3537
6410DS35	Door Stop Accepts 40mm Thick Door FM, FLM, MAP Mohair 007MB, Bubble seal 007B	6410DS3521 6410DS3527 6410DS3537
64PF	Pocket Filler Accepts FM, MAP	64PF27 64PF37
6413SC	Shadowline Casing Bead Accepts 13mm Plasterboard	6413SC3
6413CB	Casing Bead Accepts 13mm Plasterboard	6413CB27 6413CB37

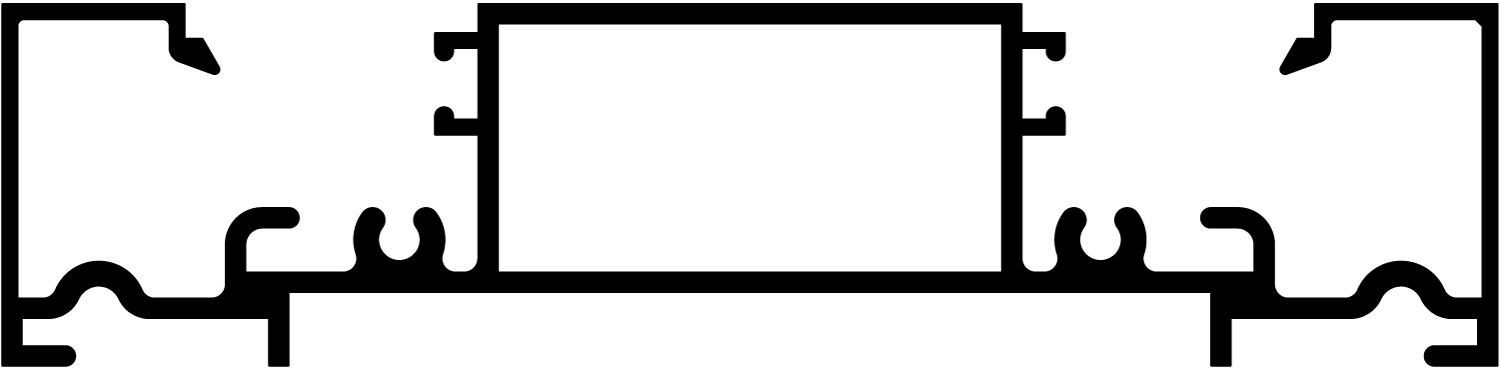

6413DGM 103.6mm x 25mm	Double glazed mullion Accepts FP, MAP, DGMAP 6.38 glass CW2 and P40 10.38 glass CWI and CW1P41 12.38 glass INFW2 one side	6413DGM27 6413DGM37

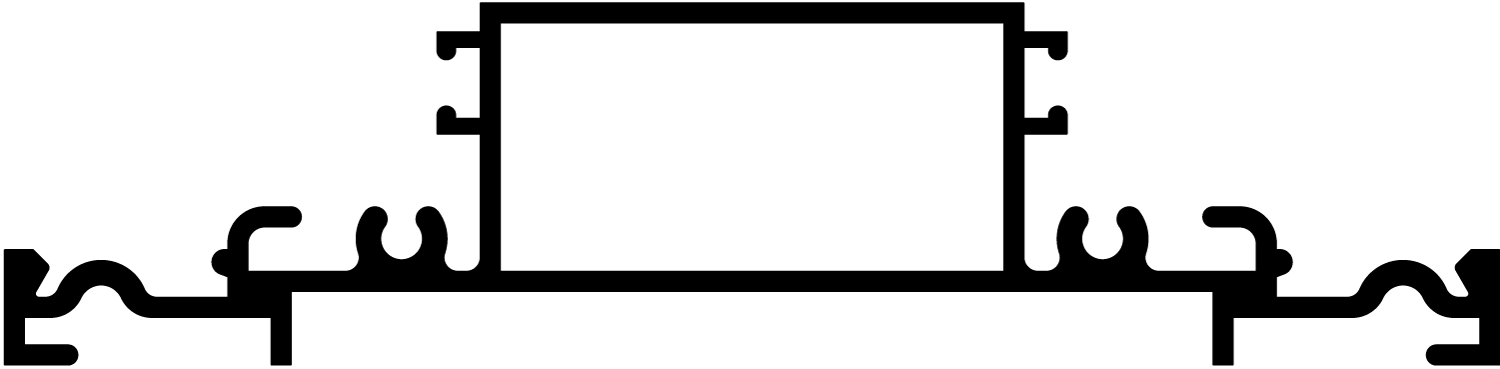

6413DGB 103.6mm x 25mm	Double glazed base Accepts , FP, MAP, 005 6.38 glass CW2 and P40 10.38 glass CWI and CW1P41 12.38 glass INFW2 one side	6413DGB27 6413DGB37
6413DGMAP 103.6mm x 25mm	Double glazed mullion adaptor plate Accepts DGB, DGM, FLM, FM 6.38 glass CW2 and P40 10.38 glass CW1 and CW1P41 12.38 glass INFW2 one side	6413DGMAP27 6413DGMAP37
005 15mm x 20.4mm	Glazing Bead Accepts 003, 004, 6413DGB, 9213DGB	00527 00537 00565
