Extrusions

Product	Description	Item Code

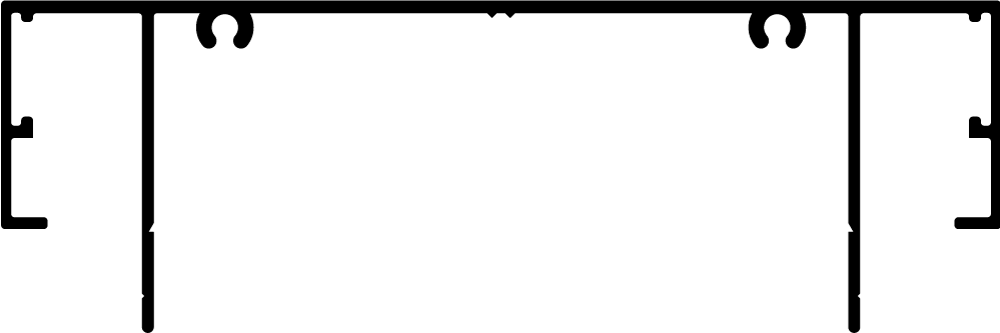

7610H 109.6mm x 25mm	Head/Wall Track Accepts FP, MAP	7610H27 7610H37 7610H65

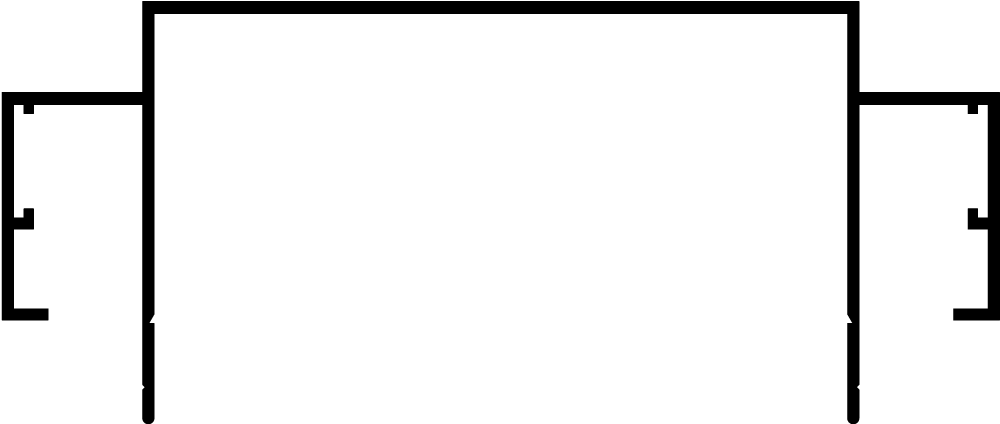

7610SH 109.6mm x 35mm	Shadowline Head/Wall Track Accepts FP, MAP	7610SH27 7610SH37 7610SH65
7610FP 109.6mm	Flush Plate Accepts BA, FM, FP, H, MAP, SH	7610FP27 7610FP37

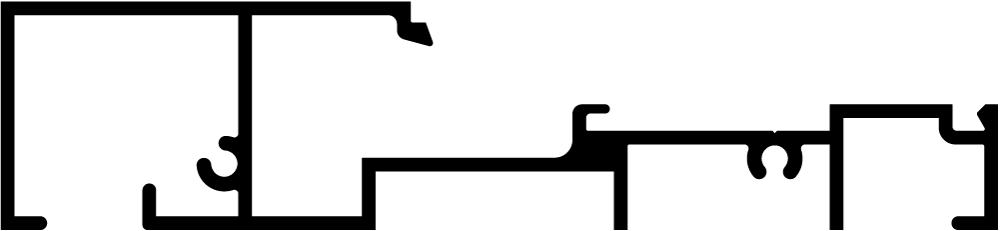

7610BA 109.6mm x 25mm	Glazing Base/Sill 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7610BA27 7610BA37 7610BA65

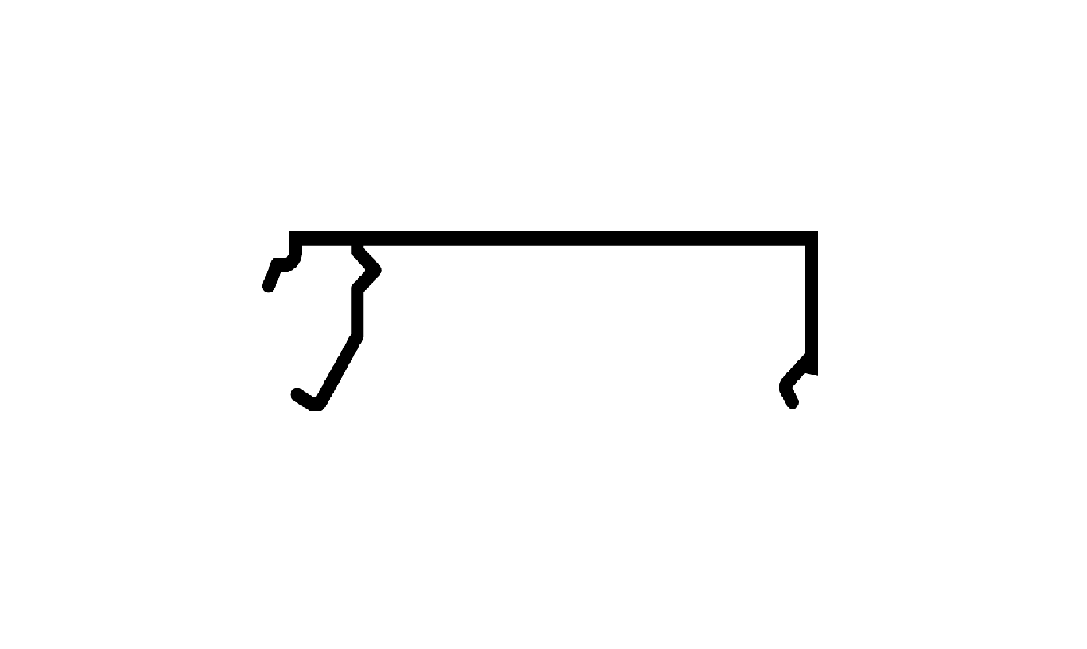

7610BE 45.2mm x 11.3mm	Glazing Bead Accepts BA	7610BE27 7610BE37 7610BE65

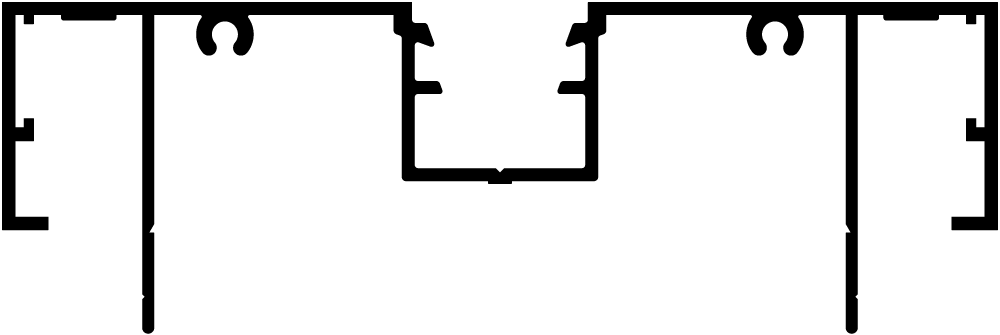

7610FM 109.6mm x 25mm	Finned Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7610FM27 7610FM37 7610FM65

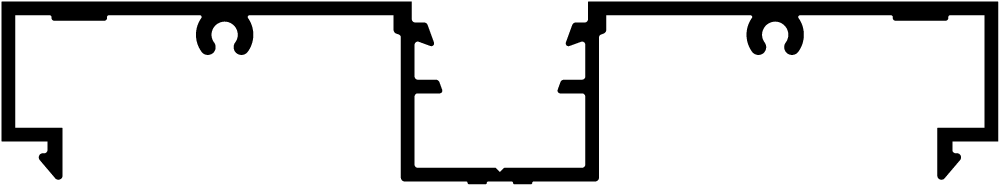

7610MAP 109.6mm x 15mm	Mating Adaptor Plate Accepts BA, DS, FM, H, PF, SH 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7610MAP27 7610MAP37 7613MAP65

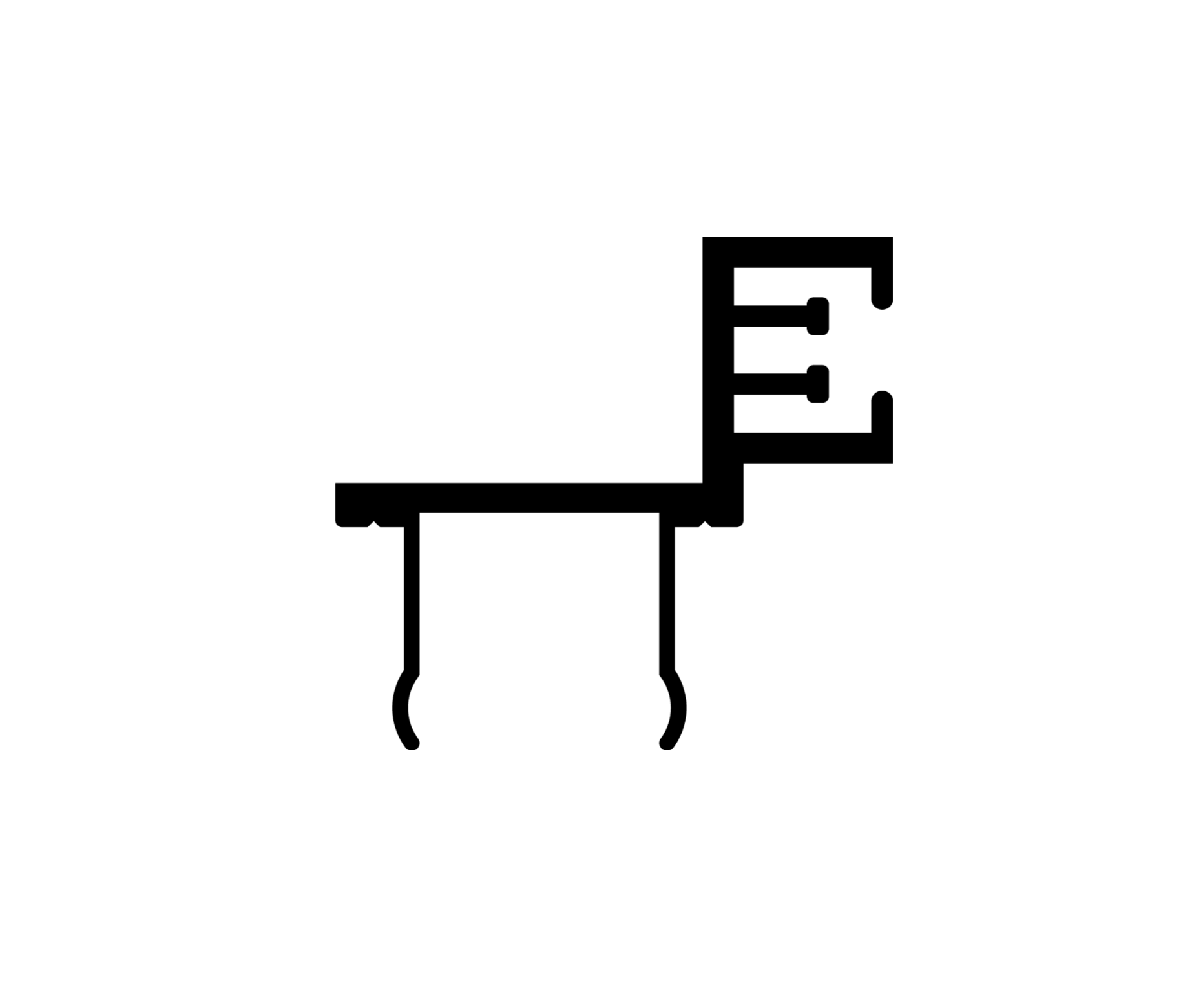

7610DS35	Door Stop Accepts 35mm Thick Door, FM, MAP Mohair 007MB, Bubble seal 007B	7610DS3521 7610DS3527 7610DS3537

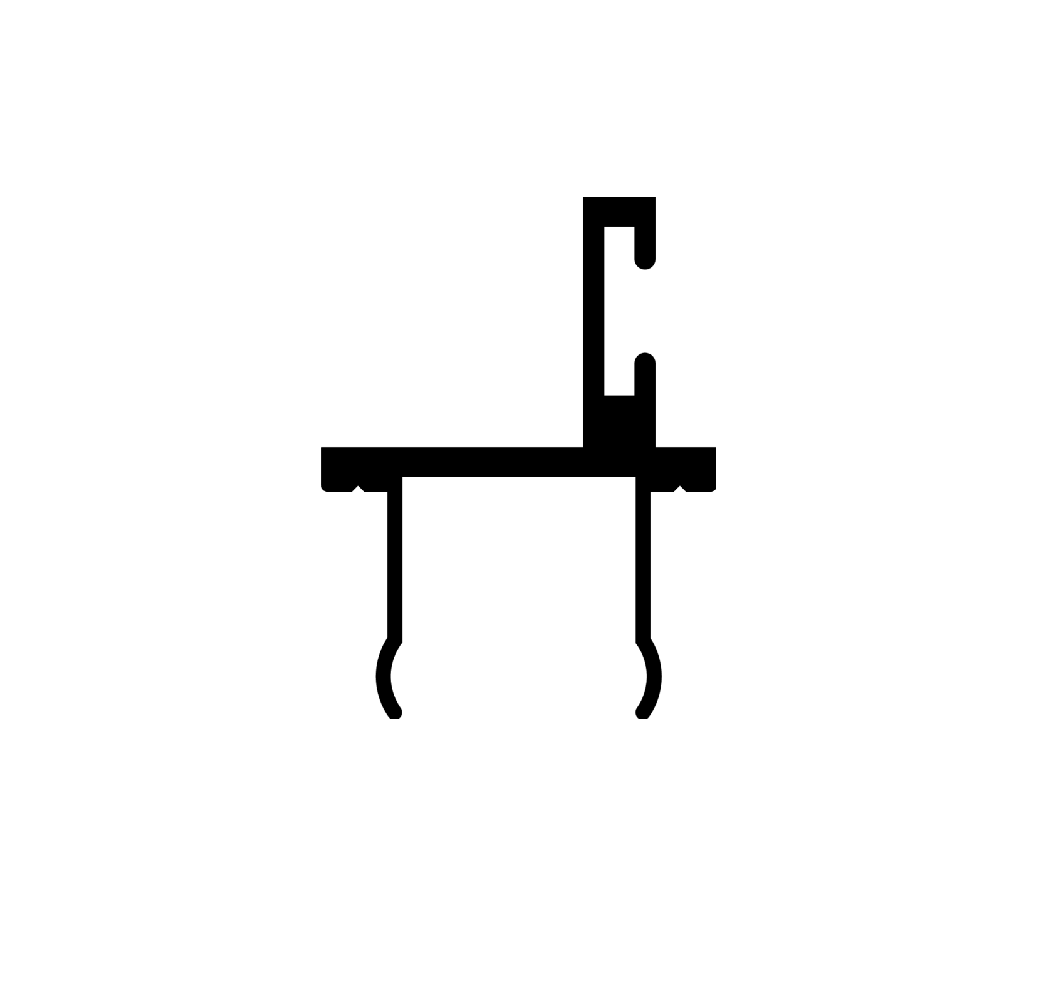

7610DS45	Door Stop Accepts 45mm Thick Door, FM, MAP Mohair 007MB, Bubble seal 007B	7610DS4521 7610DS4527 7610DS4537
6410DS35	Door Stop Accepts 40mm Thick Door FM, MAP Mohair 007MB, Bubble seal 007B	6410DS3521 6410DS3527 6410DS3537

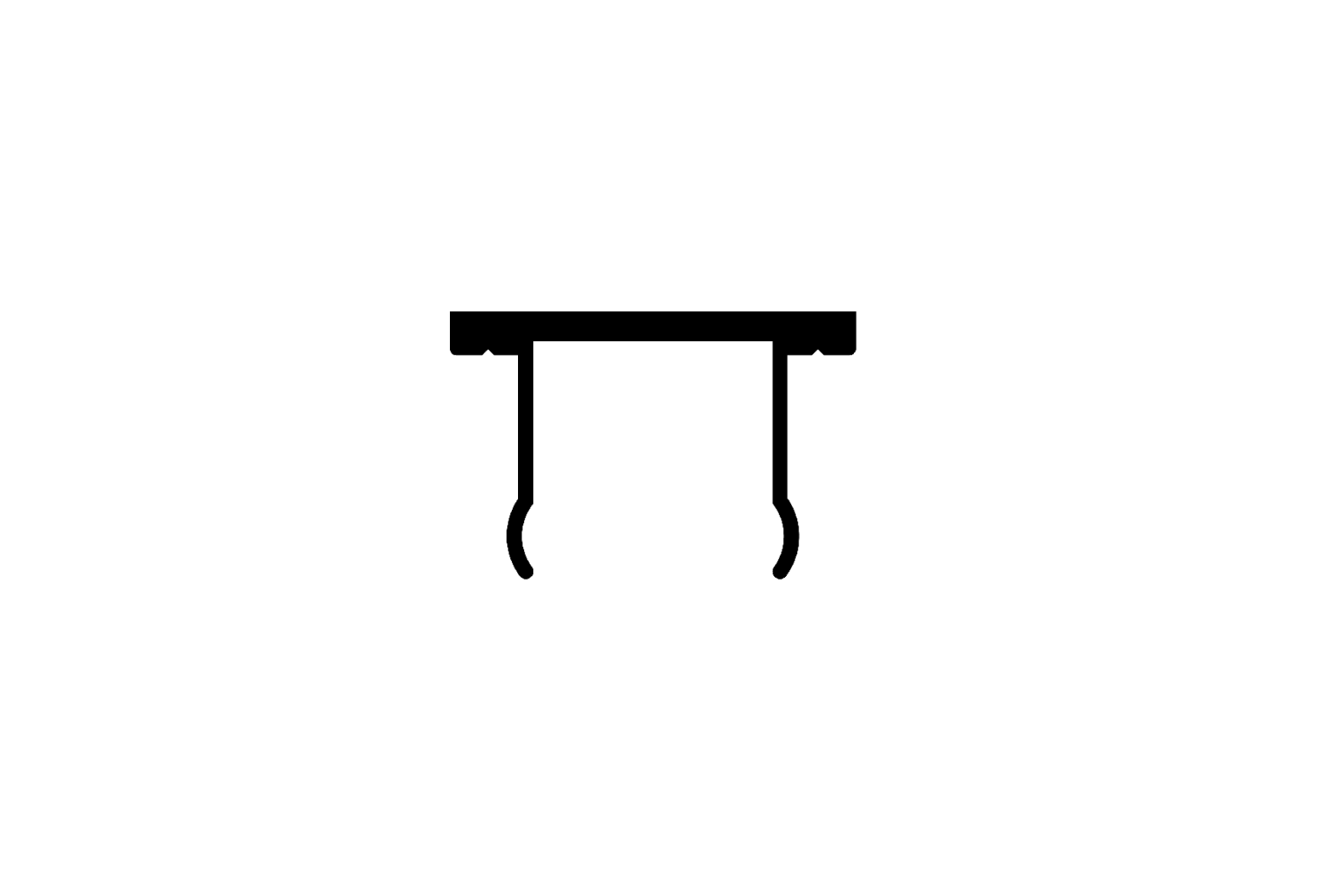

64PF	Pocket Filler Accepts FM, MAP	64PF27 64PF37
6413SC	Shadowline Casing Bead Accepts 13mm Plasterboard	6413SC3
6413CB	Casing Bead Accepts 13mm Plasterboard	6413CB27 6413CB37
