Extrusions

Product	Description	Item Code

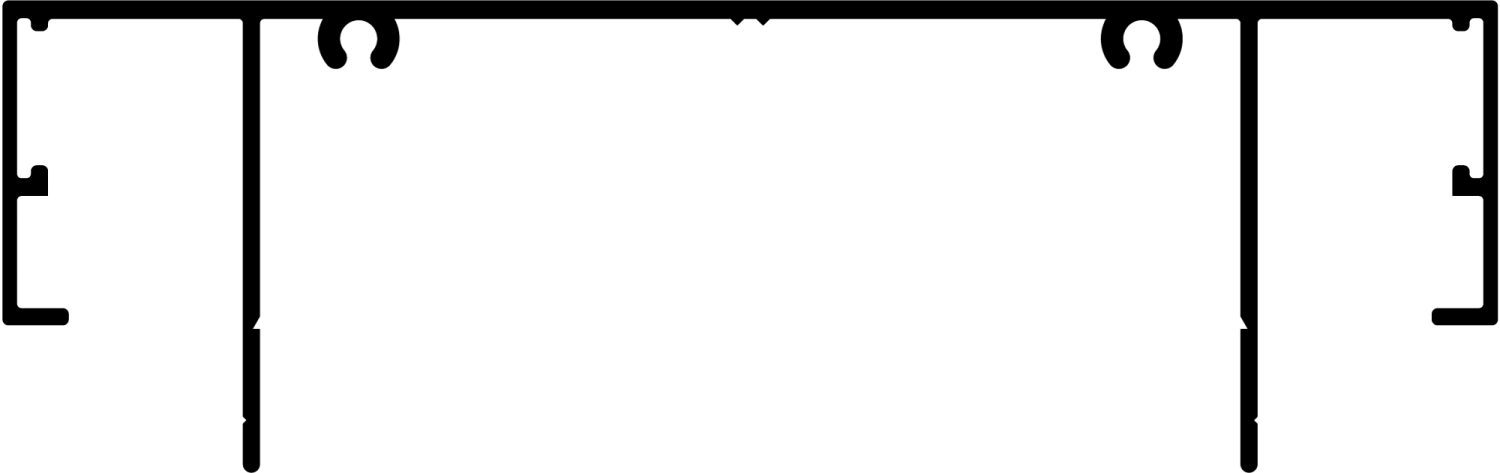

7613H 117mm x 25mm	Head/Wall Track Accepts FP, MAP	7613H27 7613H37 7613H65

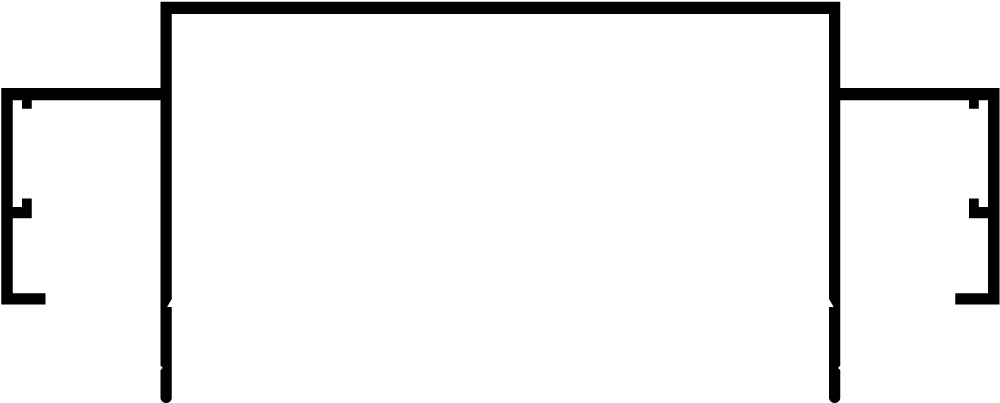

7613SH 117mm x 35mm	Shadowline Head/Wall Track Accepts FP, MAP	7613SH27 7613SH37 7613SH65
7613FP 115.6mm	Flush Plate Accepts BA, FM, FLM, H, SH	7613FP27 7613FP37

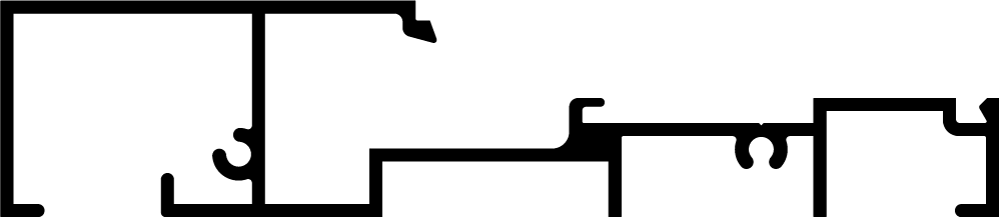

7613BA 117mm x 25mm	Glazing Base/Sill Accepts BE, FP, MAP 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7613BA27 7613BA37 7613BA65

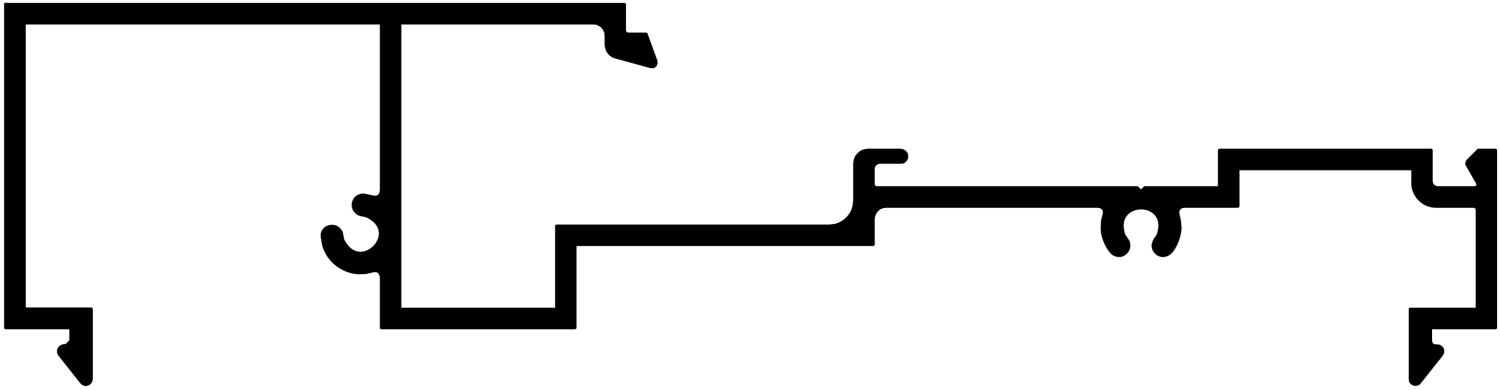

7613AB 117mm x 25mm	Adaptor Base/Sill Accepts BE, FP, MAP 6.38 glass P40, 10.38 glass P41 12.38 glass P41 one side	7613AB27 7613AB37 7613AB65
7613BE 48.2mm x 11.3mm	Glazing Bead Accepts BA	7613BE27 7613BE37 7613BE65

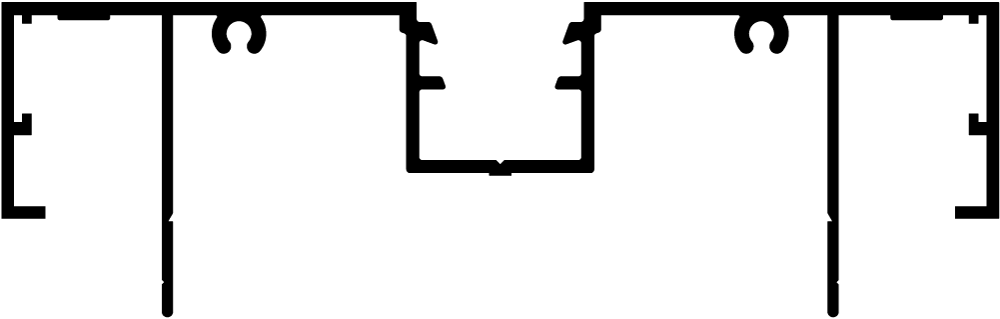

7613FM 117mm x 25mm	Finned Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7613FM27 7613FM37 7613FM65

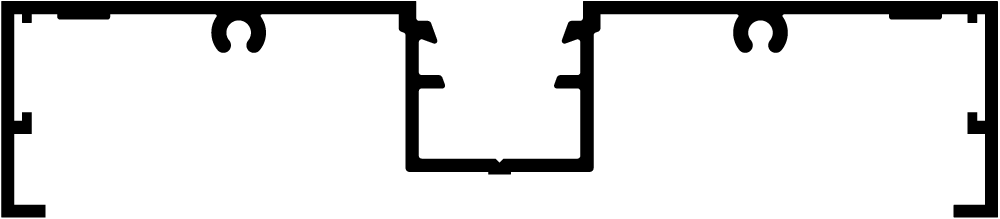

7613FLM 117mm x 25mm	Finnless Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7613FLM27 7613FLM37 7613FLM65

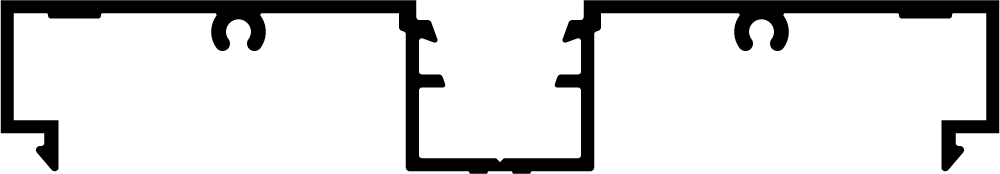

7613MAP 117mm x 15mm	Mating Adaptor Plate Accepts BA, DS, FLM, FM, H, PF, SH 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	7613MAP27 7613MAP37 7613MAP65
6410DS35	Door Stop Accepts 45mm Thick Door FM, MAP Mohair 007MB, Bubble seal 007B	6410DS3521 6410DS3527 6410DS3537
7613DS35	Door Stop Accepts 35mm Thick Door FM, MAP Mohair 007MB, Bubble seal 007B	7613DS3521 7613DS3527 7613DS3537
6413DS35	Door Stop Accepts 40mm Thick Door FM, FLM, MAP Mohair 007MB, Bubble seal 007B	6413DS3521 6413DS3527 6413DS3537
64PF	Pocket Filler Accepts FM, MAP	64PF27 64PF37
6413SC	Shadowline Casing Bead Accepts 13mm Plasterboard	6413SC3
6413CB	Casing Bead Accepts 13mm Plasterboard	6413CB27 6413CB37
