Extrusions

Product	Description	Item Code

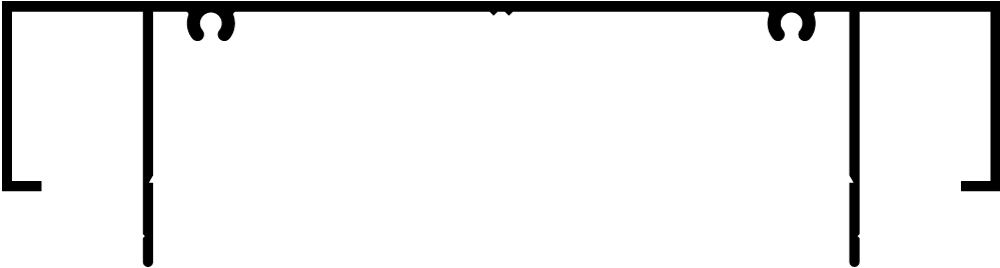

9213H 131.6mm x 25mm	Head/Wall Track Accepts FP, MAP	9213H27 9213H37 9213H65

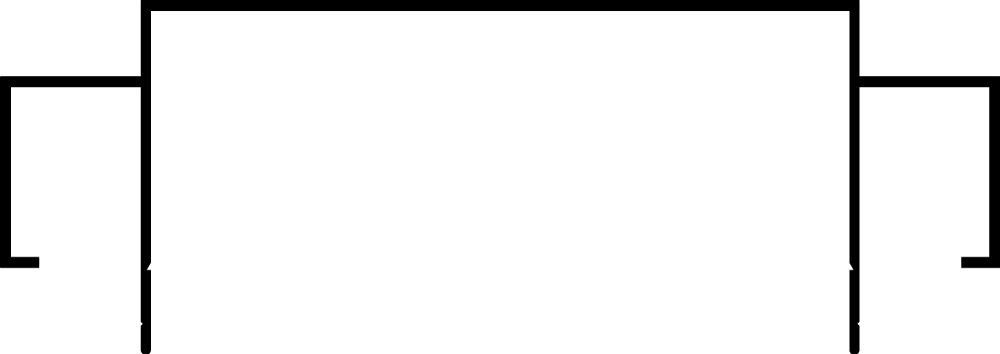

9213SH 131.6mm x 25mm	Shadowline Head/Wall Track Accepts FP, MAP	9213SH27 9213SH37 9213SH65
9213FP 131.6mm	Flush Plate Accepts BA, DGM, FM, H, SH	9213FP27 9213FP37

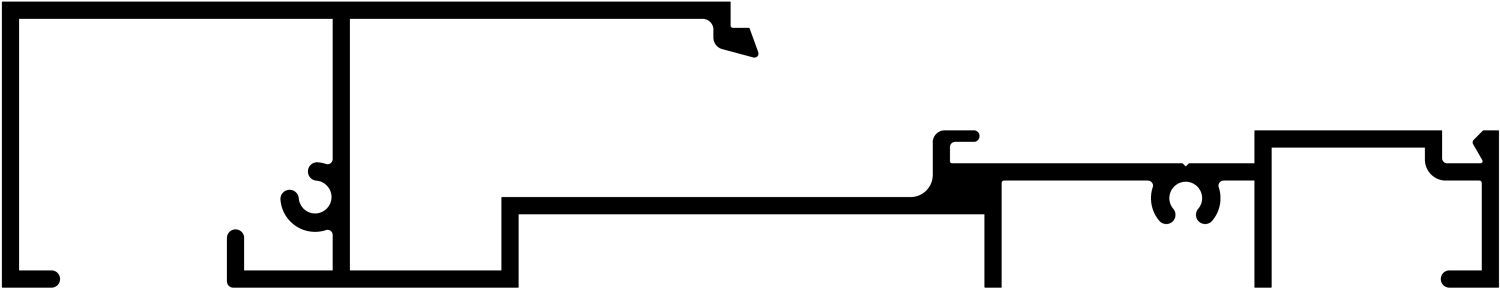

9213BA 131.6mm x 25mm	Glazing Base/Sill Accepts BE, FP, MAP 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	9213BA27 9213BA37 9213BA65

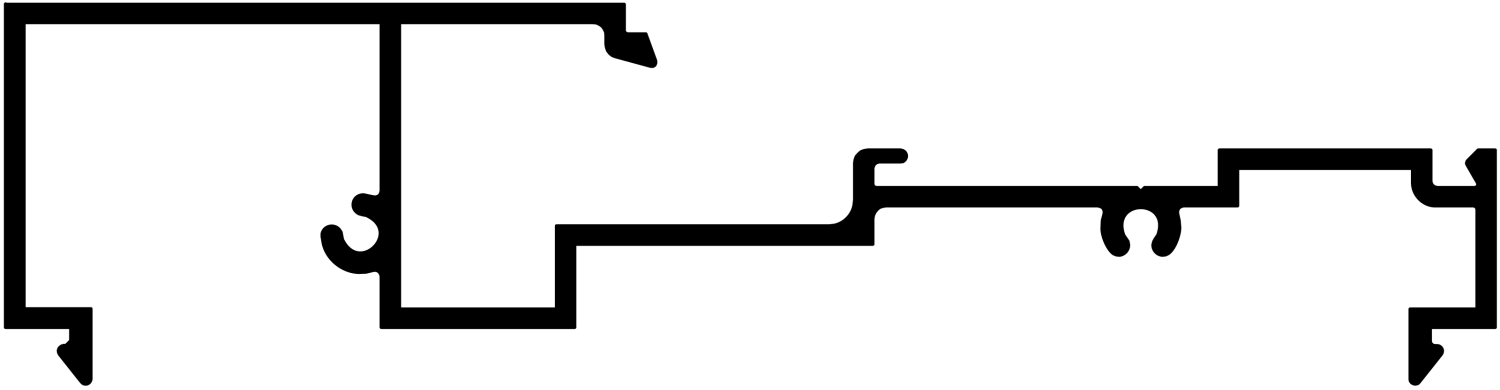

9213AB	Adaptor Base/Sill Accepts BE, FP, MAP 6.38 glass P40, 10.38 glass P41 12.38 glass P41 one side	9213AB27 9213AB37 9213AB65
7613BE 48.2mm x 11.3mm	Glazing Bead Accepts BA	7613BE27 7613BE37 7613BE65

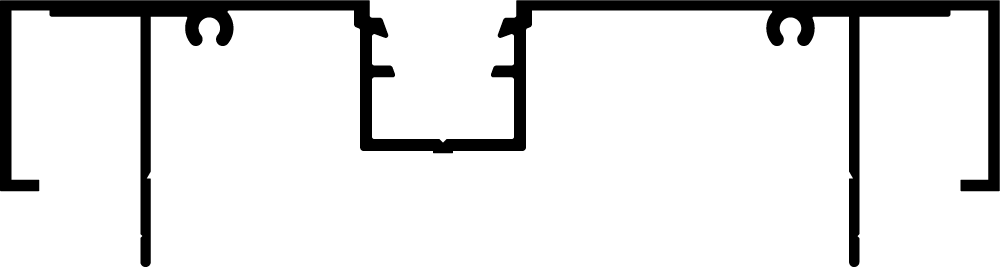

9213FM 131.6mm x 25mm	Finned Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	9213FM27 9213FM37 9213FM65

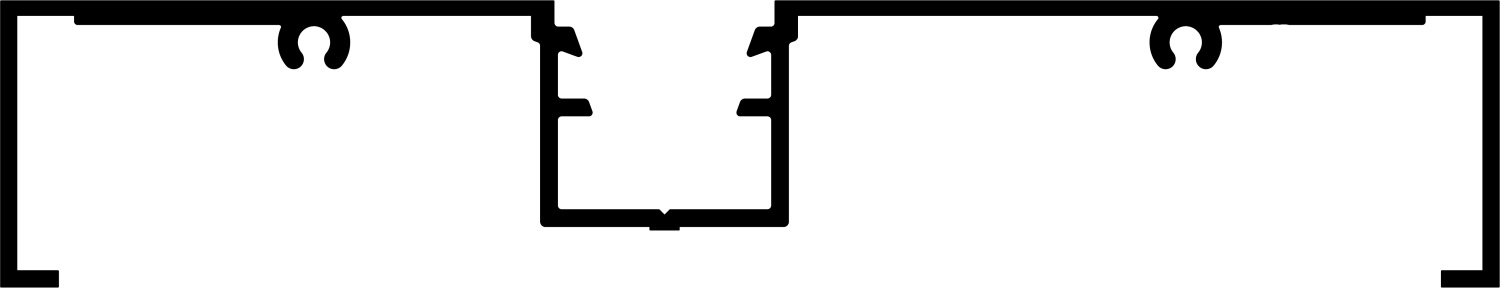

9213FLM 131.6mm x 25mm	Finless Mullion/Transom Accepts DS, FP, MAP, PF 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	9213FLM27 9213FLM37 9213FLM65

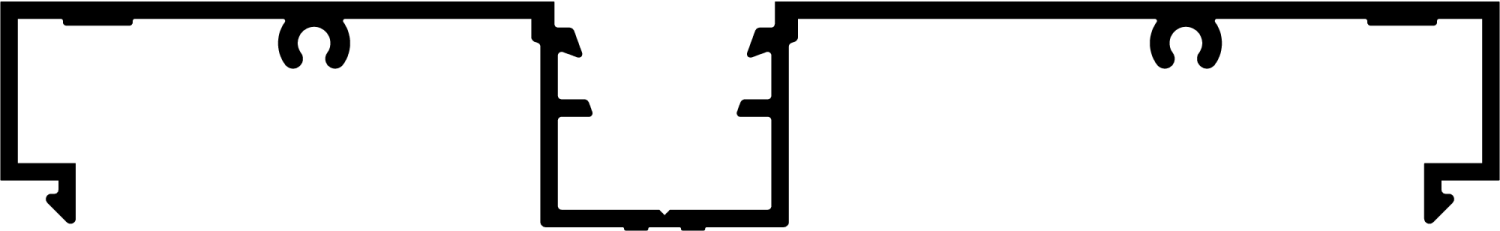

9213MAP 131.6mm x 25mm	Mating Adaptor Plate Accepts AB, DGM, DS, FM, H, SH 6.38 glass P40 both sides 8.38 glass CW328 both sides 10.38 glass P41 both sides 12.38 glass P41 one side	9213MAP27 9213MAP37 9213MAP65
6410DS35	Door Stop Accepts 40mm Thick Door FM, MAP Mohair 007MB, Bubble seal 007B	6410DS3521 6410DS3527 6410DS3537
7613DS35	Door Stop Accepts 35mm Thick Door FM, MAP Mohair 007MB, Bubble seal 007B	7613DS3521 7613DS3527 7613DS3537

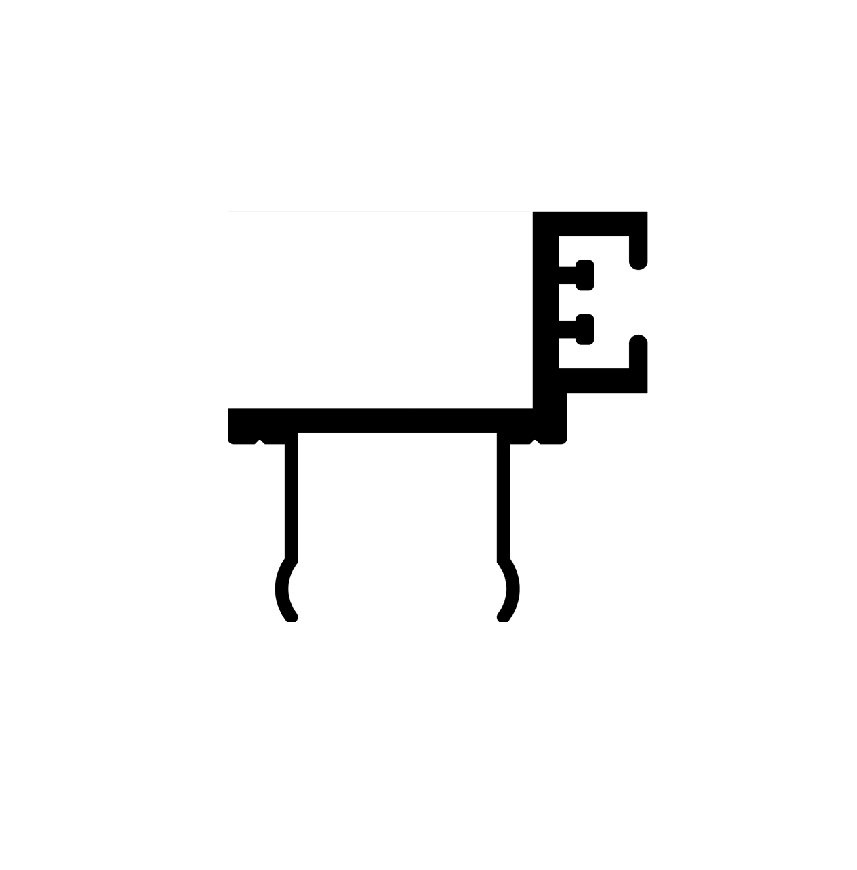

6413DS35	Door Stop Accepts 40mm Thick Door FM, FLM, MAP Mohair 007MB, Bubble seal 007B	6413DS3521 6413DS3527 6413DS3537
64PF	Pocket Filler Accepts FM, MAP	64PF27 64PF37
6413SC	Shadowline Casing Bead Accepts 13mm Plasterboard	6413SC3
6413CB	Casing Bead Accepts 13mm Plasterboard	6413CB27 6413CB37

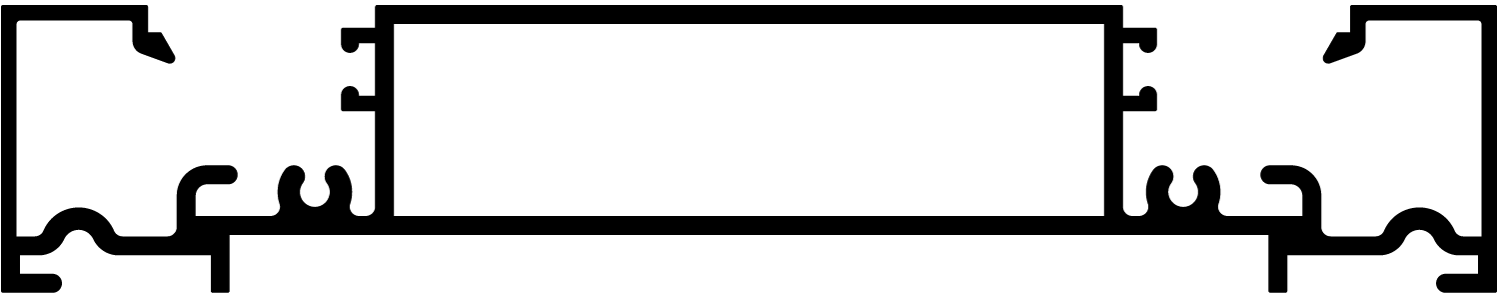

9213DGM 131.6mm x 25mm	Double glazed mullion Accepts FP, MAP 6.38 glass CW2 and P40 10.38 glass CWI and CW1P41 12.38 glass INFW2 one side only	9213DGM27 9213DGM37

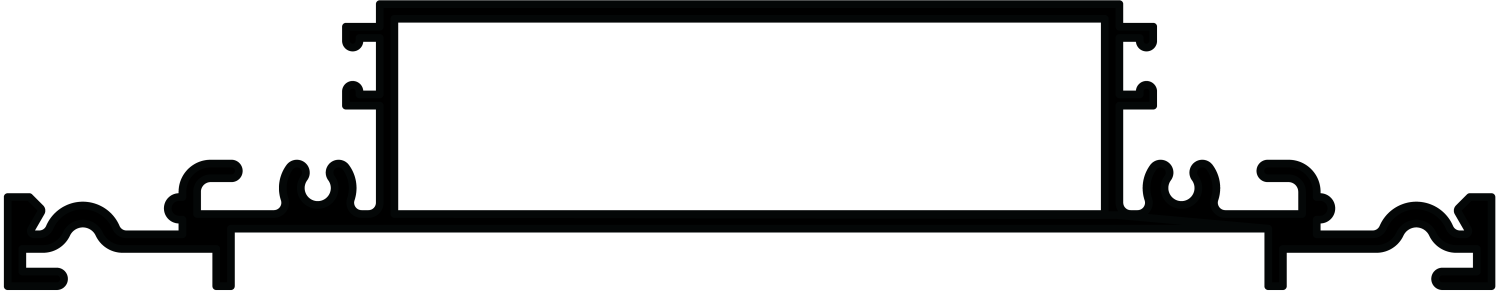

9213DGB 131.6mm x 25mm	Double glazed base Accepts , FP, MAP, 005 6.38 glass CW2 and P40 10.38 glass CWI and CW1P41 12.38 glass INFW2 one side only	9213DGB27 9213DGB37
005 15mm x 20.4mm	Glazing Bead Accepts 003, 004, 6413DGB, 9213DGB	00527 00537 00565

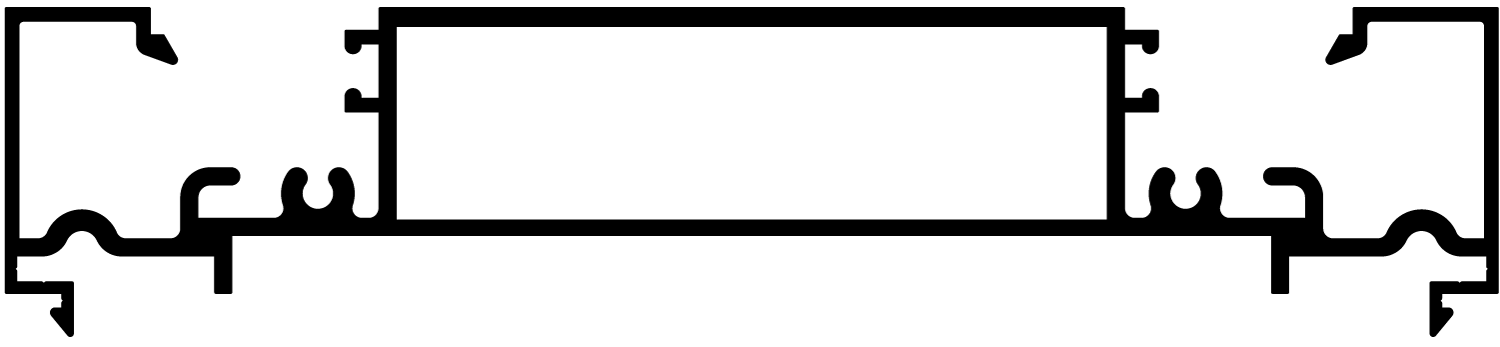

9213DGMAP 131.6mm x 25mm	Double Glazed Mullion Adaptor Plate Accepts 005, FP, MAP 6.38 glass CW2 and P40 10.38 glass CWI and CW1P41 12.38 glass INFW2 one side	9213DGMAP27 9213DGMAP37
